Behringer - MAG EVO 420DE-OTH-BEH-2019-00001

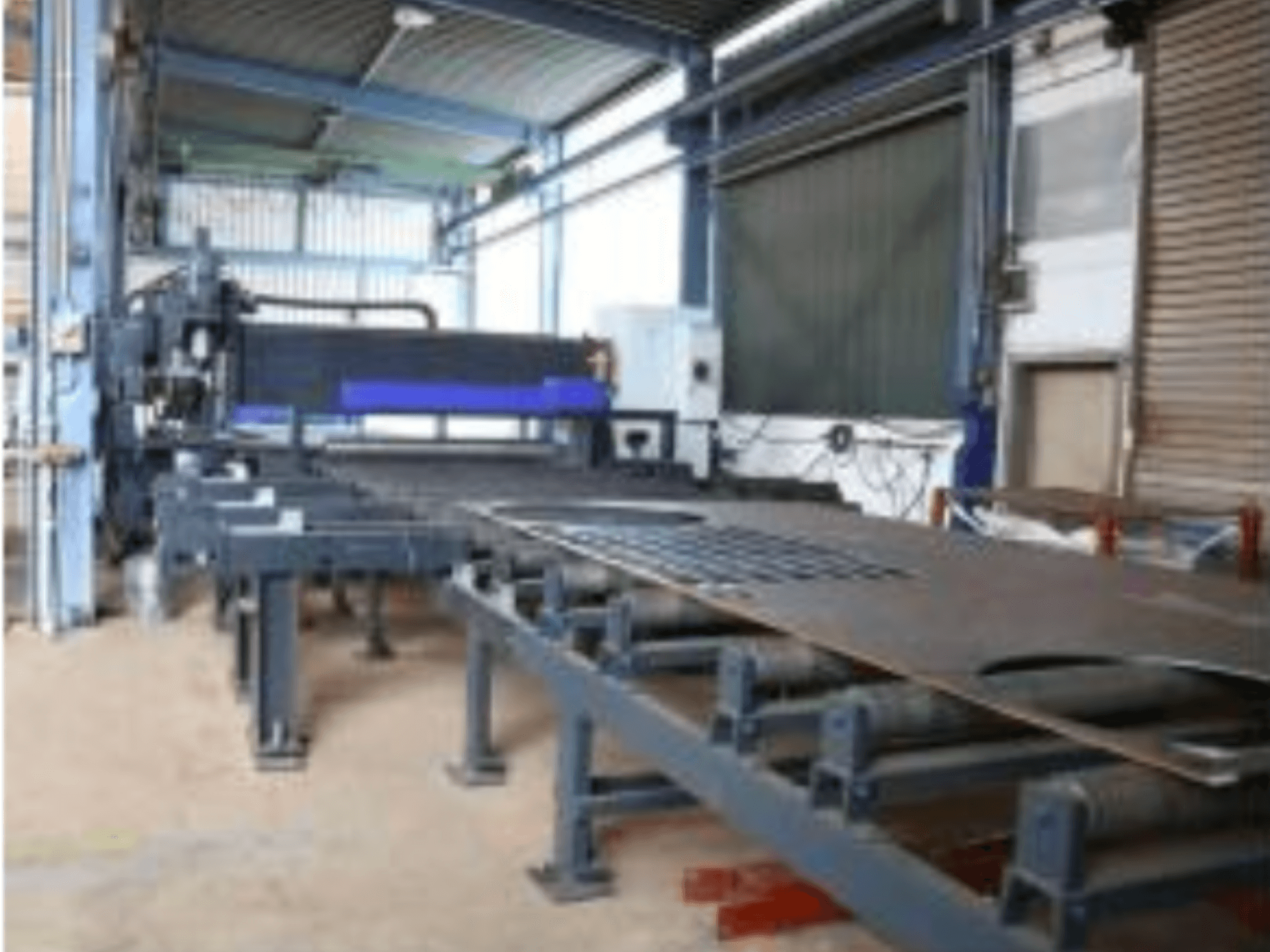

- Infeed System: Roller conveyor for flat steel/plates up to 4000 x 2000 mm with zero-position transverse conveyors, NC feed carriage, and retractable clamps

- Outfeed System: Outfeed roller conveyor with lowerable discharge table and chute into material collection container for small parts

- Drilling Unit Drive Power: 16 kW

- Spindle Speed: 160 to 4000 RPM

- Tool Changer: Automatic turret tool changer with 14 tool positions

- Software Options: Milling, V-scoring marking, and DSTV interface for machining data import

- Plasma Cutting Unit: Kjellberg HiFocus 360i (for material thicknesses up to 50 mm)

- Exhaust System: Large-dimensioned filter unit of older year of manufacture with available piping

- Control & PC: Modern CNC control enabling remote maintenance by Vernet Behringer service department, machine computer including software, and office software license

- Sheet Dimensions: Min. 1500 x 300 mm (750 x 400 mm with restriction), Max. 4000 x 2000 mm

- Min. Finished Part Dimensions: 80 x 80 mm

- Sheet Weight: Max. 2000 kg and 650 kg/m

- Drilling Diameter: 5 to 40 mm

- V-Scoring Marking Depth/Diameter: 5 to 40 mm

- Plasma Cutting Thickness: 5 to 50 mm

- Number of Carriages: 2 clamps - feed carriage, laterally placed

- Number of Clamps: 4 clamps (2 + 2)

- Transverse Conveyors: 3 short-stroke transverse conveyors to align sheets against clamps after loading

- Working Height: 1000 mm
