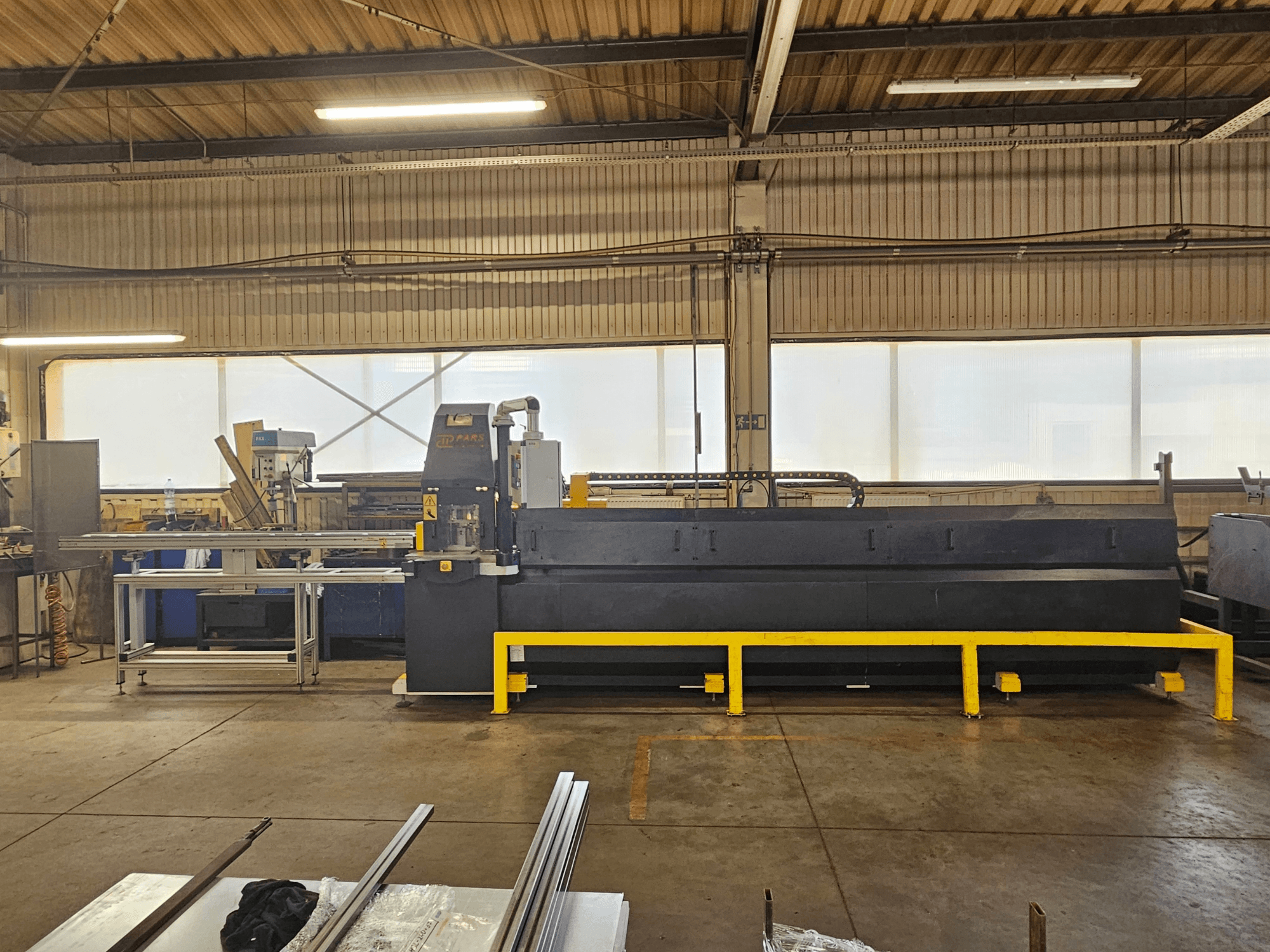

This 3-axis punch press for profiles PARS HMP SIRIUS PLUS -3000/3-L1 was manufactured in 2015. It features a maximum section dimension of 110 x 110 mm and can handle wall thicknesses up to 8 mm. The machine offers a punching speed of 1 hole/s and is capable of punching 2 sections simultaneously with its 2-row design. If you are looking to get high-quality punching capabilities, consider the PARS HMP SIRIUS PLUS -3000/3-L1 punch press for profiles we have for sale. Contact us for further details.
Overview
- brand: PARS
- year: 2015
- MODEL: HMP SIRIUS PLUS -3000/3-L1
- production hours: 2677
- application type: Other Sheet Metal Machinery
- Location: Poland
- machine type: Sheet Metal Machine
- control unit brand: SIEMENS
Technical Information - PARS HMP SIRIUS PLUS -3000/3-L1
Control Unit
- Control Brand: SIEMENS
- Control Model: SIMATIC HMI
Movement
- Number of Axes: 3
Additional Information
Punching speed: 1 hole/s (including shift to next position)
Max. section dimensions: 110 x 110 mm
Wall thickness: up to 8 mm
Shear cylinder force: 17 t / 30 t
Section length: 3 m
Number of punching axes: 1–6 (holes in X–Y–Z system)
Number of punching rows: 1–2 (2-row machine punches 2 sections simultaneously)
Main axis drive: linear motor or rotary servo motor
Expanding adapter for internal section support (deformation-free punching)
Automatic mechanical centering of the section at the shear point
Micro-lubrication only at the shear point
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
