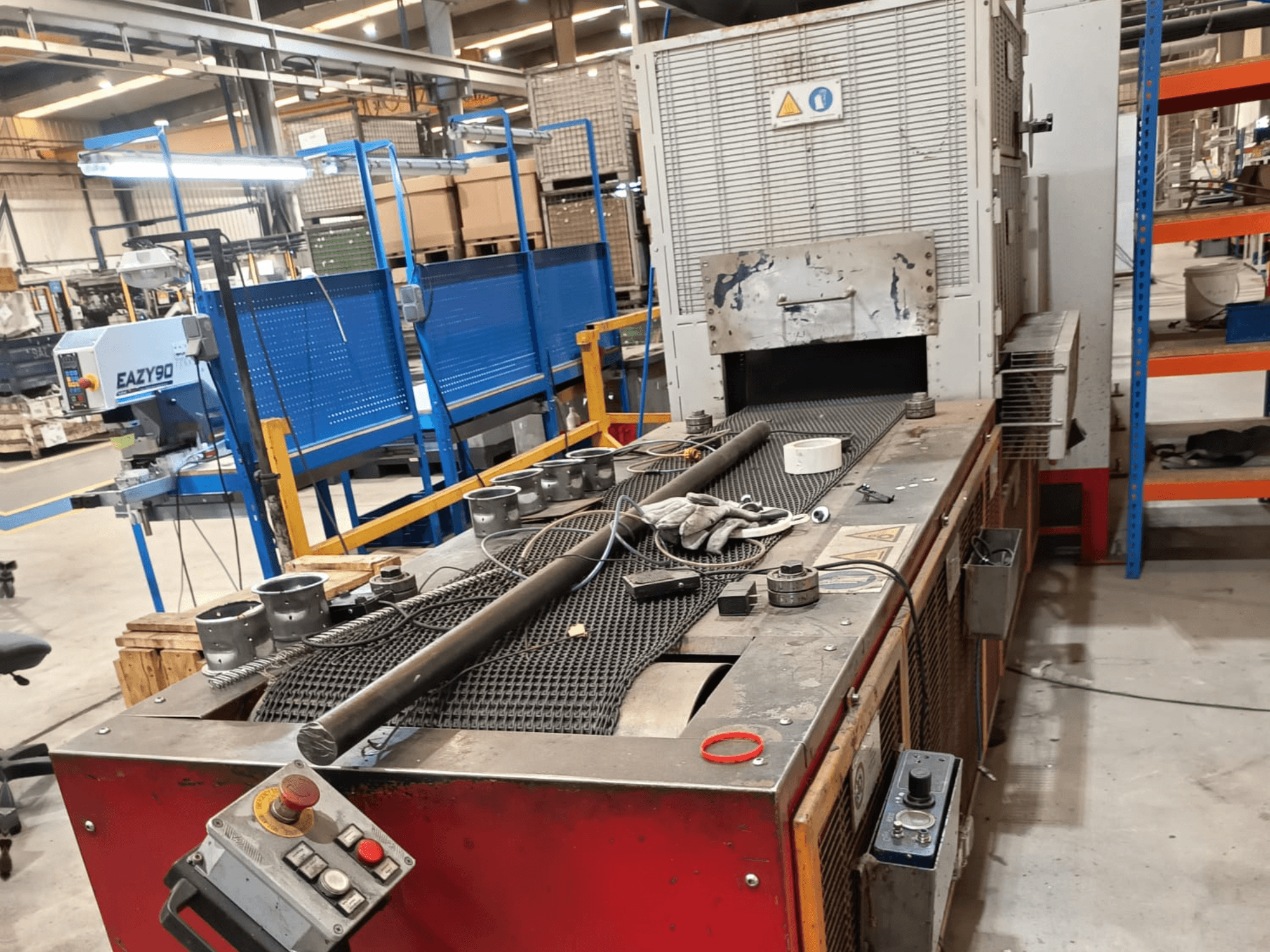

Brazing line manufactured in 2018. This SCAME BRAZING LINE 50-20-350-GI-DR features a maximum temperature of 1150 °C and operates with an electric power source of 85 kW. The continuous longitudinal conveyor system efficiently moves parts along a passage chamber measuring 50 x 20 x 350 cm. If you are looking to get high-quality brazing capabilities, consider the SCAME BRAZING LINE 50-20-350-GI-DR machine we have for sale. Contact us for further details.
Overview
- brand: SCAME
- year: 2018
- MODEL: BRAZING LINE 50-20-350-GI-DR
- application type: Other Sheet Metal Machinery
- Location: Spain
- machine type: Sheet Metal Machine
Additional Information
Power source: Electric
Connected thermal load: 85 kW
Supply voltage: 3 x 400 V @ 50 Hz
Maximum temperature: 1150 °C
Operating temperature: 1120 °C
Gas pressure: 30–50 mbar
Atmosphere used: Endothermic Gas (ENDO)
Production capacity: Variable (kg/h)
Passage dimensions (W x H x L): 50 × 20 × 350 cm
Drive & motion system: Continuous longitudinal conveyor system moving parts along the 350 cm passage chamber at controlled speed (no conventional CNC cartesian axes)
