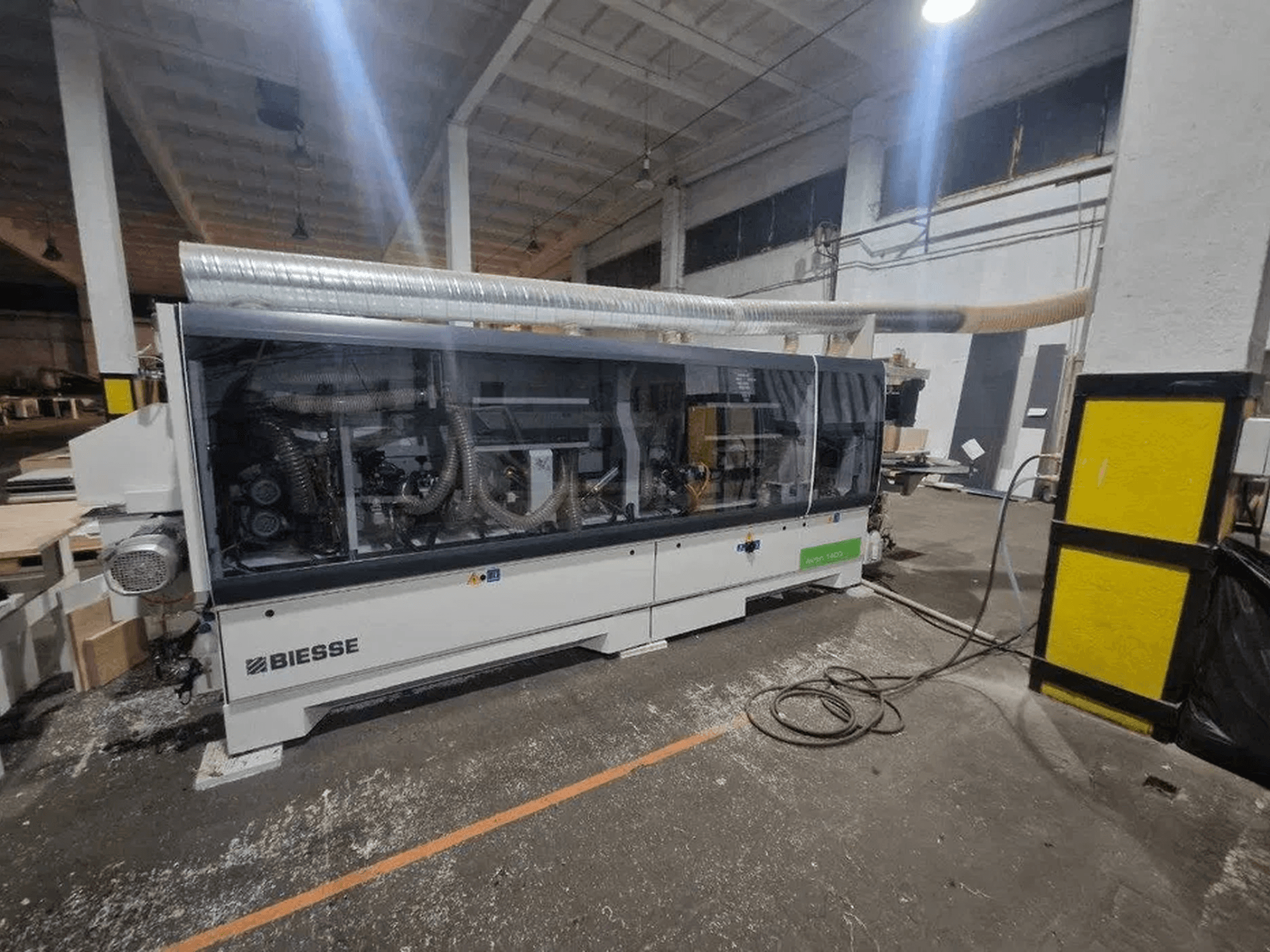

BIESSE - Akron 1440 APL-EDG-BIE-2023-00001

edge banding machine
Brand: Biesse
Type: Akron 1440 A
year of manufacture: 2023

Technical data:

• Panel height: 10–60 mm

• Edge height: 14–64 mm

• Roll edge thickness: 0.4–3 mm

• Strip edge thickness: 0.4–12 mm

• Panel overhang beyond the chain: 25 mm

• Panel length: 140–3200 mm

• Minimum panel width (with panel length 140 mm): 85 mm

• Minimum panel width (with panel length 250 mm): 50 mm

• Chain feed speed: 12 m/min

• Distance between panels: 450–650 mm

• NC axis package for automatic machine setup

• Return conveyor installation kit

• Notes:

  • Minimum panel height 8 mm with max edge thickness 1.5 mm.

  • Values marked “depending on the selected working units.” Max permissible feed speed 12 m/min.

Aggregates/working units:

• Anti-adhesive spraying unit ADZ02


• Pre-milling unit RT02

  • Two high-frequency motors, each 1.8 kW, 12,000 rpm


• Gluing unit VC-511

  • Processes EVA and PUR granulated adhesives

  • Adhesive container capacity: 1.5 kg


• Pressure zone

  • 1 driven pressure roller, Ø 100 mm, independently adjustable pressure

  • 2nd and 3rd non-driven pressure rollers, Ø 60 mm, anti-adhesive coating, opposing conical, pneumatically adjustable


• End trimming unit IT-70-S

  • Two high-frequency motors, each 0.8 kW, 12,000 rpm

  • Straight (0°) or inclined trimming, adjustable 0°–15°

  • Antistatic/cooling liquid spraying unit for end trimming


• Fine milling unit RF02

  • Two high-frequency motors, each 0.65 kW, 12,000 rpm


• Corner rounding unit

  • Two high-frequency motors, each 0.65 kW, 12,000 rpm

  • For straight and postforming/softforming profiles on 90° and 180° corners


• Edge scraping unit RB02

  • Manual switching between two processing profiles


• Glue joint scraping unit RC02


• Buffing unit SZ02

  • Two motors, each 0.37 kW, 2,800 rpm


• Hot air blower unit PH-501

  • Power: 2 kW; continuously adjustable temperature control
