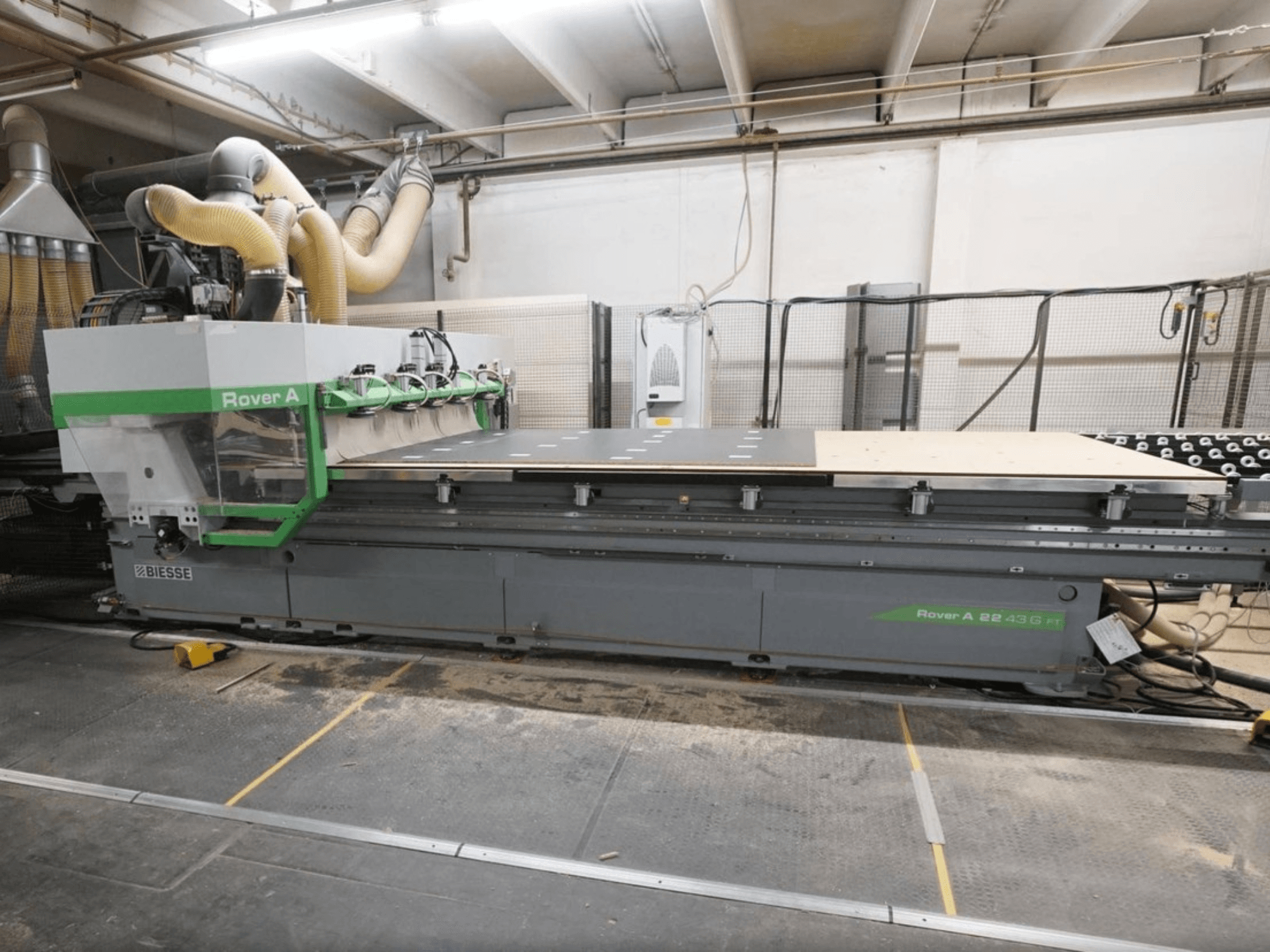

BIESSE - Rover A FT 2243 with WINSTORE 3D K1 Automatic Panel Storage SystemDE-CNC-BIE-2014-00001

Technical Data

• Working Table Dimensions: 4,300 × 2,205 mm

• Maximum X-Axis Speed: 80 m/min

• Maximum Y-Axis Speed: 60 m/min

• Maximum Z-Axis Speed: 20 m/min

• Z-Axis Travel (3-/4-Axis Version): 325 mm

• Z-Axis Travel (5-Axis Version): 430 mm

• Maximum Workpiece Clearance in Z: 170 mm

• Maximum Workpiece Clearance with Sweeping Arm: 120 mm

• X-/Y-Axis Drive: Rack and Pinion

• Z-Axis Drive: Ball Screw

• Axis Guides: Linear Guides with Recirculating Ball Bearing Blocks

• Vacuum Pump Capacity: 300 m³/h at 50 Hz

• Vacuum System: 20 Independent CNC-Controlled Zones

• Working Fields: 2

• Clamping Areas: 2 in X

• Pneumatic Stops: 16

• Grid Table Pitch: 30 mm

• Vacuum Module Dimensions: 132 × 146 mm

• Vacuum Module Height: 29 mm

• Vacuum Module Rotation Increment: 15°

• Air Cushion Table Blower: Yes

• Maximum Single Panel Thickness: 50 mm

• Minimum Single Panel Thickness: 9 mm

• Maximum Multiple-Panel Loading Thickness: 20 mm

• Maximum Multiple-Panel Unloading Thickness: 60 mm

• Protective Board Thickness: 8–25 mm

• Maximum Panel Weight: 200 kg

• Minimum Loadable Panel Size in Y: 800 mm

• Unloading Conveyor Length: 4,800 mm

• Maximum Unloadable Panel Length: 4,300 mm

5-Axis Machining Unit

• Number of Axes: 5 Interpolating Axes

• Tool Interface: HSK F63

• Cooling: Liquid-Cooled

• Power S1: 11 kW / 15 HP at 12,000 rpm

• Power S6: 13 kW / 17.4 HP at 12,000 rpm

• Maximum Spindle Speed: 20,000 rpm

• C-Axis Rotation: 360° Continuous

• C-Axis Speed: 12.4 rpm

• B-Axis Positioning Range: ±100°

• B-Axis Speed: 12.4 rpm

• Spindle Bearings: Ceramic

• Drive Motor: Brushless, Digitally Controlled

• Gearbox: Harmonic Reduction Gear

• Lubrication: Lifetime Lubrication

Drilling Head

• Type: BH 26 2L

• Maximum Number of Tools: 26

• Vertical Drilling Spindles: 16

• Vertical Spindle Arrangement: 8 in X / 8 in Y

• Vertical Spindle Pitch: 32 mm

• Horizontal Drilling Spindles: 4 with Double Output

• Horizontal Spindle Axis Distance: 32 mm

• Grooving Saws: 2

• Grooving Saw Directions: X / Y

• Grooving Saw Diameter: 120 mm

• Maximum Grooving Depth: 25 mm

• Motor Power: 1.7 kW at 2,800 rpm / 3 kW at 6,000 rpm

• Maximum Drilling Speed: 6,000 rpm

Tool Magazine

• Type: Turret Tool Magazine

• Capacity: 16 Tools

• Tool Position Spacing: 114 mm

• Maximum Tool Diameter with Full Magazine: 110 mm

• Maximum Individual Tool Weight: 7.5 kg

• Maximum Total Tool Weight: 55 kg

Automatic Loading / Unloading

• Loading Direction: Front

• Material Flow: Right to Left

• Loading / Unloading System: Type B

• Suction Cups: 5

• Automatic Loading Capacity: Up to 3 Panels

• Sweeping Arm: Yes

• Automatic Table Cleaning: Yes

• Loading Table: Automatic X/Y Alignment

• Unloading Conveyor: Motorized

• Conveyor Control: CNC-Controlled

• Conveyor End Detection: Photocell

WINSTORE 3D

• System: WINSTORE 3D K1

• System Length: 16,000 mm

• Beam Length: 8,000 mm

• Additional Modules: 3,000 / 6,000 / 8,000 mm

• Maximum Suction Frame Length: 5,200 mm

• Cross Conveyors: Belt Type, 5,200 mm

• Panel Handling: Raw and Thin Panels

• Panel Weight Detection: Load Cell

• Minimum Panel Width Handling Option: 450 mm
