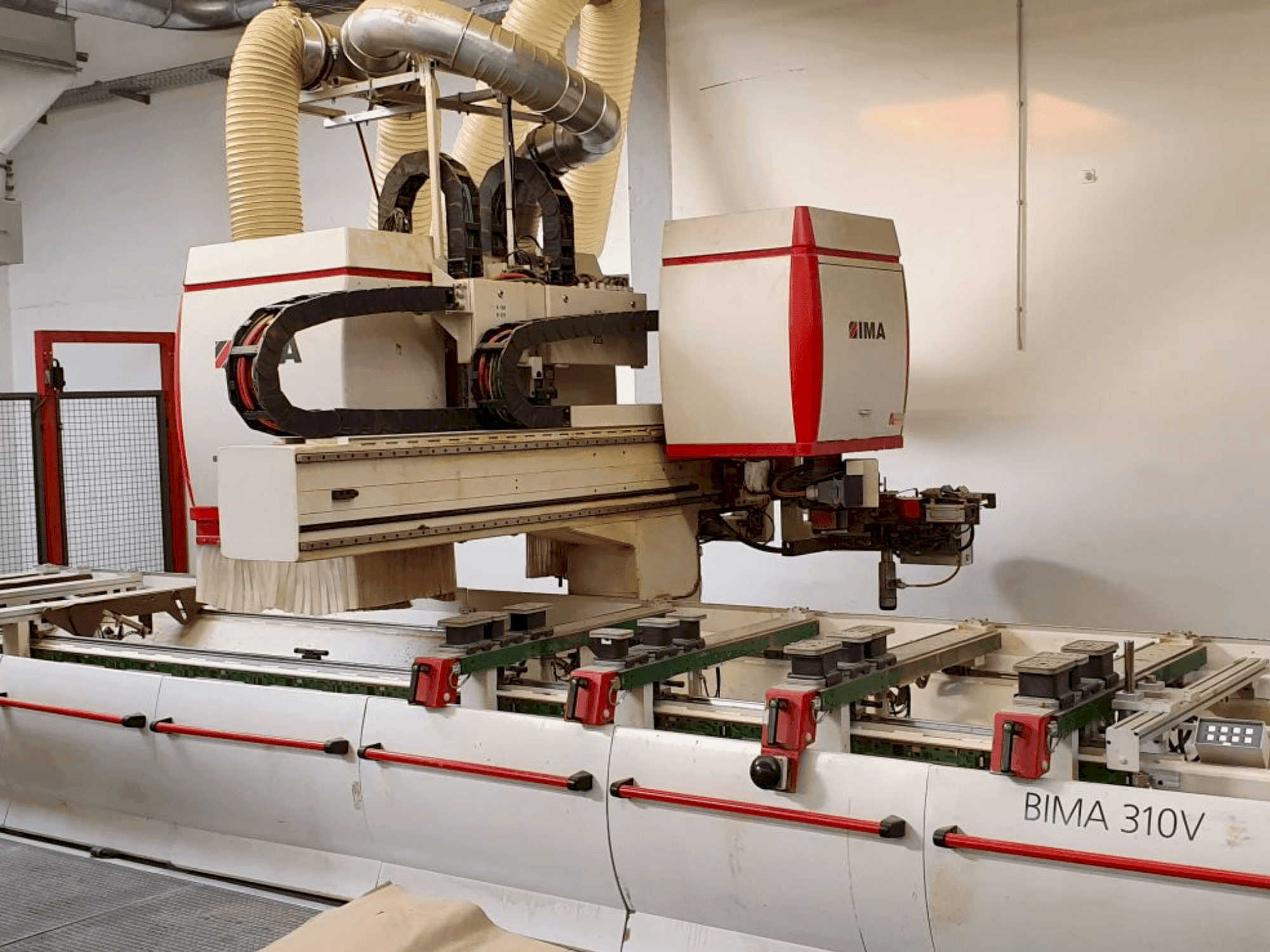

Front view of IMA BIMA 310V 120/600  machine

IMA - BIMA 310V 120/600DE-WOO-IMA-2004-00001

58,500 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

Click to chat on WhatsApp
Show in original language

This woodworking machine was manufactured in 2004. It features a robust 12 kW main spindle with a programmable speed range of 1500-24000 rpm and a tool holder HSK F63. The machine table includes 6 support arms and sets of suction plates, adjustable for various workpiece sizes. Additionally, it boasts a 100 m/min rapid traverse on the X-axis and an 18-fold tool change magazine. For more information about this woodworking machine, please reach out to us.


  • brand: IMA
  • year: 2004
  • MODEL: BIMA 310V 120/600
  • application type: Wood Working
  • Location: Germany
  • machine type: Wood

Technical Information - IMA BIMA 310V 120/600

Main drive

  • Spindle speed range: 1500 - 24000 1/MIN
  • Spindle motor power: 12 kW
  • Tool taper: HSK F63 = 38 mm


  • X-AXIS Movement: 6000 mm
  • X-AXIS Rapid traverse: 100 m/min
  • Y-AXIS Movement: 1300 mm
  • Z-AXIS Movement: 100 mm
  • Z-AXIS Rapid traverse: 25 m/min
  • C-AXIS Movement: 360º MM


  • Height adjustment: 950 mm


  • Slots in storage: 18
  • Max weight: 6 kg
  • Max tool diameter: 100 mm
  • Max tool length: 150 mm


  • Main electronic connection: 3/N/PE, 400/230 V, 50 Hz

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Pull-in force: 11000 n
      • - High-speed and precision machining with rapid traverse rates.
      • - Versatile tool handling with an 18-fold tool change magazine and programmable spindle.
      • - Efficient cooling and lubrication systems enhance spindle longevity and performance.
      • - Central connection for extraction
      • - Vacuum pump: 100 m3/h
      • - Tool coding: place-coded
      • - Air pressure: 6 bar
      • - Machine table:6 support arms, adjustable in x-direction stops: rear and middle, all program-controlled suction plates: 6 sets, total of 12 suction plates alternating field area details for pendulum machining
      • - Spindle cooling: water cooling, spindle lubrication: unique factory grease lubrication
    • Qualitative Machine Benefits:
      • - Precision in machining with programmable spindle speeds and directions.
      • - Enhanced flexibility with adjustable machine table and support arms for various workpiece sizes.
      • - Drive: frequency-controlled three-phase motor
      • - Direction of rotation: right/left, programmable
      • - Tool feed: automatic
      • - Max. Clamping height from upper edge of suction plate z1: 100 mm
      • - Max. Workpiece thickness z2: depends on equipment/application

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
