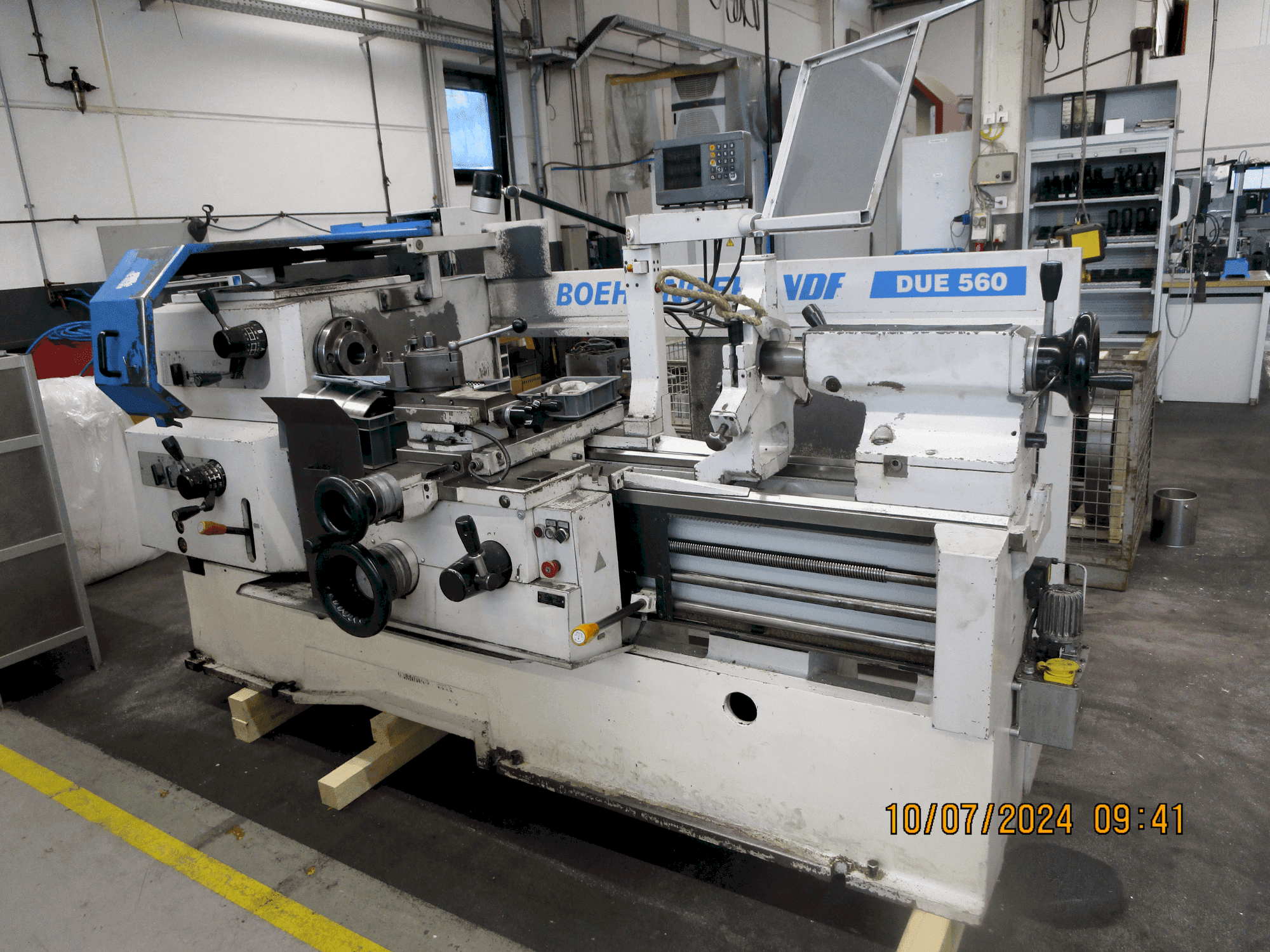

Front view of BOEHRINGER VDF DUE 560 machine
Front view of BOEHRINGER VDF DUE 560 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

BOEHRINGER - VDF DUE 560DE-TUR-BOE-2004-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This BOEHRINGER VDF DUE 560 lathe was manufactured in 2004. It features a center height of 280mm, a maximum circulation diameter over bed of 570mm, and a bed width of 360mm. The spindle bore diameter is 62mm, and it offers a robust drive power of 15kW with 24 speed settings ranging from 11.2 to 2240 rpm. A great opportunity to buy this BOEHRINGER VDF DUE 560 lathe. Reach out for more information.

Overview

  • brand: BOEHRINGER
  • year: 2004
  • MODEL: VDF DUE 560
  • application type: Turning
  • Location: Germany
  • machine type: Horizontal Turning Machine

Technical Information - BOEHRINGER VDF DUE 560

Movement

  • Number of Axes: 2

Technical Specification

  • Spindle Power: 15 kW
  • Spindle Speed: 2240 RPM

Additional Information

Additional equipment

  • chuck not included
  • Machine documentation is complete.

Machine Benefits

Qualitative Machine Benefits

  • Diameter of spindle bore: 62mm
  • 24 speeds over wheels
  • Step change: 1. 25
  • Max. Torque: 2000 nm
  • Center length approx 1200 mm

Technical Machine Benefits

  • Center height above flat track: 280mm
  • Bed width: 360mm
  • Machine includes a tailstock and setting stock / diameter of the tailstock quill: 80mm
  • Quill stroke: 190mm
  • Bed slide guide length: 520mm
  • Face slide width/travel: 225/345
  • Top support width/travel: 140/125
  • Setting sticks consisting of guide diameter: 20-315 with guide diameter: 25-160
  • Main spindle spindle head according to din 55027 size: 8
  • Spindle diameter in front bearing: 100mm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
