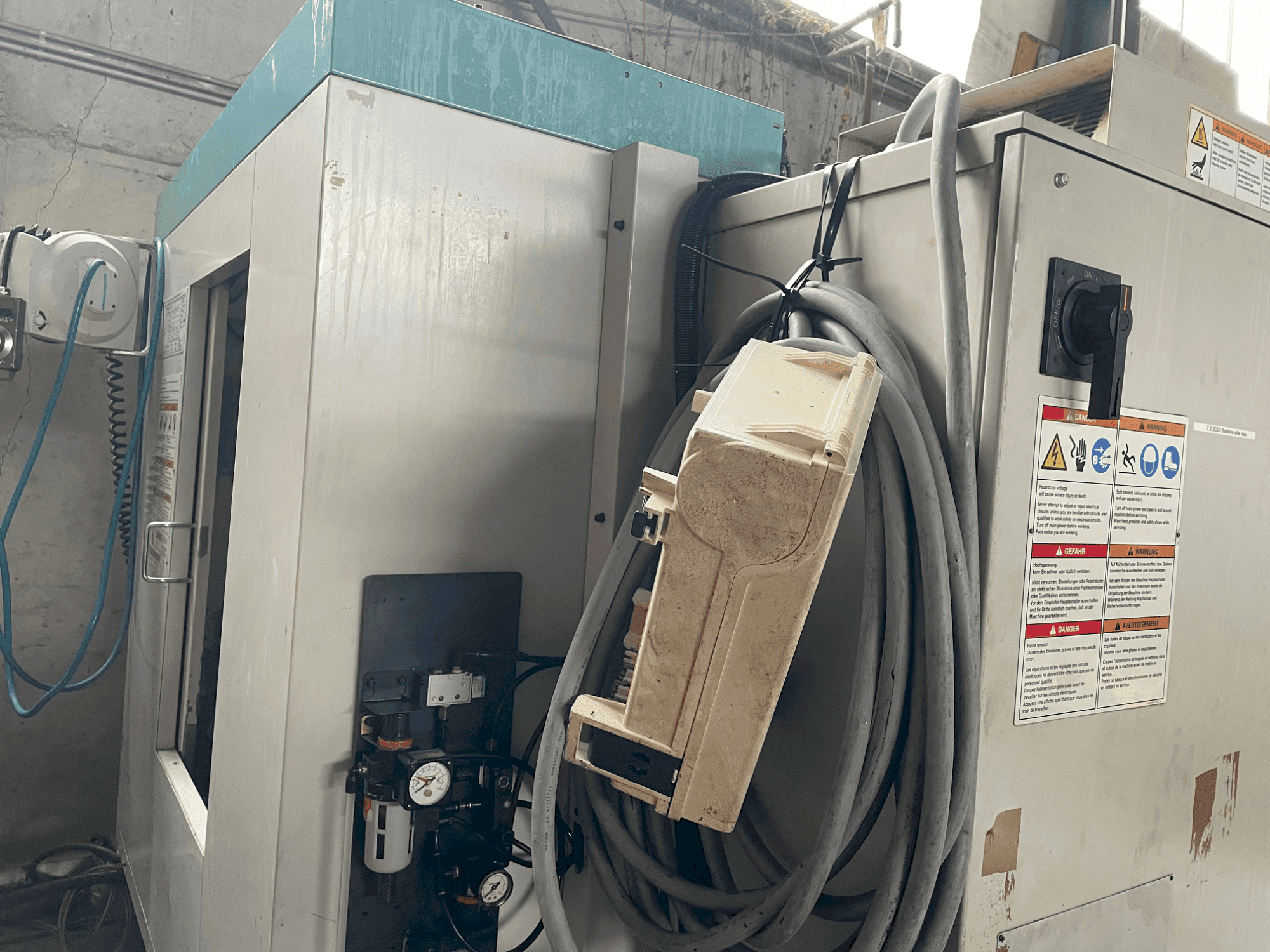

Front view of Brother TC22A  (1999)  machine

Brother - TC22AAT-MIL-BRO-1999-00001

17,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

Click to chat on WhatsApp
Show in original language

This vertical machining center was manufactured in 1999. The BROTHER TC 22A features a spindle speed of up to 20,000 rpm and rapid traverse rates of 56,000 mm/min, enhancing its efficiency. The machine can handle a maximum load of 200 kg, and its compact dimensions require less floor space. Considering the BROTHER TC 22A vertical machining center we have for sale, reach out for further details regarding this vertical machining center.


  • brand: Brother
  • year: 1999
  • MODEL: TC22A
  • application type: Milling
  • Location: Austria
  • machine type: Machining centers (vertical)
  • availability: Immediately

Technical Information - Brother TC22A

General Data

  • Measurements height: 2274 mm
  • Machine weight: 2250 kg

Main drive

  • Number of spindles: 1
  • Spindle speed range: 12-20000 1/MIN


  • X-AXIS Movement: 500mm
  • X-AXIS Rapid traverse: 56.000 mm/min
  • Y-AXIS Movement: 400mm
  • Y-AXIS Rapid traverse: 56.000 mm/min
  • Z-AXIS Movement: 410mm
  • Z-AXIS Rapid traverse: 56.000 mm/min


  • Table load: 200kg


  • Slots in storage: 18
  • Max tool diameter: 55 mm
  • Max tool length: 200 mm
  • Type of tool holder: HSK-A40

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Distance from table top surface to spindle nose: 200-610mm
      • - Distance from column front to axis of spindle: 294mm
      • - Table working surface: 650x400mm
      • - Required floor space: 1671 x 2846 mm
      • - Tool changing time: 0,7sec
      • - Cutting feedrate: 5-20. 000 mm/min
      • - Manual feedrate: 50-40. 000 mm/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance
