➤ Used Bystronic ByAutonom 4020 For Sale | gindumac.com

Show in original language

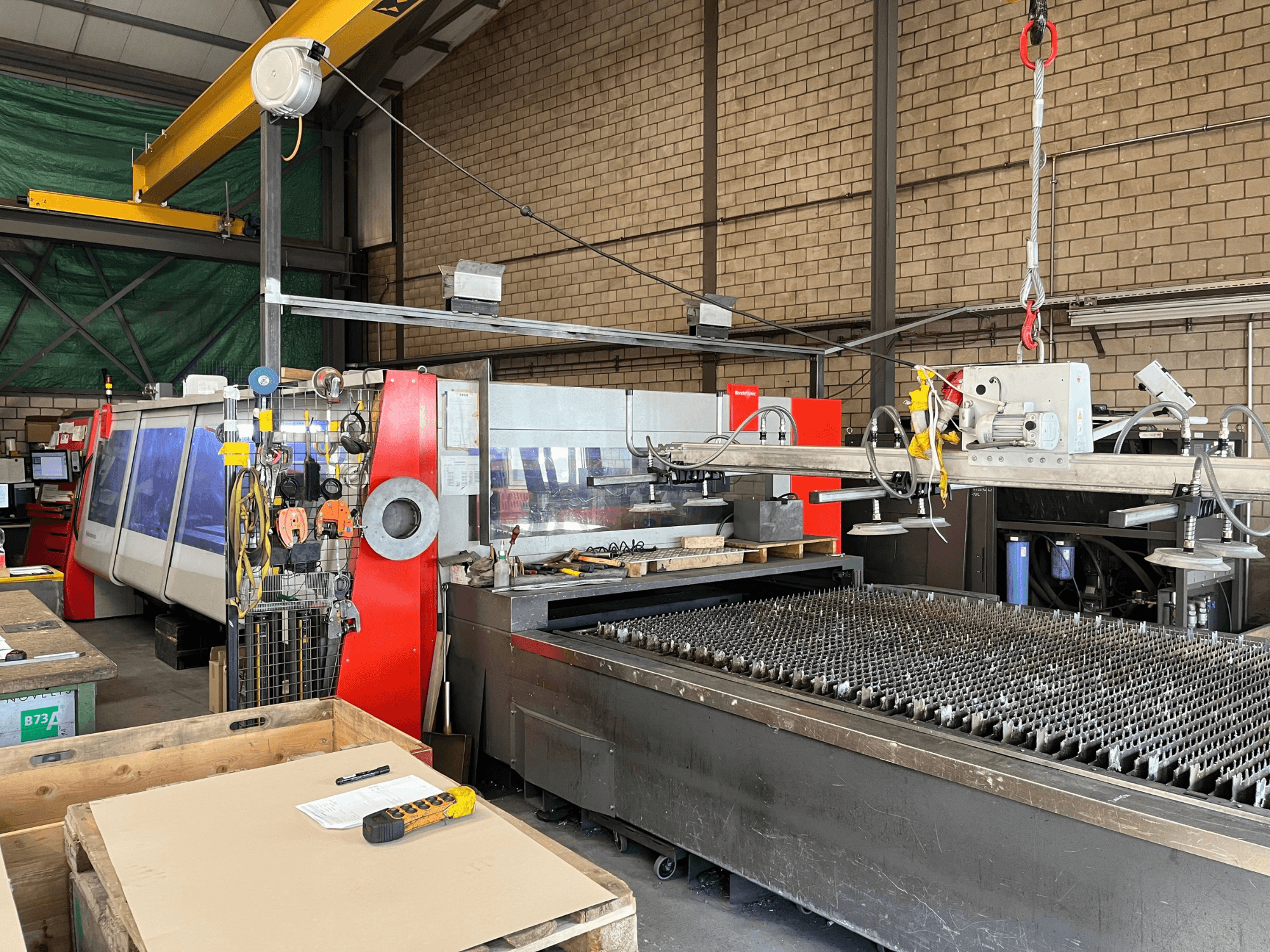

CO2 laser cutting machine manufactured in 2014. This Bystronic ByAutonom 4020 features a powerful ByLaser 6000 with a cutting range of 4090 mm x 2060 mm x 80 mm. It has a maximum workpiece weight of 1580 kg and can handle sheet thicknesses of up to 25 mm for steel and stainless steel. If you are looking to get high-quality cutting capabilities, consider the Bystronic ByAutonom 4020 machine we have for sale. Contact us for further details.

Overview

brand: Bystronic
year: 2014
MODEL: ByAutonom 4020
production hours: 35000
application type: Cutting
Location: Germany
machine type: CO2 Laser Cutting Machine

Technical Information - Bystronic ByAutonom 4020

Dimensions

Machine Height: 2400 mm
Machine Length: 15000 mm
Machine Weight: 24500 kg
Machine Width: 7700 mm

Movement

Number of Axes: 3
X-axis Travel: 4090 mm

Technical Specification

Laser Power: 6 kW

Additional Information

- Cutting Range X-axis: 4,090 mm
- Nominal Sheet Size X-axis: 4,000 mm
- Cutting Range Y-axis: 2,060 mm
- Cutting Range Z-axis: 80 mm
- Max. Positioning Speed Parallel X/Y: 120 m/min
- Max. Positioning Speed Simultaneous: 169 m/min
- Max. Axis Acceleration: 30 m/s²
- Cutting Hours: Approx. 14,500 hours
- Overall System Length (L): Approx. 15,000 mm
- Overall System Width (W): Approx. 7,700 mm
- Overall System Height (H): Approx. 2,400 mm
- Max. Workpiece Weight: 1,580 kg
- Max. Sheet Thickness Steel: 25 mm
- Max. Sheet Thickness Stainless Steel: 25 mm
- Max. Sheet Thickness Aluminium: 15 mm
- Wavelength: 10.6 µm
- Laser Source Weight: 2,050 kg
- Laser Source Dimensions (L x W x H): 2,850 mm x 1,150 mm x 2,100 mm
- Table Exchange Time: 35 s
- Cutting Lenses / Focal Lengths: 5", 7.5", 9"
- Total Power Consumption (with extraction, chiller): 78 kW
- Electrical Connection Machine: 3x400V / 3x480V, 50/60 Hz, Max. Power 73 kVA (125 AT)
- Chiller Unit: ef cooling WKL560 (Refrigerant R407c, 18 kg, 3x400/480V, 40 kVA, Weight 1,050 kg, Dimensions 2,550 x 1,000 x 2,000 mm)
- Laser Gas (Premix): He/N2/CO2, Normalmix consumption 12 Nl/h, Fastmix consumption 120 Nl/h
- Cutting Gas: Oxygen (12 bar) / Nitrogen (25 bar)
- Compressed Air: 9 bar dynamic, max. consumption 4.5 Nm³/h (machine) + 3 Nm³/h (dust collector)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
