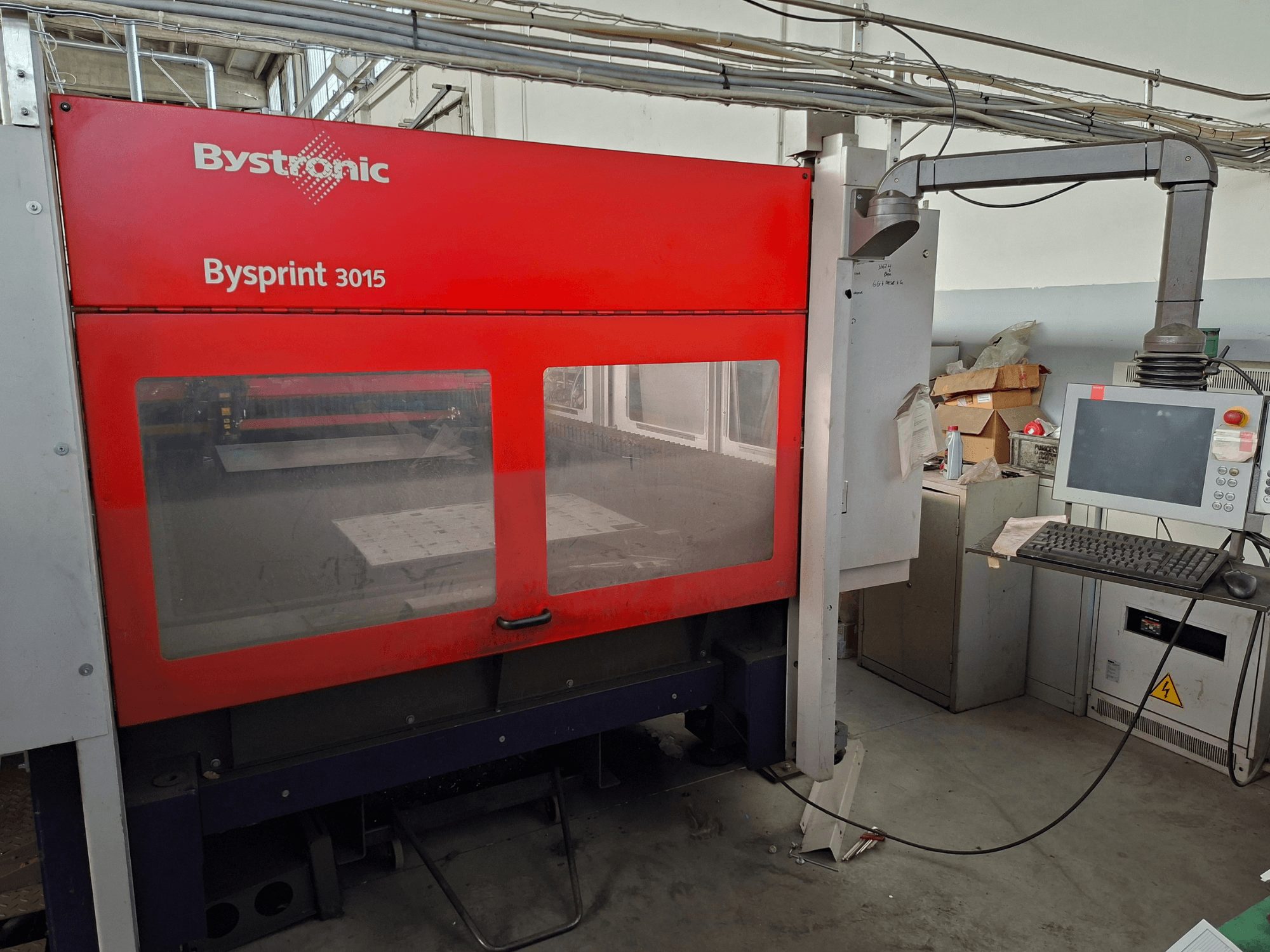

This 3-axis Bystronic Bysprint 3015 CO₂ laser cutting machine was manufactured in 2006. It features a working area of 3,000 × 1,500 mm and includes an automatic table changer and two cutting heads. The machine has a maximum cutting capacity of 12 mm for stainless steel and 20 mm for mild steel. If you are looking to get high-quality cutting capabilities, consider the Bystronic Bysprint 3015 machine we have for sale. Contact us for further details.
Overview
- brand: Bystronic
- year: 2006
- MODEL: Bysprint 3015
- application type: Cutting
- Location: Italy
- machine type: CO2 Laser Cutting Machine
Technical Information - Bystronic Bysprint 3015
Movement
- Number of Axes: 3
- X-axis Travel: 3000 mm
- Y-axis Travel: 1500 mm
Technical Specification
- Laser Power: 3 kW
Additional Information
Working area: 3,000 × 1,500 mm
Cutting heads: 2 (5" and 7.5")
Features/Options: Cut Control; Adaptive mirror bypass; MCS; STL
Resonator: Included
Cutting-head cooling system: Included
Original turbine operating hours: Approx. 7,000 hours
Maximum cutting capacity:
Mild steel: Up to 20 mm (continuous operation)
Stainless steel: Up to 12 mm
Aluminium: Up to 6 mm
Additional equipment
Automatic table changing system
Fume extraction system
Machine manuals
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
