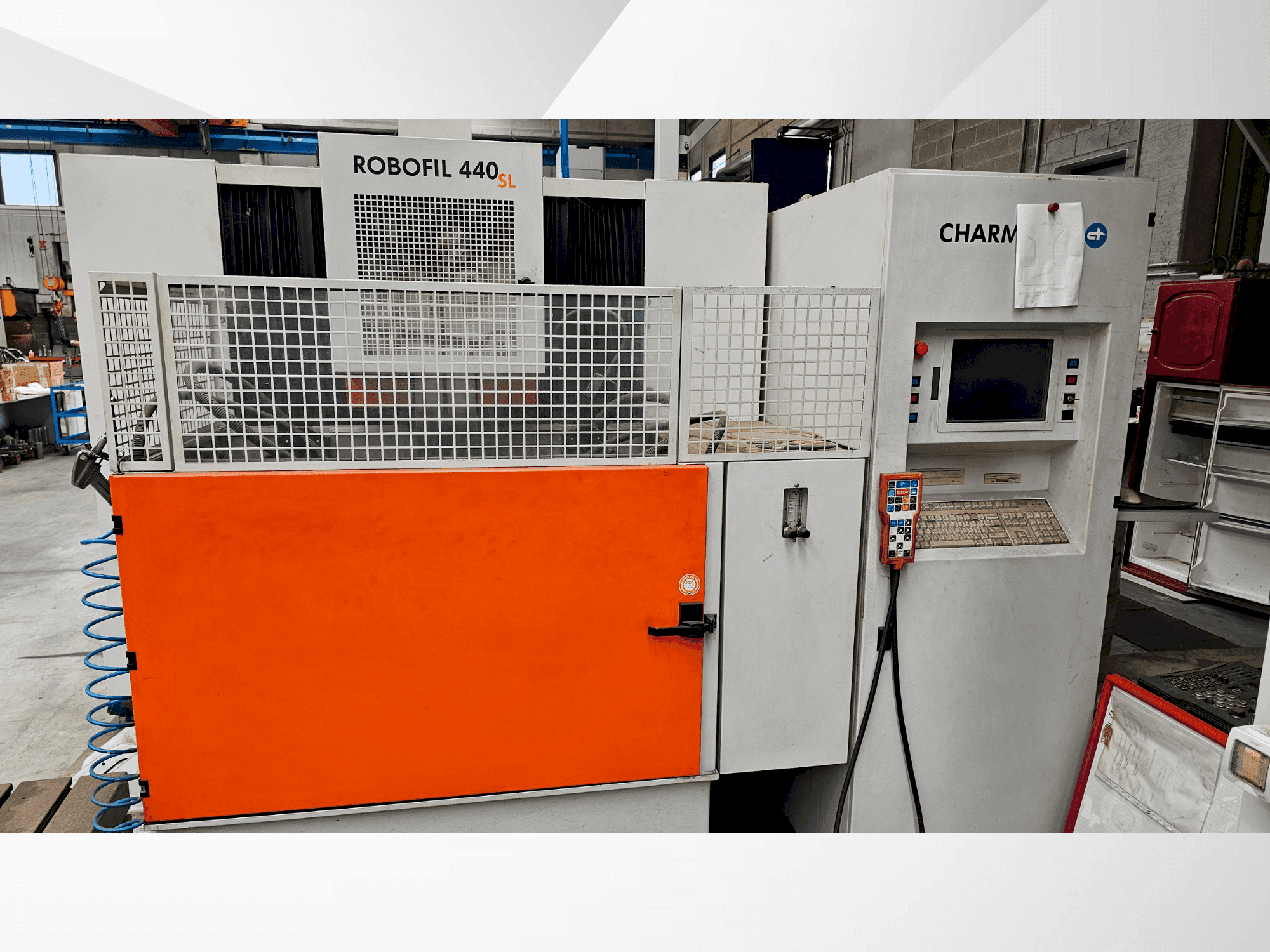

This 3-axis CHARMILLES Robofil 440SL was manufactured in 2006. A robust wire EDM machine, it features a large processing area with dimensions of 1200 x 700 x 400 mm and supports part weights up to 1500 kg. Its table measures 900 x 600 mm, and the X, Y, Z axes are 550 mm, 350 mm, and 400 mm respectively. If you are looking to get high-quality EDM capabilities, consider the CHARMILLES Robofil 440SL machine we have for sale. Contact us for more information.
Overview
- brand: CHARMILLES
- year: 2006
- MODEL: Robofil 440SL
- application type: EDM
- Location: Italy
- machine type: Wire EDM Machine
- availability: Immediately
Technical Information - CHARMILLES Robofil 440SL
General Data
- Measurements width: 2810 mm
- Measurements depth: 2600 mm
- Measurements height: 2240 mm
- Machine weight: 3300 kg
Movement
- X-AXIS Movement: 550 MM
- Y-AXIS Movement: 350 MM
- Z-AXIS Movement: 400 MM
Table
- Outer length: 900 mm
- Outer width: 600 mm
Additional Information
- Technical Machine Benefits:
- - Workpiece: max dimensions of the part: 1200 x 700 x 400 / max weight of the part: 1500 kg
- - Max volume: 1200 litres
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
