➤ Used CHARMILLES Roboform 35 For Sale | gindumac.com

Show in original language

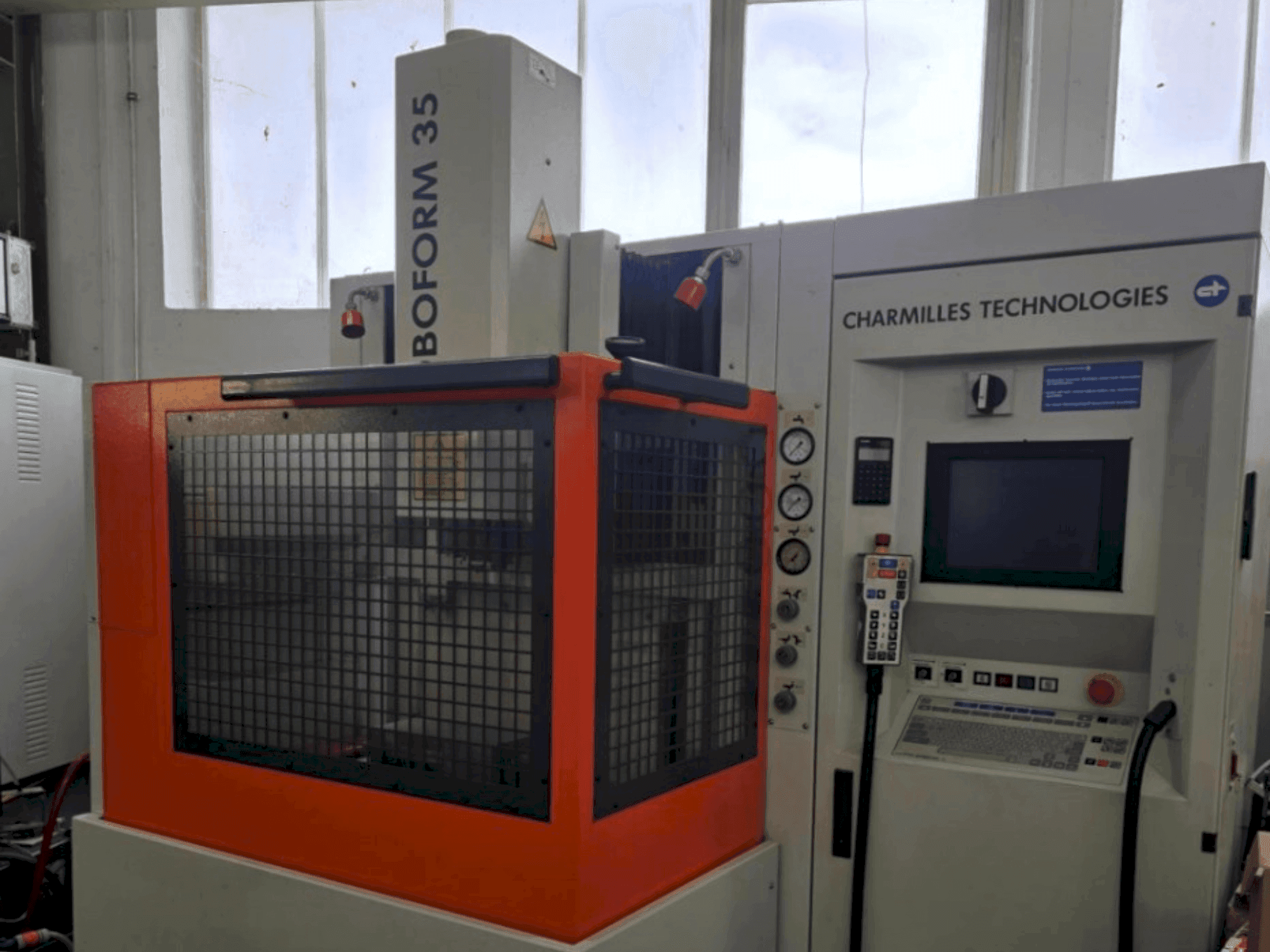

This 3-axis CHARMILLES Roboform 35 die-sinking EDM machine was manufactured in 2000. It features a stabilized cast iron machine bed, a C-axis with 360° rotation, and a maximum electrode weight of 50 kg. The machine offers X, Y, Z travel paths of 350 mm, 250 mm, and 300 mm respectively. Ideal for precision mold making with its robust construction and reliable performance. Contact us for more information about this machine.

Overview

brand: CHARMILLES
year: 2000
MODEL: Roboform 35
application type: EDM
Location: Germany
machine type: Die-Sinking EDM Machine

Technical Information - CHARMILLES Roboform 35

General Data

Measurements width: 1900 mm
Measurements depth: 2350 mm
Measurements height: 1680 mm
Machine weight: 2500 kg

Main drive

Number of axis: 3

Movement

X-AXIS Movement: 350 mm
Y-AXIS Movement: 250 mm
Z-AXIS Movement: 300 mm

Workpiece

Workpiece weight: 500 kg

Table

Number of tslots: 3

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table dimensions (l x w): 500 x 400 mm
- - T-slots: dimensions: 12 mm
- - T-slots: distance between slots: 125 mm
- - C: 360°
- - C-axis speed: 100 rpm
- - Mains frequency: 50 hz or 60 hz
- - Three-phase input voltage: 380/400v
- - Total connected load: 64 a = 5 kva
- - Water required flow rate: 6 l/min
- - Air pressure range: 6 < p < 8 bar // flow rate: 1 l/min

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
