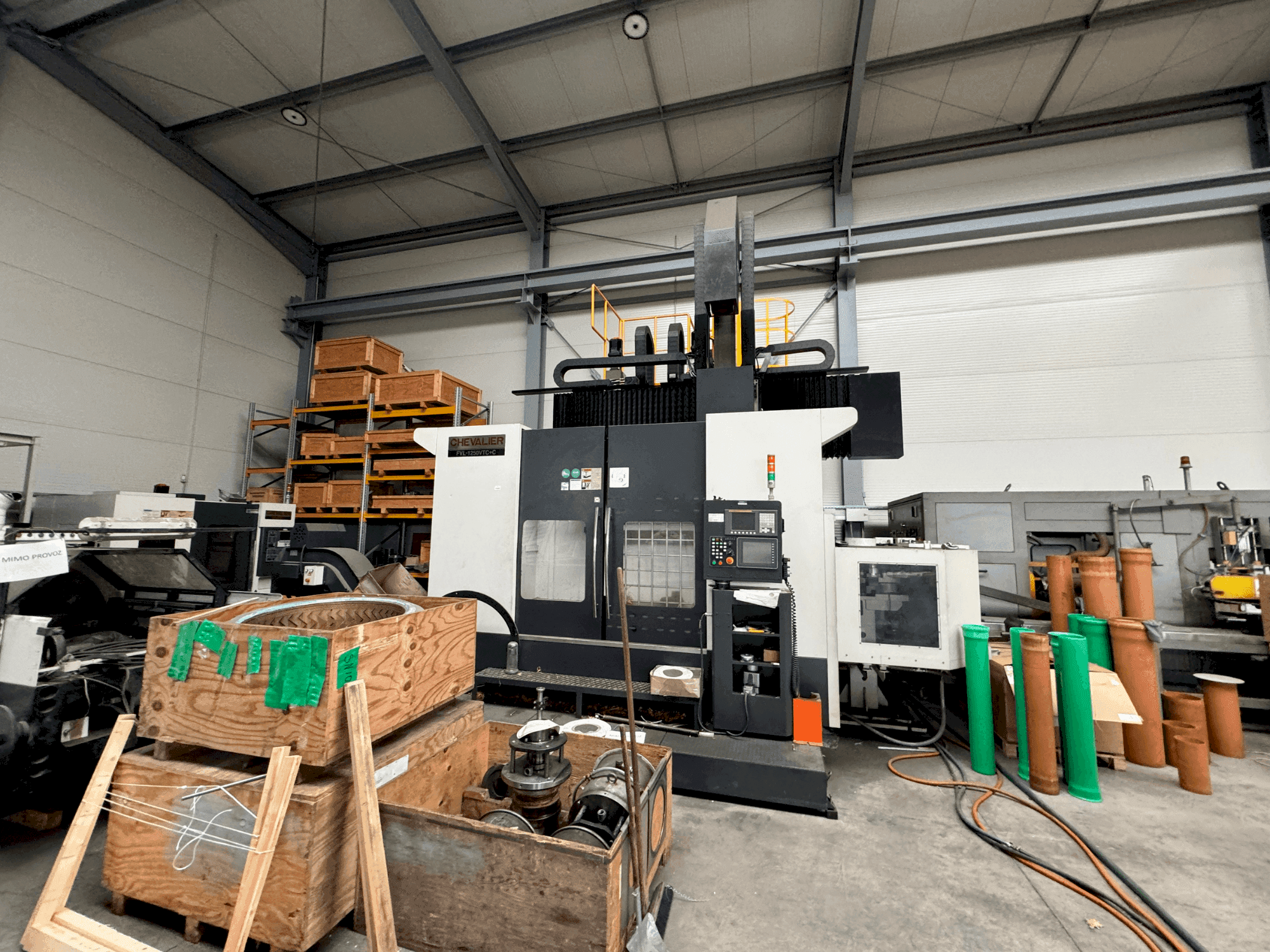

Front view of Chevalier FVL-1250VTC+C machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Chevalier FVL-1250VTC+C

Photo Gallery

Chevalier - FVL-1250VTC+CCZ-TUR-CHE-2015-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Used Lathes CHEVALIER FVL-1250VTC+C - 2015 - for sale | gindumac.com

Show in original language

This 4-Axis lathe manufactured in 2015, the CHEVALIER FVL-1250VTC+C, is equipped with high-precision capabilities. It boasts a max. swing and cutting diameter of 1,600 mm, and a turning height of 1,200 mm. With a spindle speed up to 2,500 rpm and a robust table capable of supporting 8,000 kg, this machine ensures high-torque operations. The addition of a C Axis with a minimum index angle of 0.001° enhances versatility. The CHEVALIER FVL-1250VTC+C machine we have for sale is like new, having only been tested. Contact us to learn more about this opportunity.

Overview

brand: Chevalier
year: 2015
MODEL: FVL-1250VTC+C
application type: Turning
Location: Czech Republic
machine type: Vertical Turning Machine

Technical Information - Chevalier FVL-1250VTC+C

General Data

Measurements width: 7480 MM
Measurements depth: 5900 MM
Measurements height: 5580 MM
Machine weight: 22000 KG

Main drive

Spindle speed range: 25 ~ 2,500 rpm 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 665 mm
Y-AXIS Movement: 960 mm
Z-AXIS Movement: 900 mm

Table

Table load: 8000 KG

Additional Information

Additional equipment

Tool shank BT50

Machine Benefits

Qualitative Machine Benefits

Machine like new, only tested.

Technical Machine Benefits

Max. Swing diameter 1,600 mm // max. Cutting diameter 1,600 mm
Max. Turning height 1,200 mm
Max. Torque 11,461 nm
Table diameter 1,250 mm
Speed range high: 151 ~ 300 rpm / low: 3 ~ 150 rpm
Height from table to ground 900 mm
Spindle taper iso 7/24 no. 50
Distance from spindle nose to table surface 1,400 mm
W-beam travel 800 mm // x, z-axis rapid traverse 10 m/min
C axis min. Index angle 0. 001° // rotation speed 3. 3 rpm

Extra Information

MACHINE STILL UNDER POWER

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
