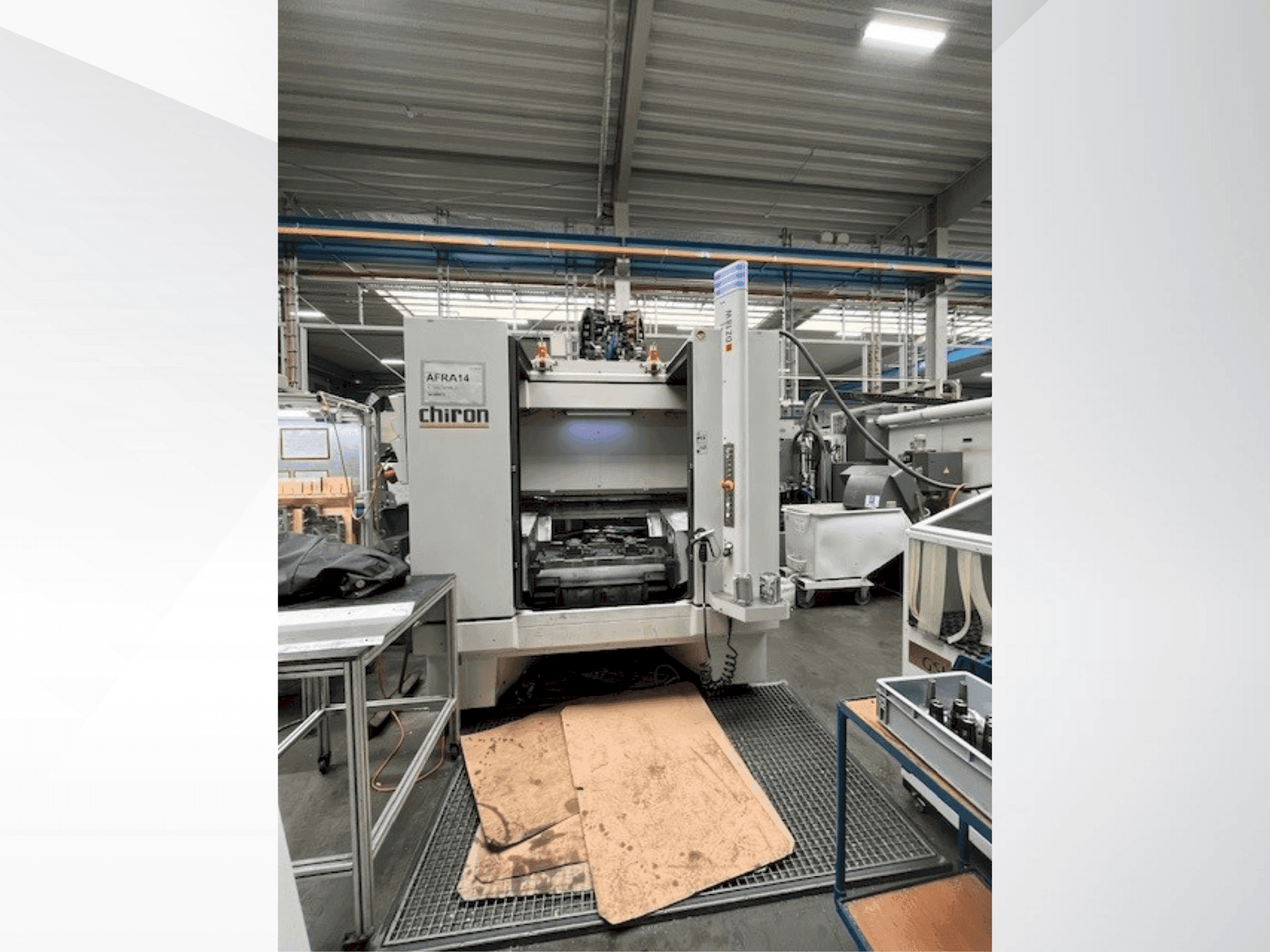

This 4-axis CHIRON DZ 18 W vertical machining center was manufactured in 2021. Consider the opportunity to buy this CHIRON DZ 18 W vertical machining center. Contact us for more information.
Overview
- brand: CHIRON
- year: 2021
- MODEL: DZ 18 W
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - CHIRON DZ 18 W
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D
Movement
- Number of Axes: 4
Additional Information
Machine Benefits
Technical Machine Benefits
- Travel speed (x-y-z): 75 m/min
- Spindle distance 400 mm
Extra Information
NC rotary table, type ATU 200, installed in the IWW/ Rotary feedthrough for IWW/ Axes on the work area/ Double-spindle headstock/ HS drive 2 x 25.3 kW - 15%, 12,000 rpm - 140 Nm/ Tool changer 2 x 35 tool positions, HSK-A 63, 8 kg/ VS drive X-Y-Z 75-75-75 m/min/ Automatic central grease lubrication/ Sinumerik 840D solution line, 10.4" color screen/ Control system/ Control interface/ RemoteLine SIE/MTX/ Maintenance management on screen/ for machining tilted surfaces, SIEMENS/ Operating hour and workpiece counter on screen/ Control cabinet cooler as door-mounted unit/ Signal light for 3 signals/ Fluid tower in open design/ Oil-free maintenance unit/ Cooling unit/ A u t t t e l l e l e m e n t e/ Chip conveyor scraper belt 1050 mm, rear/08, left/15, 18, 200 l/ Coolant system KF400-FKA900/900 l, 70 bar/ Bridge for cables and hoses/ Machine preparation for internal flushing/ Flushing of fixtures in the machining station/ 1 flushing gun outside the splash guard/ Work area flushing/ Additional equipment for extraction/extinguishing -/ Additional equipment for pneumatics/hydraulics -/ 1860 workpiece support control, coarse/ Hydraulic connection for 200 bar, single-acting/ Hydraulic connection for 200 bar, double-acting/ Regulated, lubricated air purge connection/ Hydraulic unit extension/ Additional equipment for measuring/tool breakage detection -/ RLP40Q measuring probe/ Whisker switch for tool breakage detection/ Additional equipment for machine operation -/ Automatic loading door Open/Close/ Walk Switch/ Additional Equipment: NC Control -/ M Function Package/ Variable Clamping Logic - Siemens/ Powersave/ Siemens Tool Management/ Comfort Cycle Fixture Flushing/ Revolutional Feed/ Loader Interface with Profinet/ Direct Door Detection in 'Open' Position/ Commissioning and Training/ Power Supply / Compressed Air 6 bar / Ambient Temperature 15°-40° C
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
