- ➤ Used CHIRON FZ 08 W For Sale | gindumac.com

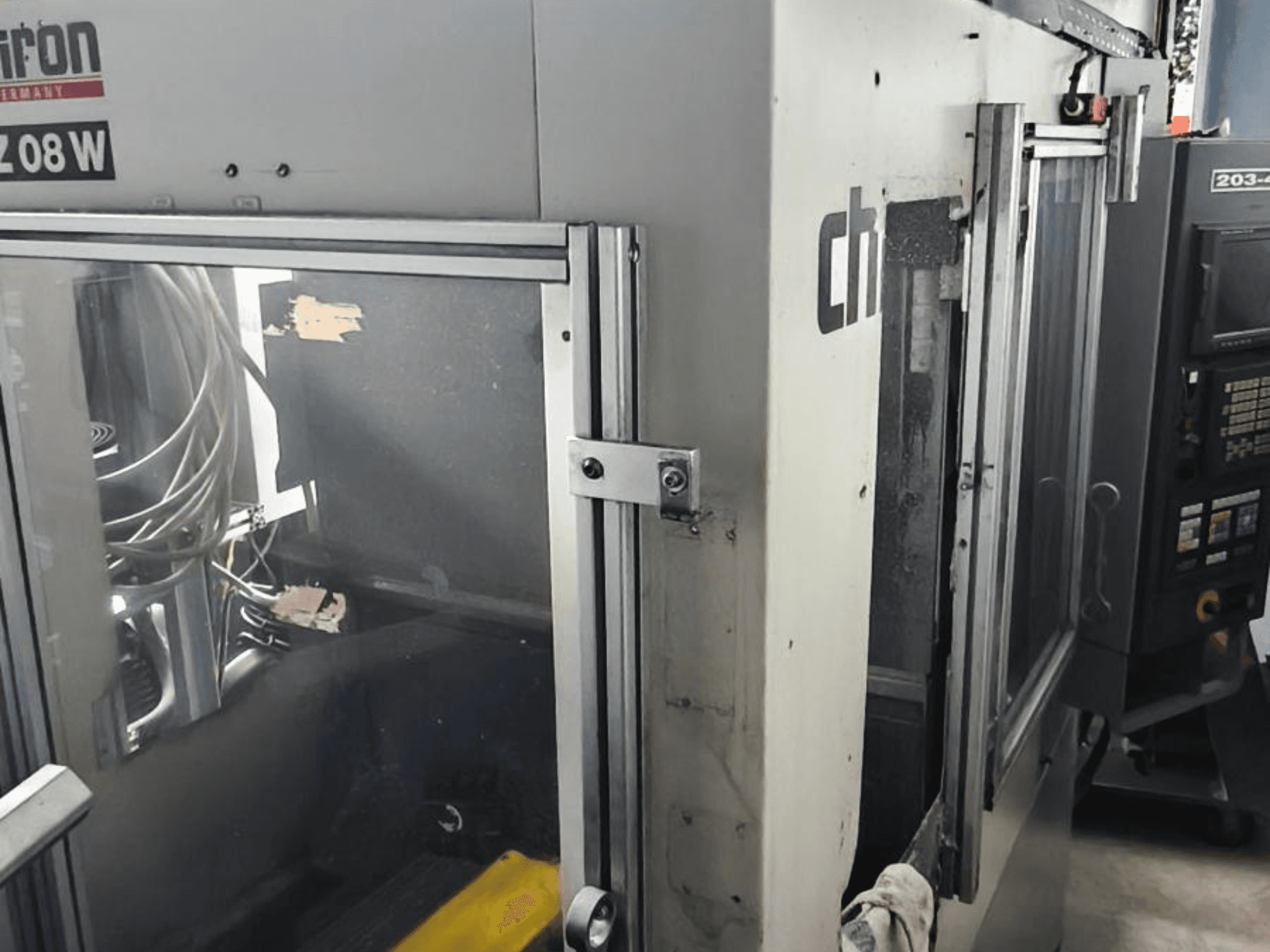

This 3-axis CHIRON FZ 08 W was manufactured in 2001. It features a maximum spindle speed of 18,000 rpm and a robust tool interface with HSK-A40. The machine includes integrated pallet changer for efficient workpiece handling. If you are looking to get high-quality machining capabilities, consider the CHIRON FZ 08 W vertical machining centre we have for sale. Contact us for further details regarding this machine.
Overview
- brand: CHIRON
- year: 2001
- MODEL: FZ 08 W
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - CHIRON FZ 08 W
Control Unit
- Control Brand: FANUC
- Control Model: Series 21i-M
Movement
- Number of Axes: 3
- X-axis Travel: 450 mm
- Y-axis Travel: 270 mm
- Z-axis Travel: 310 mm
Technical Specification
- Spindle Power: 14 kW
- Spindle Speed: 18000 RPM
Additional Information
Condition: Machine is no longer functional and can only be used as a supplier of spare parts
Electrical data
Kind of current: 3/N/PE ~ 50/60 Hz
Working voltage: 400 V
Control voltage: 230/24 V
Rating: 12 kVA
Rated current: 17 A
Fuse: 20 A
Spindle
Tool holder: HSK-A40
Tool interface: HSK
Spindle type: Water-cooled motor spindle
Max. torque: approx. 15 Nm
Other machine details
Workpiece changing system: Integrated pallet changer (W-type)
Maintenance intervals noted: 8h, 50h, 200h, 500h, 2000h, 6000h
Lubrication requirements: INSK K11 / ALKANIA 2 (Shell)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
