➤ Used PreMill V 610 B For Sale | gindumac.com

Show in original language

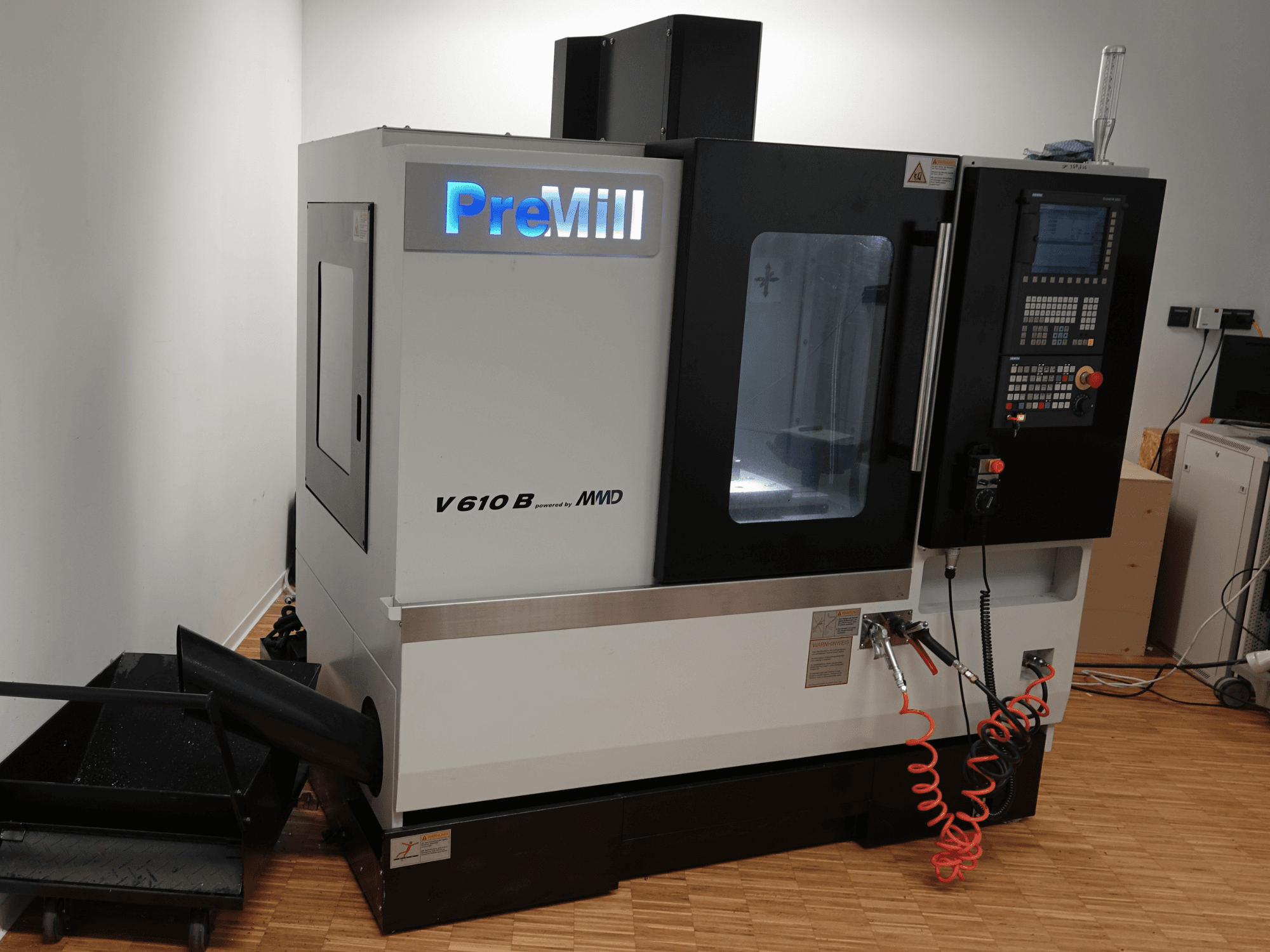

This 3-axis PreMill V 610 B was manufactured in 2019. It features an X-axis travel of 610 mm, Y-axis travel of 350 mm, and Z-axis travel of 460 mm. The machine has a robust table size of 710 x 350 mm and a maximum workpiece weight of 350 kg. If you are looking to get high-quality machining capabilities, consider the PreMill V 610 B vertical machining centre we have for sale. Contact us for further details.

Overview

brand: PreMill
year: 2001
MODEL: V 610 B
production hours: 136
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - PreMill V 610 B

Control Unit

Control Brand: SIEMENS
Control Model: 828 D SL

Dimensions

Machine Height: 1987 mm
Machine Length: 1880 mm
Machine Weight: 2600 kg
Machine Width: 1720 mm
Table Length: 710 mm
Table Width: 350 mm

Movement

Number of Axes: 3
X-axis Travel: 610 mm
Y-axis Travel: 350 mm
Z-axis Travel: 460 mm

Technical Specification

Max. Tool Weight: 6 kg
Spindle Power: 7 kW
Spindle Speed: 10000 RPM
Taper Size: SK 40
Through-spindle Coolant: No

Additional Information

- Distance Spindle Center to Table Surface: 100 - 560 mm

- Max. Workpiece Weight: 350 kg

- Rapid Traverse Speed (X/Y/Z): 12 m/min

- Feed Speed: 10 m/min

- Positioning Accuracy: +/- 0.008 mm

- Repeatability: +/- 0.005 mm

- Tool Changer Type: Carousel

- Tool Storage Capacity: 16 slots

- Max. Tool Diameter: 100 mm (150 mm without adjacent tools)

- Max. Tool Length: 300 mm

- Spindle Motor Power (100% ED): 7 kW

- Feed Motor Power (X/Y/Z): 2.3 kW

- Power Supply: 12 kVA

- Compressed Air Supply: 6 bar

- Coolant Tank Capacity: 100 L

- additional features available: ShopMill, 3D Simulation, Auto Power Off, Rigid Tapping, Flat Guideways in X/Y/Z, Chip Conveyor (Screw type) with Chip Cart, Spindle Ring Flushing, Prepared for CTS (IKZ), Prepared for 4th Axis, Central Oil Lubrication, LED Signal Lamp & Workspace Light, Vice

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
