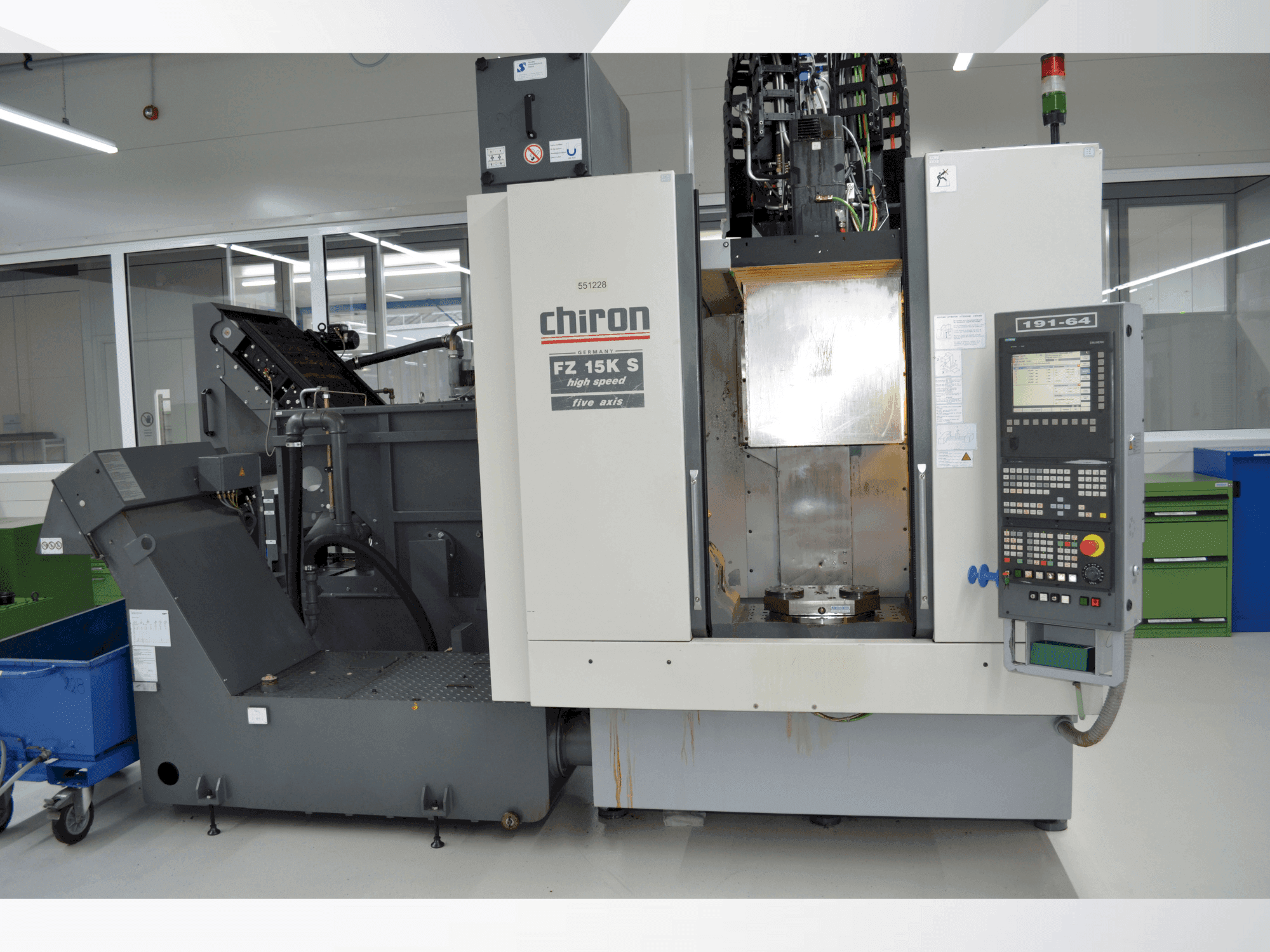

Front view of CHIRON FZ 15KS five axis high speed machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

CHIRON FZ 15KS five axis high speed

Photo Gallery

CHIRON - FZ 15KS five axis high speedDE-MIL-CHI-2008-00003

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used CHIRON FZ 15KS five axis high speed | Machining

Show in original language

This 5-axis CHIRON FZ 15KS five axis high speed was manufactured in 2008. It features a main spindle drive with up to 14 kW power, a 48-tool magazine with HSK A63 tooling, and a rapid traverse rate of 60m/min. Travel distances are X 550mm, Y 400mm, Z 360mm. Currently operates as a 4-axis due to a deselected C-axis. If you are looking to get high quality milling capabilities consider the CHIRON FZ 15KS machine we have for sale. Contact us for more information.

Overview

brand: CHIRON
year: 2008
MODEL: FZ 15KS five axis high speed
production hours: 55000
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - CHIRON FZ 15KS five axis high speed

Control Unit

Brand: SIEMENS
Model: SINUMERIK 840D

Main drive

Main motor power: 9.5 kW (100% ED), 14 kW (15% ED)
Number of axis: 5

Movement

X-AXIS Movement: 550 mm
X-AXIS Feed Force: 0.5g
X-AXIS Rapid traverse: 60 m/min
Y-AXIS Movement: 400 mm
Y-AXIS Feed Force: 1.0g
Y-AXIS Rapid traverse: 60 m/min
Z-AXIS Movement: 360 mm
Z-AXIS Feed Force: 1.2g
Z-AXIS Rapid traverse: 60 m/min

Turret

Tool taper: HSK A63

Tools

Slots in storage: 48
Max weight: 5 kg
Max tool diameter: 82 mm
Max tool length: 125 mm

Media

Chip conveyor: Yes

Additional Equipment

- Coolant system HL 450 / 900
- Internal cooling package with suction unit

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Main spindle drive ac motor
- - Drilling capacity in st 60: diameter 30mm
- - Thread cutting: m 24
- - Milling capacity in st 60: 300 cm³/min
- - 2-axis swivel device zas 280 - swivel angle: ±110° partial accuracy: ±6'' max. Transmittable torque: 1100 nm max. Speed: 30 min^-1 holding torque: 3800 nm
- - Nc round disk face plate - diameter: 280mm max. Transport load: 320kg max. Transmittable torque: 700 nm holding torque: 2800 nm max. Speed: 45 min^-1
- - Chiron lasercontrol single f500 transmitter-receiver distance: 1000mm
- - Min. Tool diameter: >1mm
- - Ejection height: 1050mm
- - Container capacity: 150l
Qualitative Machine Benefits:
- - C-axis is defective and has been deselected
- - Machine is ready for use and is used in 4-axis operation
- - Without base plate on the c-axis
- - Lifting pump max. : 300l/min at 1. 3 bar

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
