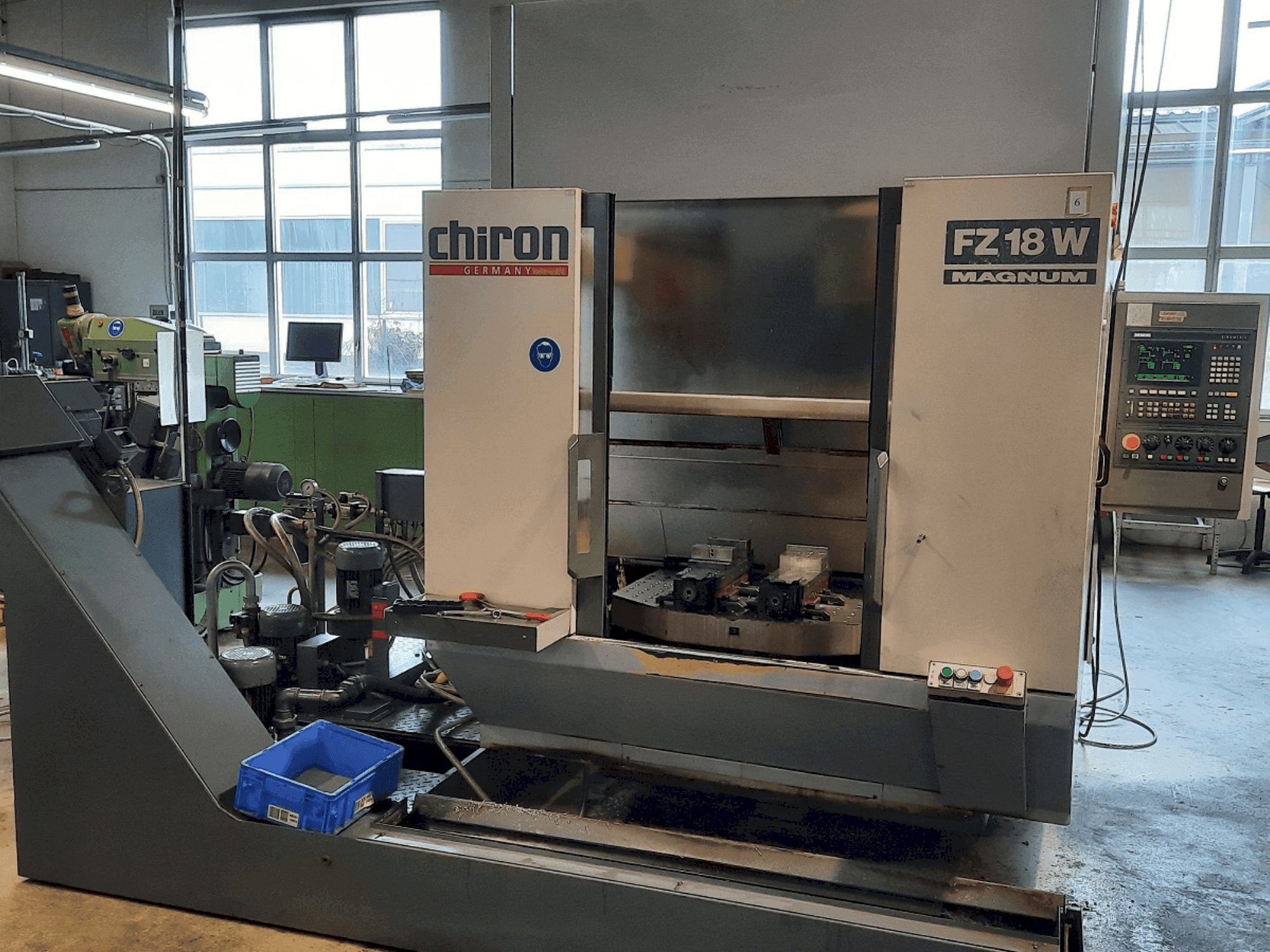

CHIRON - FZ 18 WDE-MIL-CHI-1996-00002

Additional Equipment

• - 2.2 Chip Conveyors: Scraper belt, discharge height 1050 mm
• - Steel Cover: In all axes

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Spindle torque: 300 nm
  • - Rapid traverse speed: 30 m/min
  • - Feed drive: ac servo motor, indirect position measuring system
  • - Clamping surface: 2 x 850 x 470 mm with thread and bore pattern
  • - Max transport load per side: 250 kg (up to 400 kg with extended time)
  • - Workpiece change time: approx. 4. 0 s, increasing to approx. 7 s with max loads
  • - Automatic tool changer: 20 tool positions
  • - Tool specifications: steep taper 40 din, diameter 65 mm, diameter with free adjacent positions 180 mm, weight 5 kg
  • - Tool change time: 0. 9 s // chip-to-chip time: 2. 4 s
  • - Coolant system: 500-liter tank, with n-pump (200 ltr/min at 1. 5 bar) and hd-pump (20 ltr/min at 20 bar), hd circuit with 60 um cleaning

Extra information

• - Safety: Electrically protected screwed splash guard with loading door Height: Approx. 2600 mm above floor, including machine light Control Panel: Mini control panel with start and acknowledge button for pallet organization Control Unit Control Type: SINUMERIK 810M - 3-axis contouring control Program Memory: 32000 characters (approx. 28000 characters freely available) Notable Features: Drilling cycles G81-G89, Circular interpolation, Program restart, Subroutine technique with parameters, Operator guidance, Simultaneous programming, Polar coordinates, Tool offsets, Intersection point/cutter radius path compensation, Zero offsets, 3D interpolation, Direct spindle speed programming, Chamfers and radii insertion, RS 232C connection, NC diagnostics, Machine diagnostics
