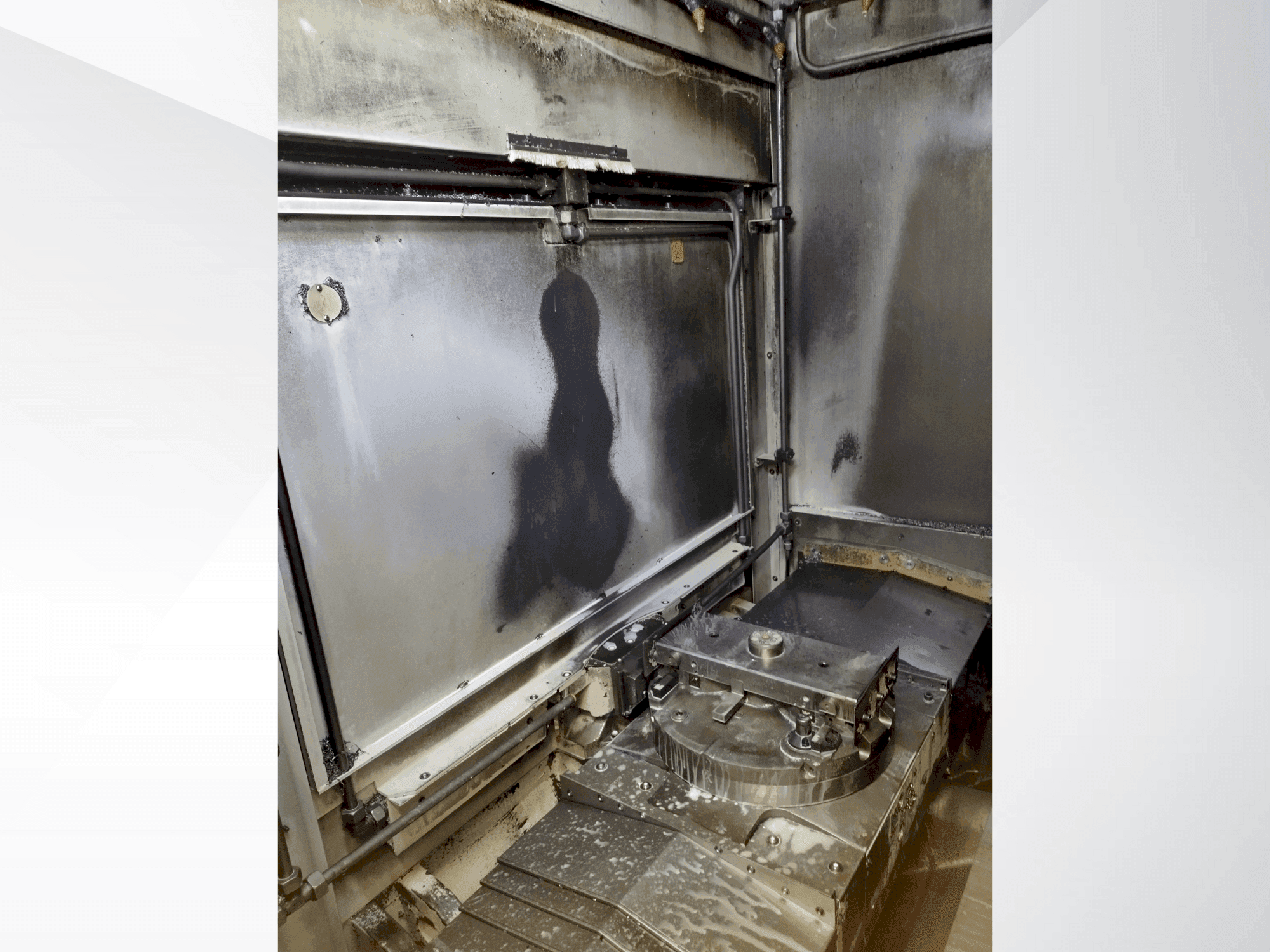

This 3-axis HELLER MCPH150 UNIPRO 90 horizontal machining centre was manufactured in 1997. It features a robust spindle motor with 8,000 RPM and 30KW power, a rotary indexing table of 400mm, and a high-capacity coolant tank of 600 liters. The machine includes a pallet changer, enhancing productivity with its large travels and powerful performance. Ideal for complex machining tasks, the HELLER MCPH150 UNIPRO 90 machine we have for sale. Contact us for further details regarding this horizontal machining centre.
Overview
- brand: HELLER
- year: 1997
- MODEL: MCPH150 UNIPRO 90
- production hours: 65317
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
- availability: Immediately
Technical Information - HELLER MCPH150 UNIPRO 90
General Data
- Machine weight: 12700 kg
Main drive
- Spindle speed range: 45-8000 1/MIN
- Spindle motor power: 30 KW
- Tool taper: SK40
Movement
- X-AXIS Movement: 630 mm
- X-AXIS Working Feed: 1-30000 mm/min
- X-AXIS Rapid traverse: 30000 mm/min
- Y-AXIS Movement: 520 mm
- Y-AXIS Working Feed: 1-30000 mm/min
- Y-AXIS Rapid traverse: 30000 mm/min
- Z-AXIS Movement: 560 mm
- Z-AXIS Working Feed: 1-30000 mm/min
- Z-AXIS Rapid traverse: 30000 mm/min
Media
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Equipment
- - Air Supply
- - Air conditioner for control cabinet
- - Many spare parts on reserve
Additional Information
- Technical Machine Benefits:
- - Cooling pressure: 50 bar
- - Pallet size: 400*500
- - Coolant tank capacity: 600 litres
- - Conveying speed: 1. 5 m/min
- - Ejection height: 600 mm
- - Max. Torque: 2000 1/min
- - Spindle diameter in front bearing: 70 mm
- - Rotary indexing table: 400 mm
- - Max. Tilting torque: 8000 nm
- Qualitative Machine Benefits:
- - Additional filters installed on the knoll system
- - Modified central lubrication – freely programmable
- - Water pipe and oil pipes renewed
- - Screens, gearbox and telescopic sheets renewed
- - Modified central lubrication – freely programmable
- - Database/memory in the controller renewed
- - Additional filters installed on the knoll system
- - Rotary union for ikz renewed
- - Water pipe and oil pipes renewed
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
