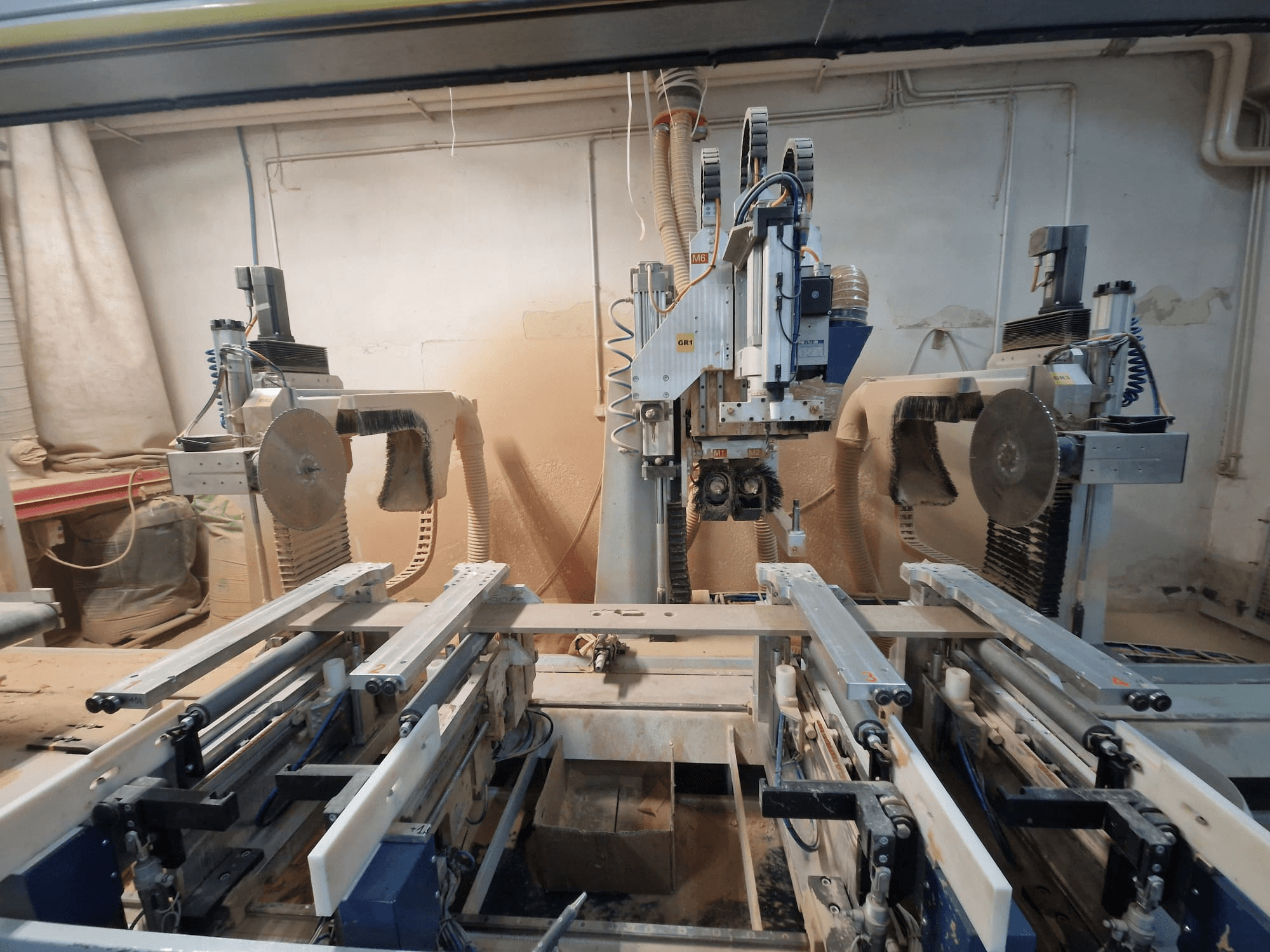

CNC machine with dual saw blades and rails, viewed from the front. Dust extraction systems visible, suitable for woodworking.
CNC machine with dual saw blades and rails, viewed from the front. Dust extraction systems visible, suitable for woodworking.

COMEC - MD JAMB 9XPL-CNC-COM-2015-00001

135,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

CNC Wood Machining Centre manufactured in 2015. This COMEC MD JAMB 9X features a multi-head design ideal for machining door frames, including DIN-adjustable options. It includes an automatic unloading conveyor and advanced CNC control with NC CAM SUITE software, allowing for simultaneous operations across its three independent heads. Consider the opportunity to buy this COMEC MD JAMB 9X CNC Wood Machining Centre. Contact us for further details.

Overview

  • brand: COMEC
  • year: 2015
  • MODEL: MD JAMB 9X
  • application type: CNC Wood Machining
  • Location: Poland
  • machine type: CNC Wood Machining Centre

Technical Information - COMEC MD JAMB 9X

Movement

  • X-axis Travel: 2500 mm
  • Y-axis Travel: 350 mm
  • Z-axis Travel: 112 mm

Additional Information

  • Heads: 3 independent CNC-controlled heads (left, central, right); control can independently manage all 3 heads on all axes; allows simultaneous identical or different operations

  • Left and right heads:

    • 1 cutting/drilling unit per head with automatic pneumatic inclination of saw blades and drill groups

    • 2 counter-rotating horizontal electro-spindles for milling

    • 1 milling and mortising electro-spindle

    • Special sleeve for slotting on the lower side of the workpiece

  • Vertical units:

    • 1 vertical electro-spindle for milling

    • 1 vertical electro-spindle for drilling seats for metal clips

    • 1 vertical electro-spindle with special drilling head (5 drills arranged at 90°)

  • Workholding/benches:

    • Workpiece holding bench divided into 4 elements, adjustable on ball-rail guide system

    • Automatic locking, unlocking, and positioning controlled by the central head (CNC-controlled)

  • Control and software:

    • CNC control with NC CAM SUITE software

    • CAD/CAM: TPAED132 with 3D workpiece visualization, integrated movement optimizer, and dedicated post-processor

  • Safety:

    • Full perimetral safety enclosure

    • CE compliant

Additional equipment

  • Automatic unloading conveyor

  • Chip evacuation conveyor

  • Special loading benches for fully assembled door jambs


*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
