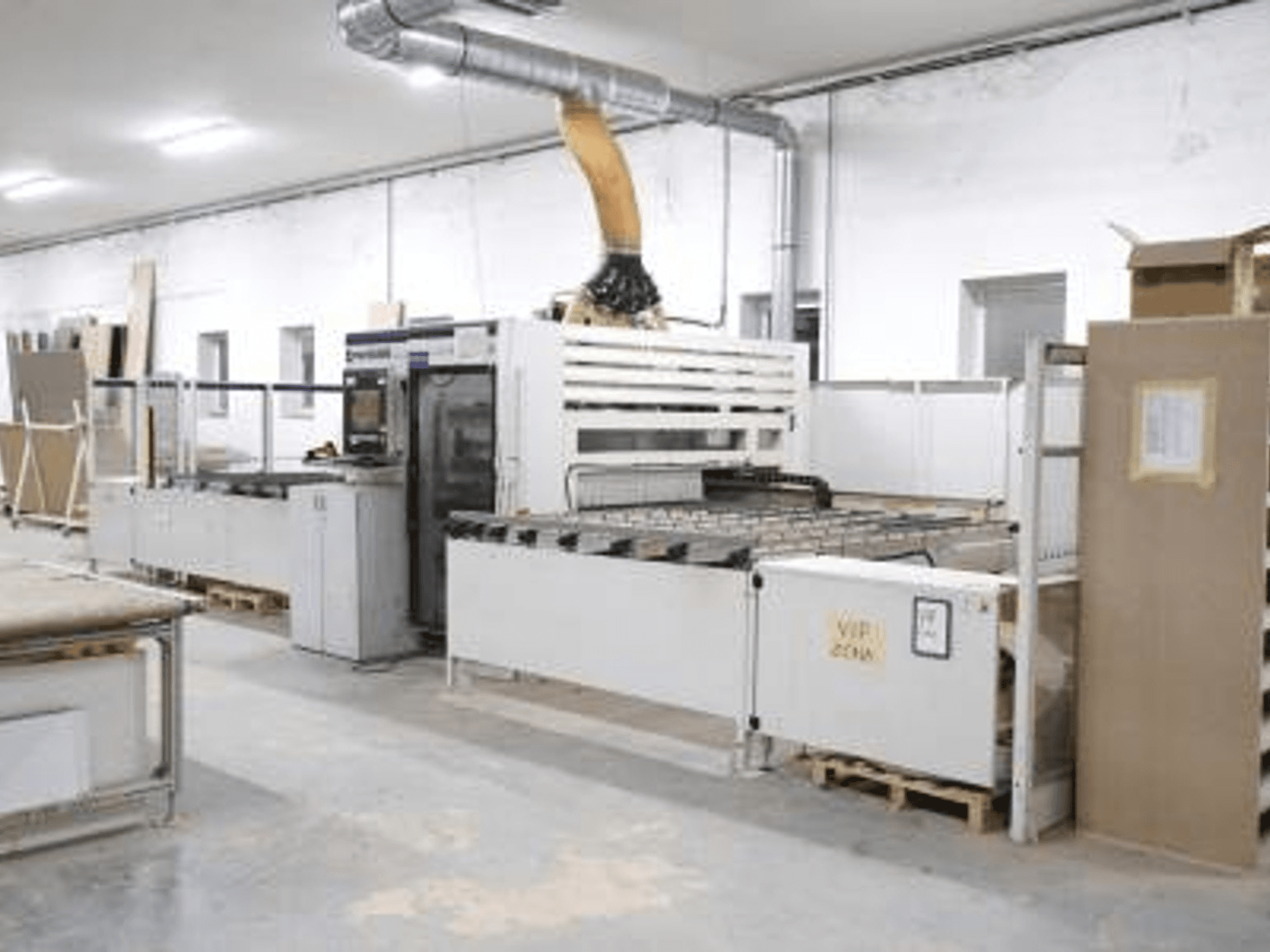

This 3-axis SCM Morbidelli UNIFLEX HP was manufactured in 2014. It features a working area of 3,000 mm in the X-axis and 1,300 mm in the Y-axis, with a maximum speed of 24,000 rpm. The machine is equipped with 2 milling spindles and a tool clamping system of HSK-F63. If you are looking to get high-quality CNC wood machining capabilities, consider the SCM Morbidelli UNIFLEX HP machine we have for sale. Contact us for further details.
Overview
- brand: SCM
- year: 2014
- MODEL: Morbidelli UNIFLEX HP
- application type: CNC Wood Machining
- Location: Czech Republic
- machine type: CNC Wood Machining Centre
Technical Information - SCM Morbidelli UNIFLEX HP
Dimensions
- Machine Weight: 5200 kg
Movement
- Number of Axes: 3
- X-axis Travel: 3000 mm
- Y-axis Travel: 1300 mm
- Z-axis Travel: 80 mm
Technical Specification
- Spindle Power: 7.5 kW
- Spindle Speed: 24000 RPM
Additional Information
Number of milling spindles: 2
Tool clamping system: HSK-F63
Vertical drill spindles: 96
Horizontal drills (X/Y): 32 / 4
CE mark
Additional equipment
Barcode reader
Enclosed fence
Light barrier
DXF interface
Software: SCM XILOG PLUS
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
