CORMARK - CK6232LPL-MIL-COR-2016-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- Cormak CK6232L Horizontal Machining center
Show in original language

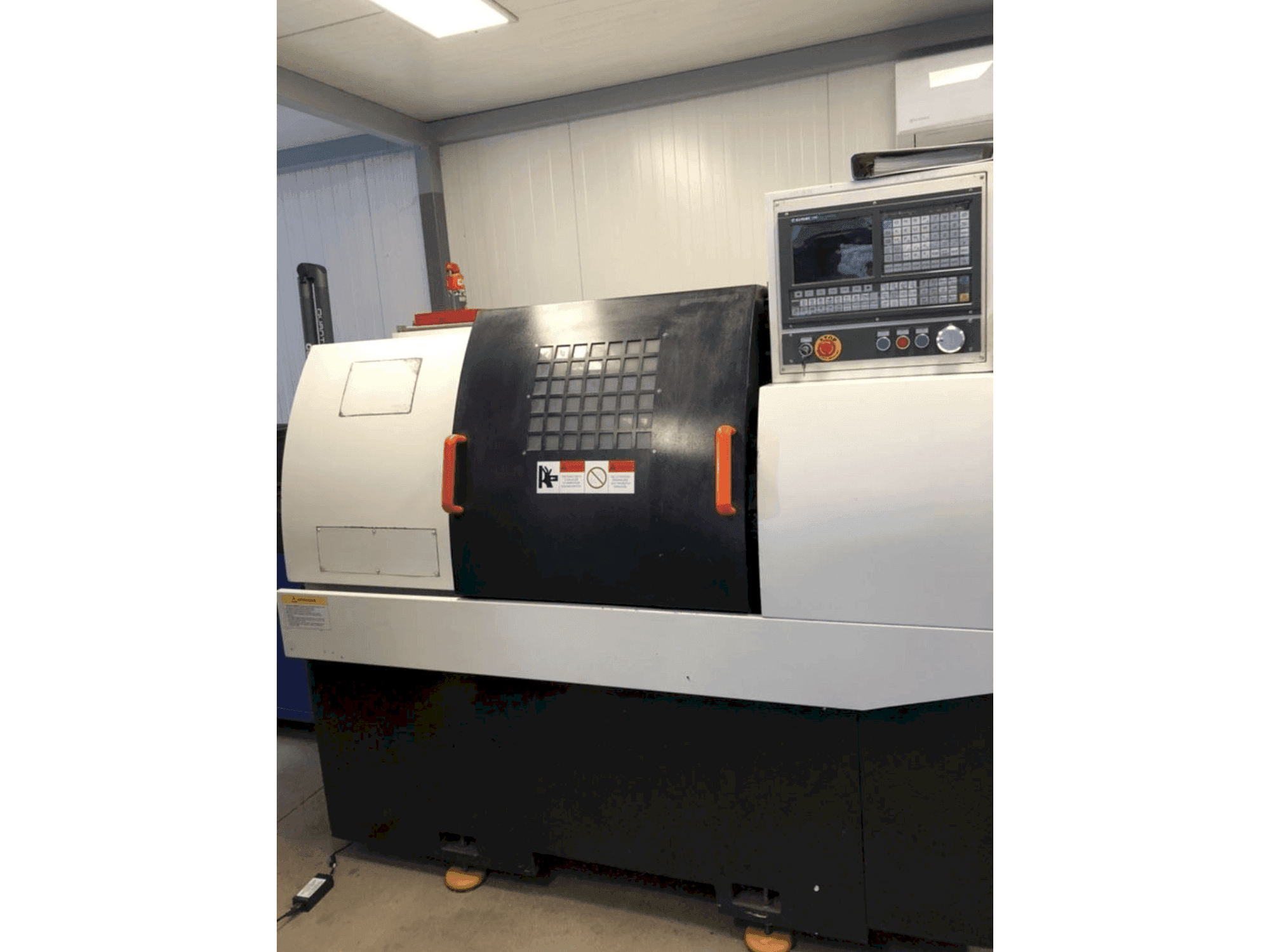

This Cormak CK6232L Horizontal Machining center was manufactured in the year 2016 in Poland. It is equipped with a GSR 980TD control unit and has 2 axis. The machine has a spindle speed of 300-2400 rpm.
Overview
- brand: CORMARK
- year: 2016
- MODEL: CK6232L
- application type: Milling
- Location: Poland
- machine type: Horizontal Machining Centre
Technical Information - CORMARK CK6232L
Dimensions
- Machine Depth: 1220 mm
- Machine Height: 1560 mm
- Machine Weight: 1700 kg
Movement
- Number of Axes: 2
- X-axis Travel: 300 mm
- Z-axis Travel: 800 mm
Technical Specification
- Spindle Power: 5.5 kW
- Spindle Speed: 2400 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Size of the tool holder: 20 x 20mm
- Steady rest type: hydraulic
- Tailstock quill tip: morse 4
- The dimension of the tailstock quill tip: 60 mm
- Tailstock quill travel: 90 mm
- Coolant pomp power: 90w
- Holder: hydraulic
- Positioning accuracy x/z: 0,02 mm
- Repeatability x\z 0,008 mm
Technical Machine Benefits
- The maximum turning diameter over the bed: 420 mm
- The maximum turning diameter over the cross-slide: 180 mm
- The jaw spacing of a lathe: 700 mm
- The spindle bore: 51 mm
- The type of bed/type of guides: flat guides/box way guides
- The maximum swing over cross slide: 51 mm
- Axis x/z speed: 6000/6000 mm/min
- Servo motor torque x/z: 4/6 nm
- Type of chuck: tool holder type
- The number of tools in the holder: 8
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
