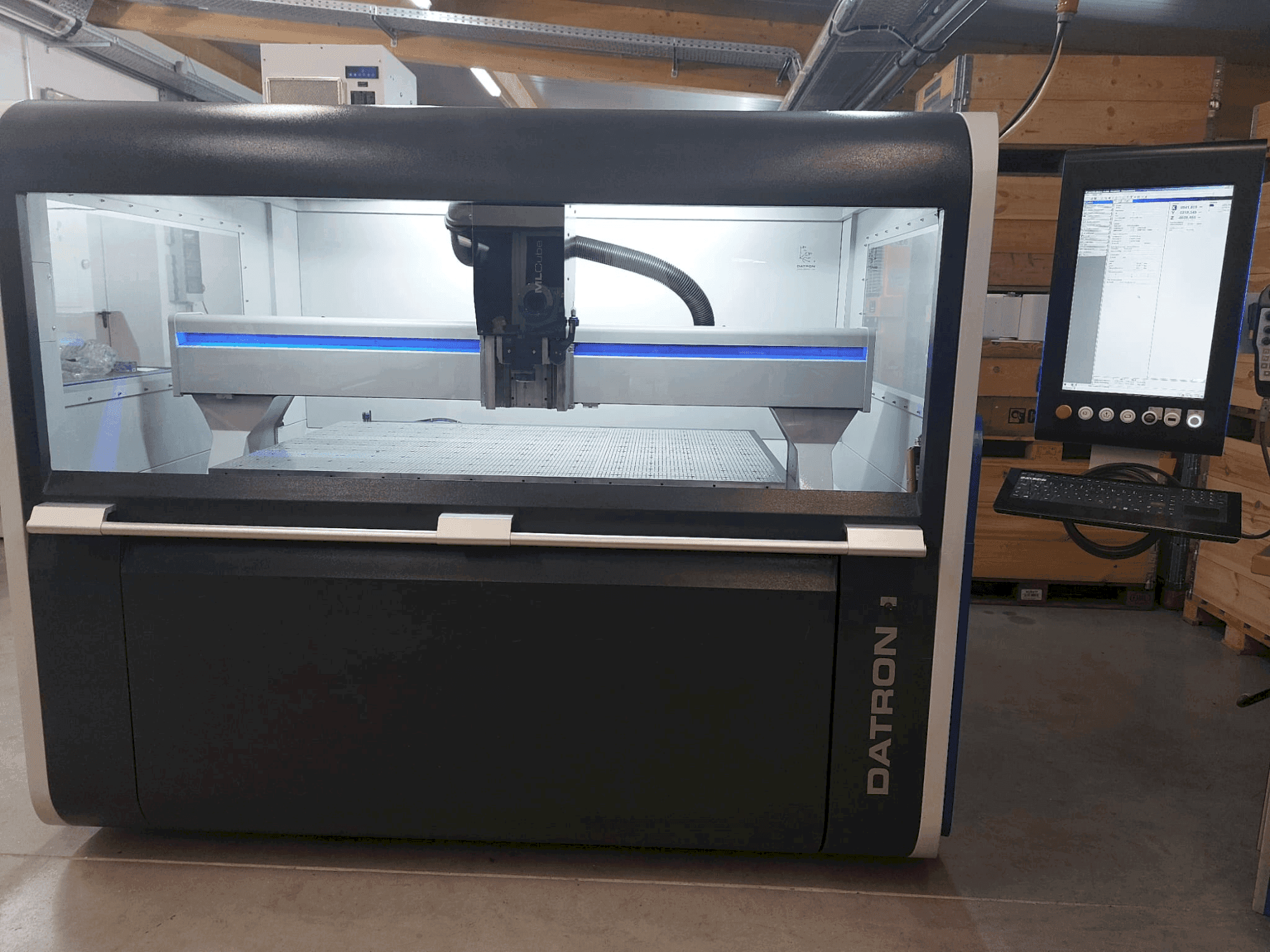

This 3-axis Datron MLCube LS was manufactured in 2015, featuring a 4 kW HF spindle with a speed range of 1,000 to 40,000 rpm, complemented by a HIB HF spindle cooling unit. It includes a vacuum table measuring 1,500 mm x 1,000 mm and three 5-position tool changers. Ideal for precision machining, it also boasts a Renishaw 3D probe and a Microjet minimum quantity lubrication system. Contact us for more information about this machine.
Overview
- brand: Datron
- year: 2015
- MODEL: MLCube LS
- production hours: 4000
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Technical Information - Datron MLCube LS
Main drive
- Spindle speed range: 1000 to 40000 1/MIN
- Number of axis: 3
Additional Information
3 x 5-position tool changers
Software: V9
HPGL in
Drill data in
CL-Print in
Menu items can be deactivated/enabled
Libraries
Polygon sensor XYZ
Import/export tool data/position data
ArcA and ArcI macros
Execute in the panel
User-definable thread tables
Dynamic macros
Tool type management
Protected areas
Tool monitoring Distance + Time
Smoothing
Iso In/Out (Din / Iso - G-code programs can be read in)
Additional equipment
HIB HF spindle cooling unit
Renishaw 3D probe
Precision tool length probe
Microjet minimum quantity lubrication system
Vacuum table, 1,500 mm x 1,000 mm
6-position vacuum distributor with automatic valves
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
