DECKEL FP 3NC
DECKEL - FP 3NC
1988
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Deckel FP 3NC Milling machine

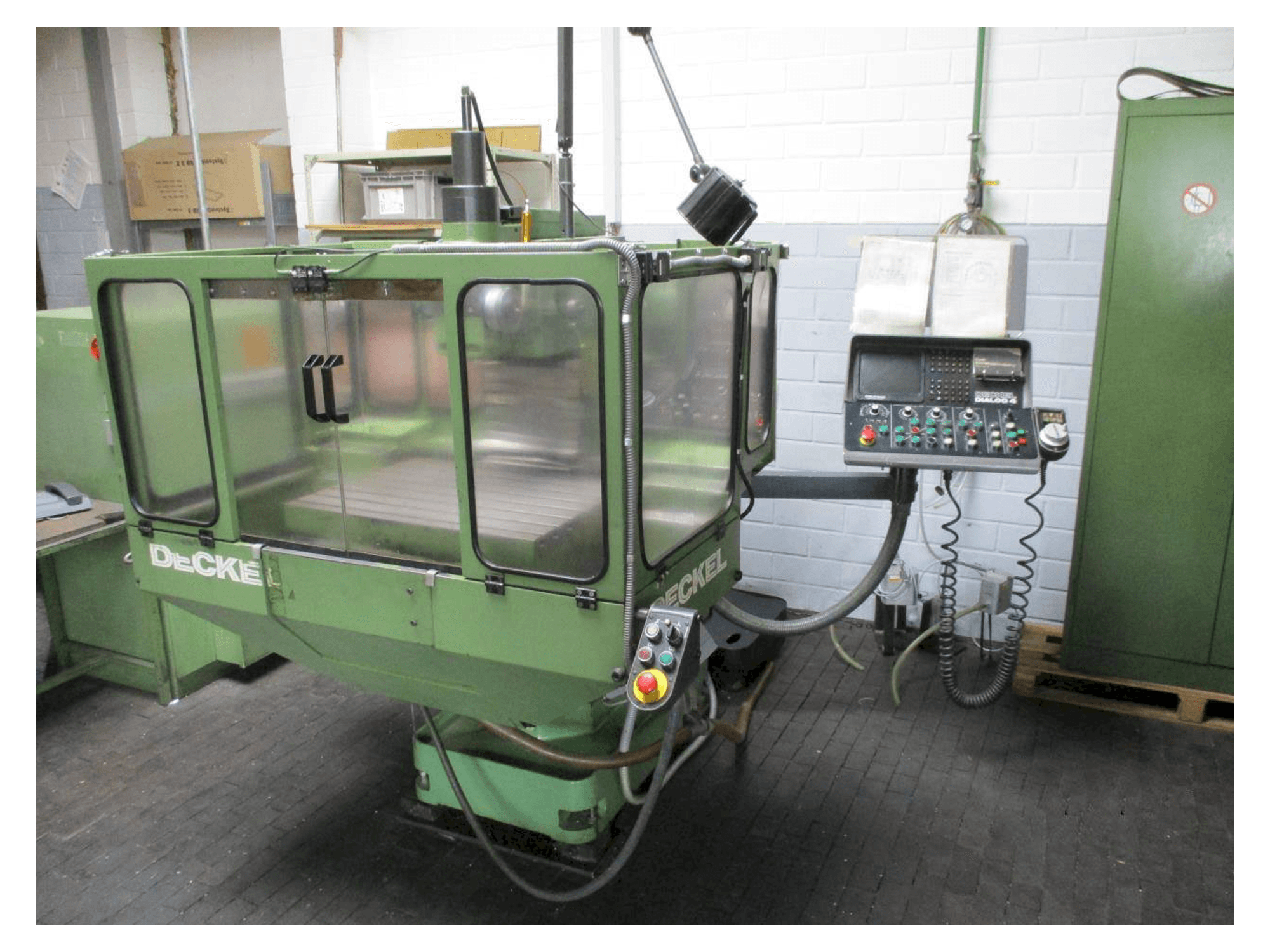

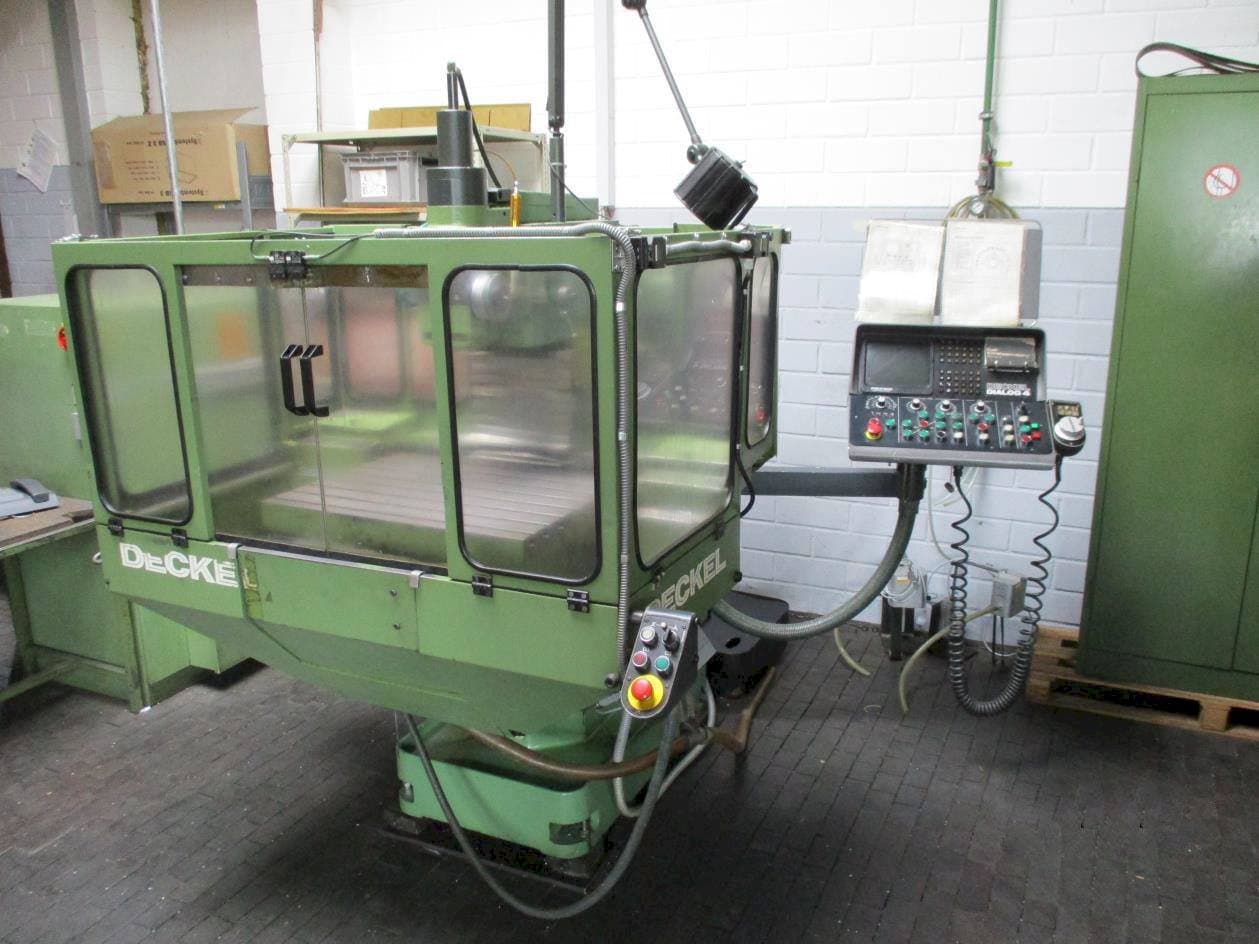

This Deckel FP 3NC Milling machine was manufactured in the year 1988 in Germany. It is equipped with a DECKEL DIALOG 4 control unit. The machine has a spindle speed of 6300 rpm.
Overview
- brand: DECKEL
- year: 1988
- MODEL: FP 3NC
- application type: Milling
- Location: Germany
- machine type: Milling Machine
- availability: Sold
- control unit brand: DECKEL
- GINDUMAC ID: DE-MIL-DEC-1988-00001
Technical Information
Control Unit
- Brand: DECKEL
- Model: DIALOG 4
Main drive
- Spindle speed range: 6300 1/MIN
- Spindle motor power: 2/3 kW
Movement
- X-AXIS Movement: 400 mm
- Y-AXIS Movement: 400 mm
- Z-AXIS Movement: 400 mm
Table
- Outer length: 700 mm
- Outer width: 460 mm
Tools
- Type of tool holder: SK40
Additional Information
- Technical Machine Benefits:
- - Rapid traverse speed: 4000 mm/min
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
