DECKEL MAHO - DMC 70 H duoblockDE-MIL-DEC-2007-00004
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DECKEL MAHO DMC 70 H duoblock | Machining Center

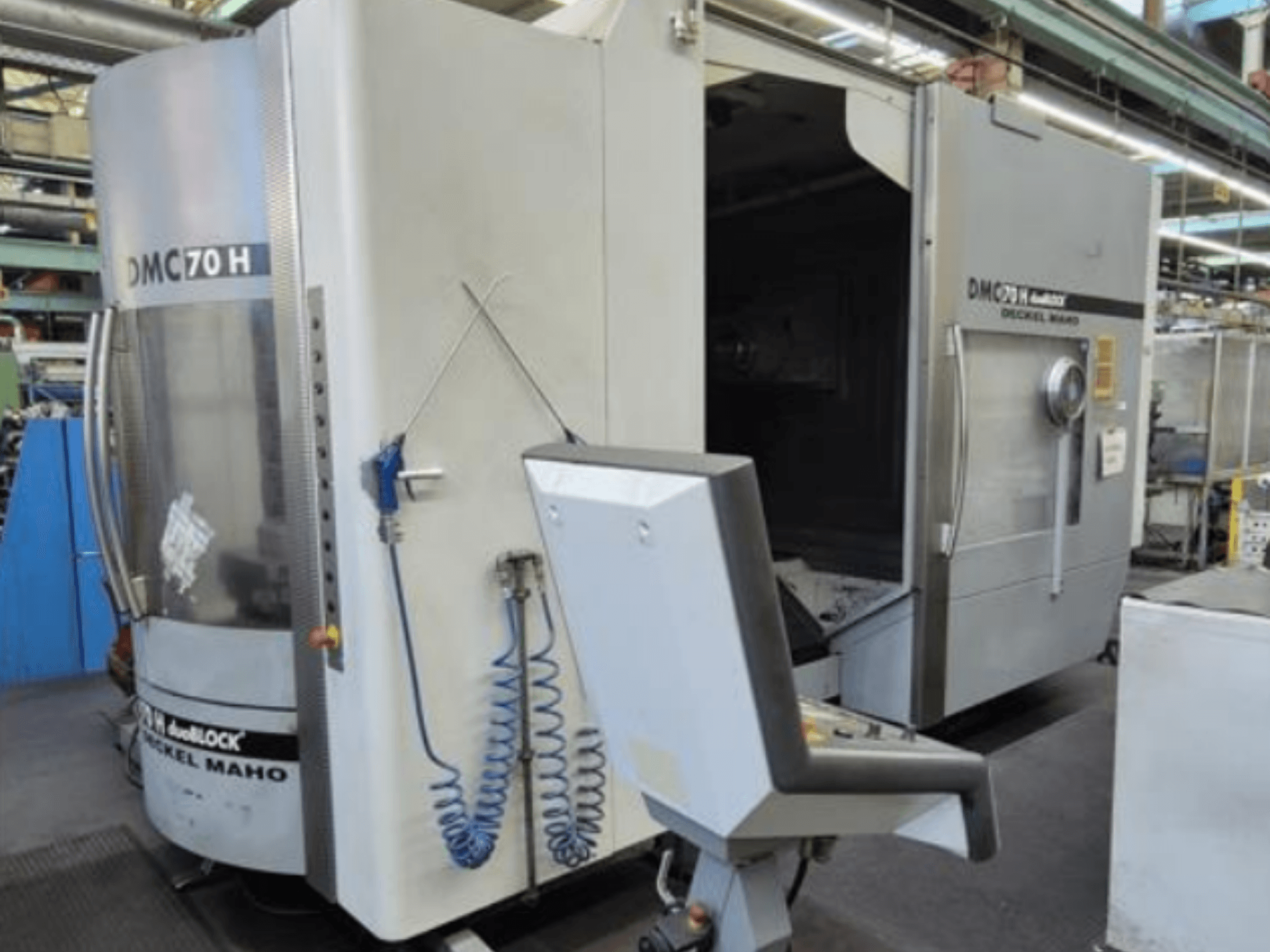

This 4-axis DECKEL MAHO DMC 70 H duoblock was manufactured in 2007. It features a Siemens 840D control unit and a robust tool holder type of SK40. The machine is equipped with hydraulically clamped clamping towers, ensuring secure workpiece handling. If you are looking to get high-quality machining capabilities, consider the DECKEL MAHO DMC 70 H duoblock horizontal machining centre we have for sale. Contact us for further details.
Overview
- brand: DECKEL MAHO
- year: 2007
- MODEL: DMC 70 H duoblock
- production hours: 20082
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
- control unit brand: SIEMENS
Technical Information - DECKEL MAHO DMC 70 H duoblock
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D
Movement
- Number of Axes: 4
- X-axis Travel: 700 mm
- Y-axis Travel: 800 mm
- Z-axis Travel: 800 mm
Technical Specification
- Spindle Speed: 10000 RPM
- Taper Size: SK 40
Additional Information
Apparent power: 60 kVA
Nominal current (max): 86 A
Fuse protection: 100 A
Voltage: 400 V
Frequency: 50 Hz
Control voltage: 24 V
Additional equipment
2 hydraulically clamped clamping towers (workholding)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
