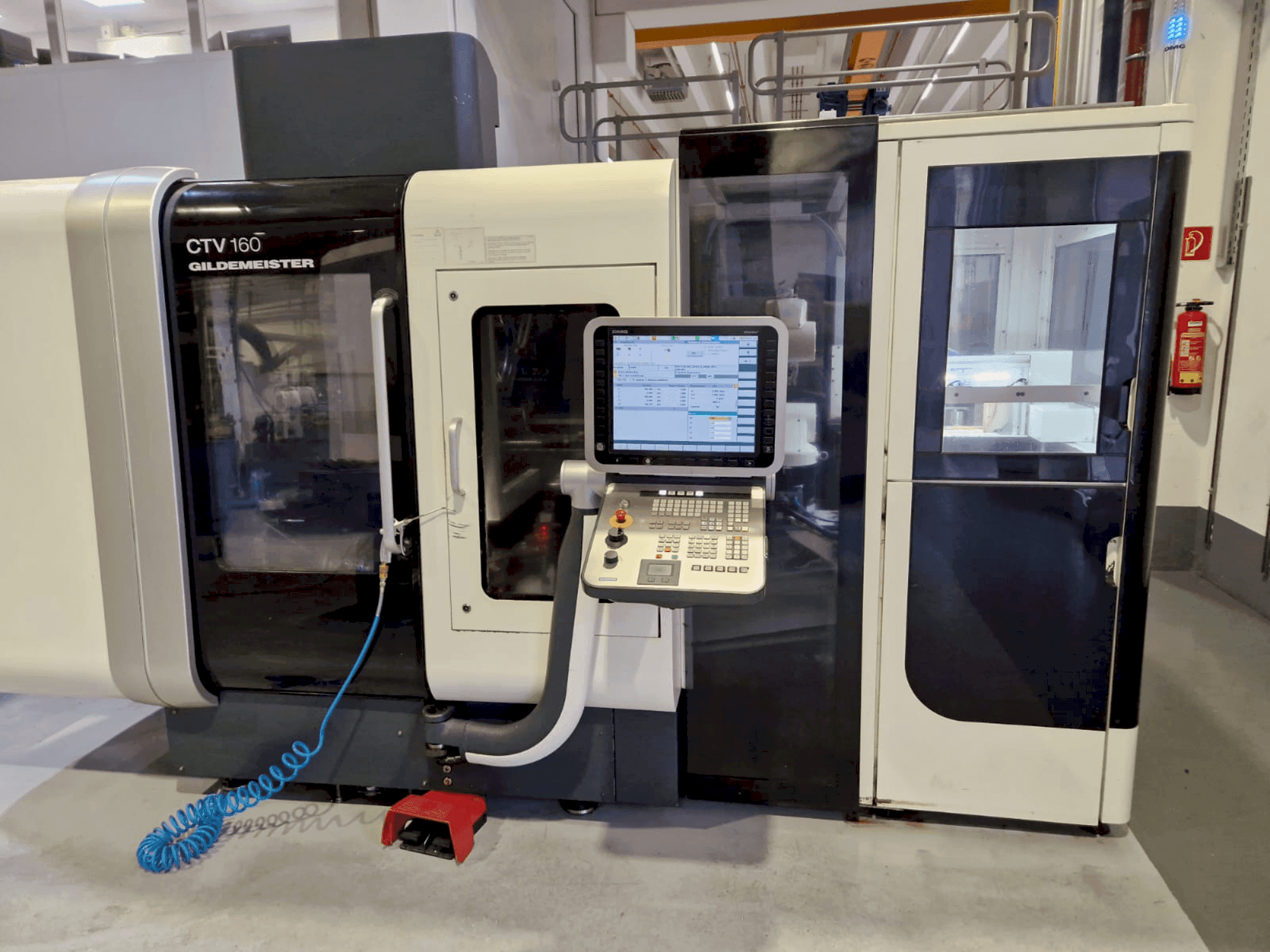

DMG - Gildemeister CTV 160DE-TUR-DMG-2010-00001

Additional equipment

• Machine with one work area and additional parts storage incl. robot
• Tool turret with 12 stations, shank diameter Ø30mm, DIN 69880, all positions driven
• Full clamping cylinder SMW SIN-S-85-LPS-X
• 3-jaw wedge bar power chuck with quick jaw change system, ROTA THW PLUS 165-43 from Schunk
• ARTIS tool breakage monitoring system, type CTM
• Coolant system with belt filter system 40µm, delivery volume 20 / 40 l/min, at 8 / 20 bar respectively, coolant tank volume approx. 600 litres
• Chip conveyor hinged belt design with integrated cooling lubricant tank capacity approx. 120 litres, chip discharge height 1100mm
• Integrated oil mist extraction 400m³/h
• 15-fold pallet circulation system for max. workpiece dimensions of Ø115x60mm, incl. KUKA KR5 sixx R850 robot with 3-finger centric gripper for max. 5.3kg and a gripper turning station
• Camera system for part recognition

Machine Benefits

Qualitative Machine Benefits

• Torque at 100% ed: 135 nm (main drive), 13 nm (tool carrier)
• Torque at 40% ed: 176 nm (main drive), 18 nm (tool carrier)
• Spindle head din 6353 size 140h5
• Max. Actuating force fv at 70 bar: 34 kn

Technical Machine Benefits

• Torque: 135 nm (100% ed), 176 nm (40% ed)
• Max. Workpiece diameter: Ø115 mm / max. Workpiece length: 60 mm
• High-performance main drive and tool carrier
• Quick jaw change system for the 3-jaw power chuck
• Integrated cooling and chip management systems
• Artis tool breakage monitoring system
