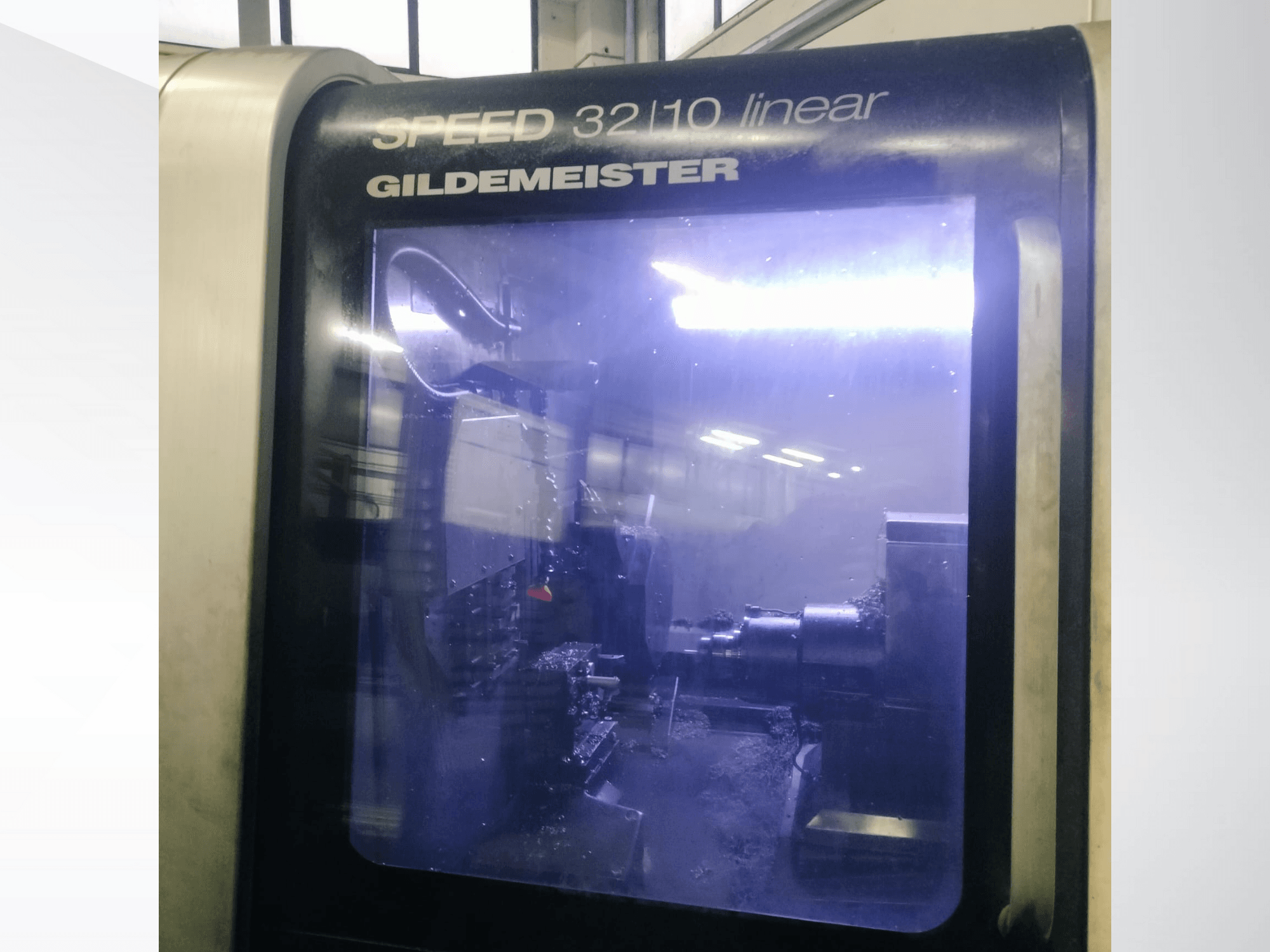

DMG - GILDEMEISTER SPEED 32/10 linear IT-TUR-GIL-2008-00002

CNC: Fanuc 310iS

Panel type: SlimLine

Screen: 15" TFT Color

Controlled spindles (including C axes): 2

Controlled axes: 8

Channels: 3

Bar capacity: 33 mm (36 mm max)

Draw tube inner diameter: 46 mm

Maximum speed: 8000 rpm

Nominal torque (S1): 24 Nm

Nominal power (S1): 5.5 kW

Draw tube inner diameter: 38 mm

Maximum speed: 8000 rpm

Nominal torque (S1): 9.4 Nm

Nominal power (S1): 3.7 kW

Axis X1

• Travel: 50 mm

• Maximum speed: 40 m/min

• Maximum acceleration: 10 m/s²

• Nominal thrust (S1): 1200 N

Axis Y1

• Travel: 350 mm

• Maximum speed: 30 m/min

• Maximum acceleration: 5 m/s²

• Nominal thrust (S1): 5000 N

Axis Z1

• Travel: 320 mm

• Maximum speed: 40 m/min

• Maximum acceleration: 5 m/s²

• Nominal thrust (S1): 2500 N

Axis X2

• Travel: 310 mm

• Maximum speed: 40 m/min

• Maximum acceleration: 5 m/s²

• Nominal thrust (S1): 2500 N

Axis Z2

• Travel: 320 mm

• Maximum speed: 40 m/min

• Maximum acceleration: 5 m/s²

• Nominal thrust (S1): 2500 N

Axis X3

• Travel: 80 mm

• Maximum speed: 40 m/min

• Maximum acceleration: 5 m/s²

• Nominal thrust (S1): 1200 N

Axis Y3

• Travel: 60 mm (±30 mm)

• Maximum speed: 18 m/min

• Maximum acceleration: 5 m/s²

• Nominal thrust (S1): 5000 N

Axis Z3

• Travel: 150 mm

• Maximum speed: 40 m/min

• Maximum acceleration: 5 m/s²

• Nominal thrust (S1): 2500 N

Turret

• Total stations: 16

• Fixed external tools: 8

• Tool shank size: 16×16 mm

• Driven tool stations: 16

• Collet type: ESX/ER 20

• Maximum driven speed: 5000 rpm

• Nominal torque (S1): 4.8 Nm

• Nominal power (S1): 1.5 kW

Tools

Toolholder Slide 1

• Total stations: 10

• Fixed external tools: 6

• Tool shank size: 16×16 mm

• Driven tools: 4

• Collet type: ESX/ER 20

• Maximum driven speed (GEO 7–9): 5000 rpm

• Nominal torque (S1): 2.19 Nm

• Nominal power (S1): 0.55 kW

• Secondary driven speed (GEO 8–10): 3333 rpm

• Nominal torque (S1): 3.28 Nm

• Nominal power (S1): 0.55 kW

Back Working Slide

• Total stations: 4 + 2

• Internal fixed tools: 3

• Toolholder diameter: 25 mm

• External fixed tools: 1

• Driven stations: 2

• Collet type: ESX/ER 16

• Maximum driven speed: 6000 rpm

• Nominal torque (S1): 1.75 Nm

• Nominal power (S1): 0.55 kW

Media

Lubrication System

• Tank capacity: 2.9 L

• Operating pressure: 30 bar

• Stop time: 7 minutes

• Operating cycle time: 30 seconds

• Lubricant type: Castrol Magna BD 68

Pneumatic System

• Minimum operating pressure: 5 bar

• Maximum operating pressure: 6 bar

• Consumption: 60 NL/min
