DMG MORI - CLX 550 V4FR-TUR-DMG-2020-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used DMG MORI CLX 550 V4 For Sale | gindumac.com
This 3-axis DMG MORI CLX 550 V4 was manufactured in 2020. It features a universal lathe with driven tools, a C axis, and a Y axis. Key specs include a 12-station VDI40 turret, a main spindle with a 3,250 rpm and 22/33 kW power, and a hydraulic 3-jaw chuck. Ideal for high precision turning, this machine also comes equipped with a DMG MORI SLIMline® control panel. If you are looking to get high-quality turning capabilities consider the DMG MORI CLX 550 V4 machine we have for sale. Contact us for more information.
Overview
- brand: DMG MORI
- year: 2020
- MODEL: CLX 550 V4
- application type: Turning
- Location: France
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - DMG MORI CLX 550 V4
Control Unit
- Control Brand: SIEMENS
- Control Model: I SLIMline® avec écran multi-tactile (19/ Operate sur SIEMENS)
Movement
- Number of Axes: 3
Additional Information
Universal CNC lathe with driven tools, C axis and Y axis (Y travel ±60 mm)
Control: DMG MORI SLIMline, 19" multi‑touch, Siemens
Main spindle: A2‑8, AC motor 22/33 kW (100/40% ED), up to 3,250 rpm

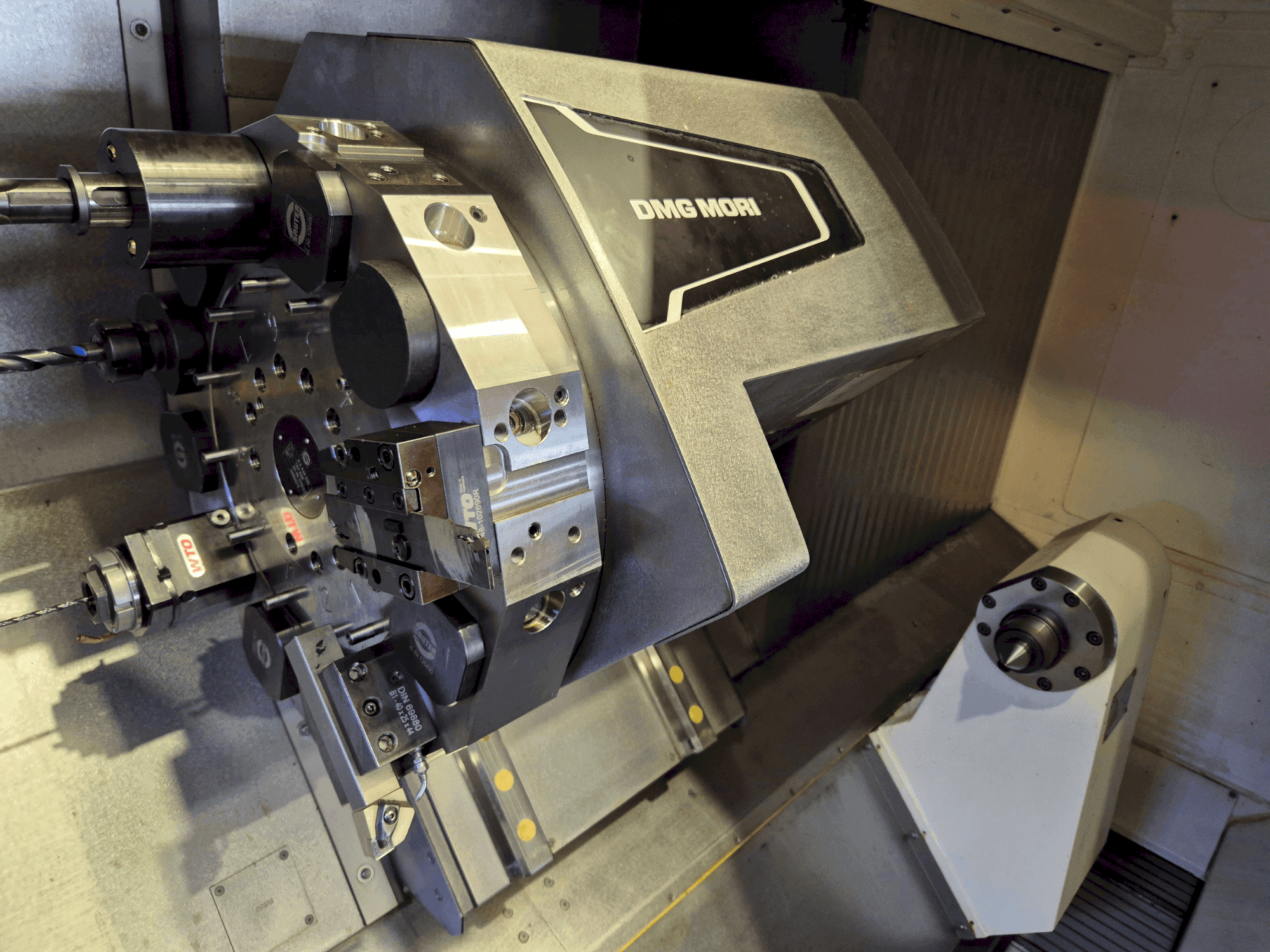

Turret: 12-station VDI40; 12 DIN5480 driven tool positions; 6 BT stations (as provided)
Direct measuring system on X and Y axes
Tailstock with hydraulic movement via foot pedal and M function
Electronic handwheel
Clamping/bar passage:
Hollow clamping device, max. bar diameter 80 mm
Hydraulic clamping device with bar passage max. diameter 102 mm (surcharge)
Differential pressure monitoring for the main spindle
Connectivity: DMG MORI IoTconnector (enables DMG MORI online services)
Additional equipment
Preset/package items:
Manual tool measuring device
Hinged-belt chip conveyor (supplied instead of chip tray)
4‑color signal lamp
Workholding and tooling:
SMW Autoblok BH‑D 320 / A2‑8 hydraulic 3‑jaw chuck, bore 103 mm, clamping range 40–300 mm, with hard jaws and adapters
Set of 3 soft jaws for BH‑D 315
SMW BBD‑210 hydraulic 3‑jaw chuck, 66 mm bore
5 sets of soft jaws for SMW BBD chuck
Reduction tubes for main spindle (D5–D72 mm)
Utilities and accessories:
Coolant gun, 5 bar
60 kVA transformer
Service camera (antenna, transformer, SD card)
Connectivity/services:
DMG NETservice (remote diagnostics/support; installation on external PC)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
