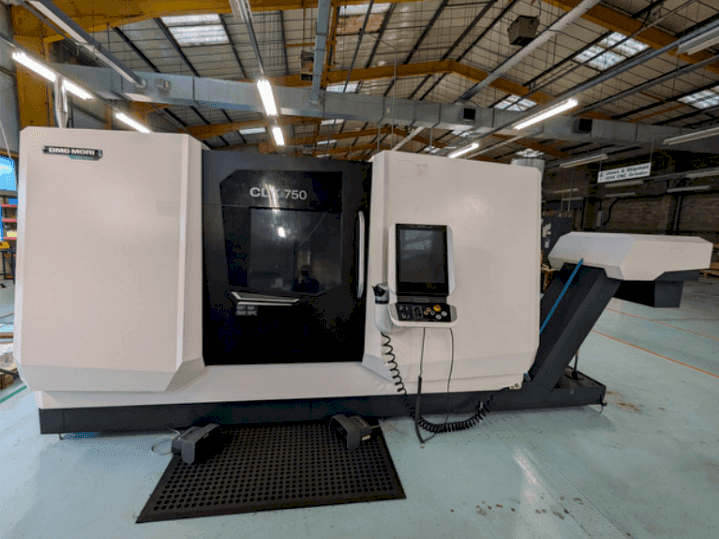

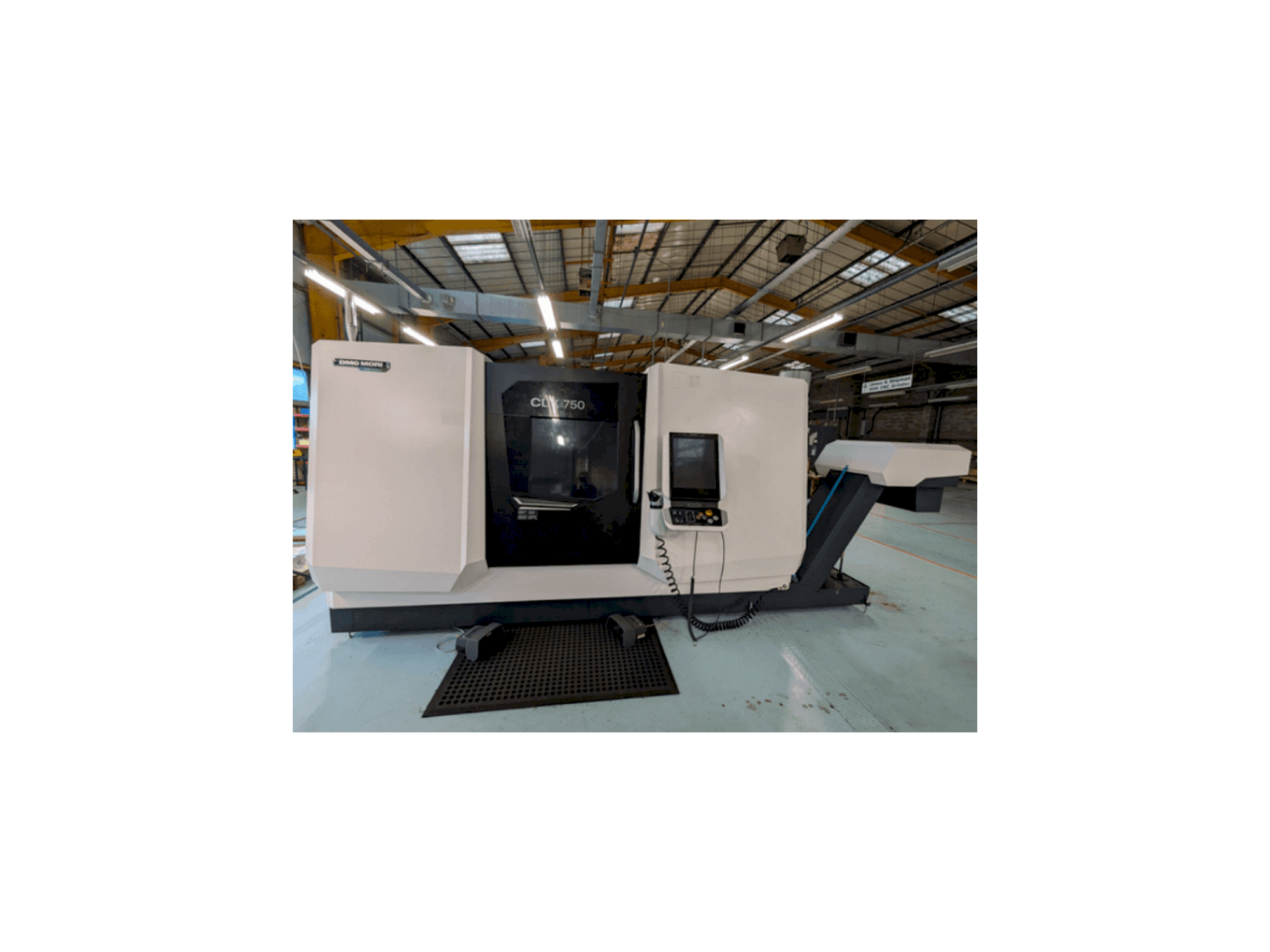

Front view of DMG MORI CLX750 V4 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG MORI CLX750 V4

DMG MORI - CLX750 V4GB-TUR-DMG-2021-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DMG MORI CLX750 V4 Lathe

Show in original language

This DMG MORI CLX750 V4 Lathe was manufactured in the year 2021 and has 707 production hours, of which 175 are spindle hours. It is equipped with a DMG MORI SLIMline® Operate on SIEMENS multi-touch control unit. The machine has a spindle speed of 2000 rpm.

Overview

brand: DMG MORI
year: 2021
MODEL: CLX750 V4
production hours: 707
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - DMG MORI CLX750 V4

Control Unit

Model: multi-touch control
Brand: SIEMENS

Main drive

Spindle speed range: 2000 1/MIN
Spindle motor power: 36 / 46 kW

Movement

X-AXIS Movement: 435 mm
Y-AXIS Movement: 160 mm
Z-AXIS Movement: 1300 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool turret: 12-station servo turret vdi 50 with 12 driven tool stations
- - Bar passage: hydraulic partial hollow clamping cylinder - 127 mm dia
- - Tailstock: hydraulic tailstock controlled by foot pedals and m functions
- - Handwheel: electronic handwheel
- - Tool setter: tool pre-setting probe (manual)
- - Conveyor: chip conveyor instead of chip tank
- - Status: light 4-colour signal lamp
- - Chuck - main spindle: hydraulic 3-jaw chuck, d 400 mm
- - Spray gun: coolant spray gun, 5 bar
- - High pressure coolant: 5-20 bar (adjustable) - double cartridge filter
Qualitative Machine Benefits:
- - Oil / mist separator: filtermist fx4002 mist extraction unit
- - Tool holder package: 6 x static tools & 3 x driven tools
- - Software option: technology cycle alternating speed (turning)
- - Software option: technology cycle easy tool monitoring 2. 0
- - 3d model: 3d data model in step

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
