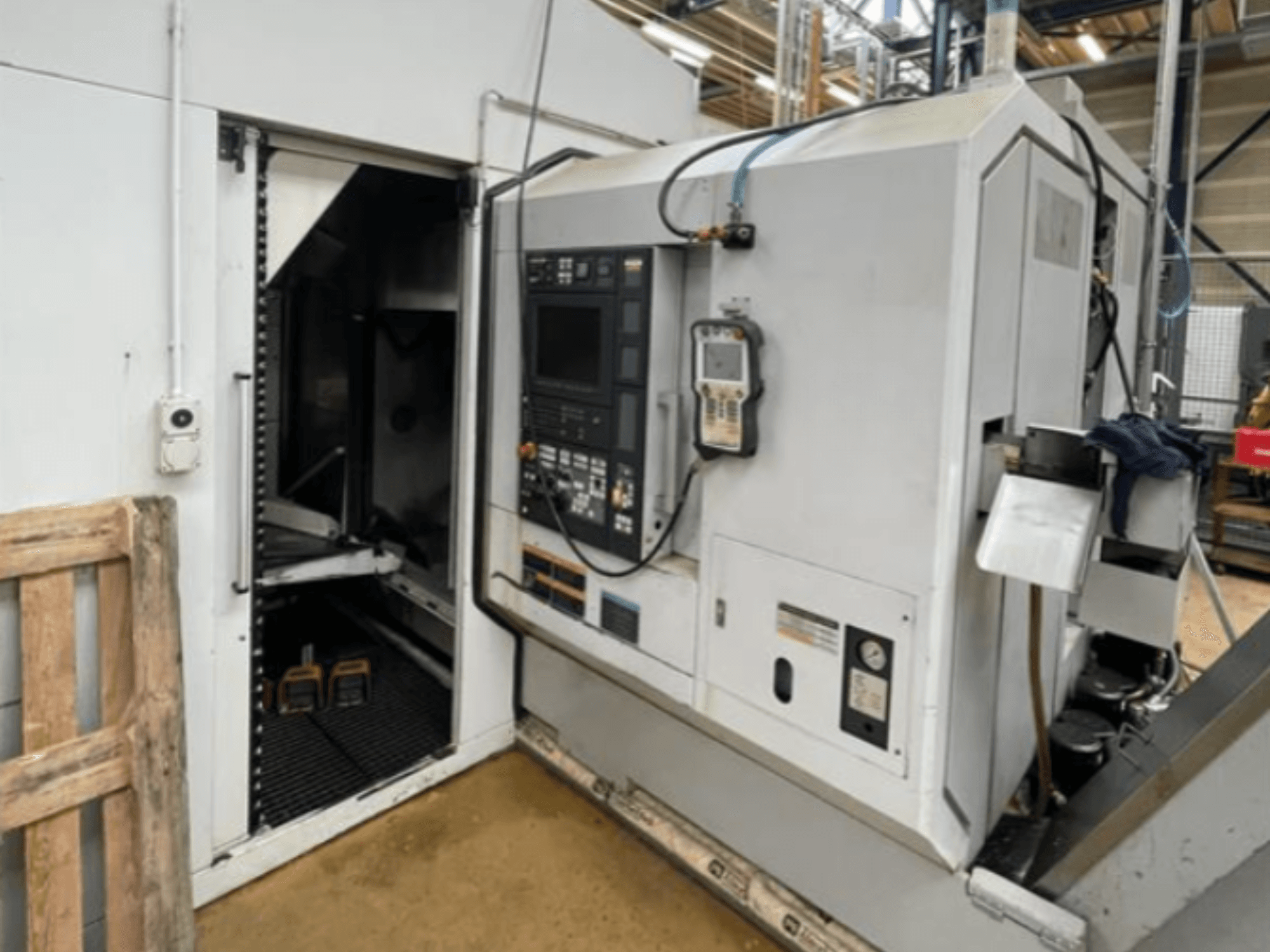

This 6-axis DMG Mori Seiki NZ2000T3Y2 was manufactured in 2008. It features a maximum machining diameter of 200 mm and a maximum machining length of 260 mm. The bar machining capacity is 65 mm, with an X-axis travel of 210 mm, Z-axis travel of 810 mm, and Y-axis travel of 110 mm. If you are looking to get high-quality turning capabilities, consider the DMG Mori Seiki NZ2000T3Y2 machine we have for sale. Contact us for further details.
Overview
- brand: DMG Mori Seiki
- year: 2008
- MODEL: NZ2000T3Y2
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand:
Technical Information - DMG Mori Seiki NZ2000T3Y2
Dimensions
- Machine Weight: 9500 kg
Movement
- Number of Axes: 6
- X-axis Travel: 210 mm
- Y-axis Travel: 110 mm
- Z-axis Travel: 810 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
Additional Information
Max. machining diameter: φ200 mm
Max. machining length: 260 mm
Bar machining capacity: φ65 mm
Phase: 3
Frequency: 50 Hz
Voltage: AC 200 V
Full load current: 283 A
Spindle motor current rating: 105 A
Short circuit current: 1 kA
Maximum voltage: 220 V
Rated power: 98 kVA
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
