➤ Used DN SOLUTIONS DNM 6700 For Sale | gindumac.com

Show in original language

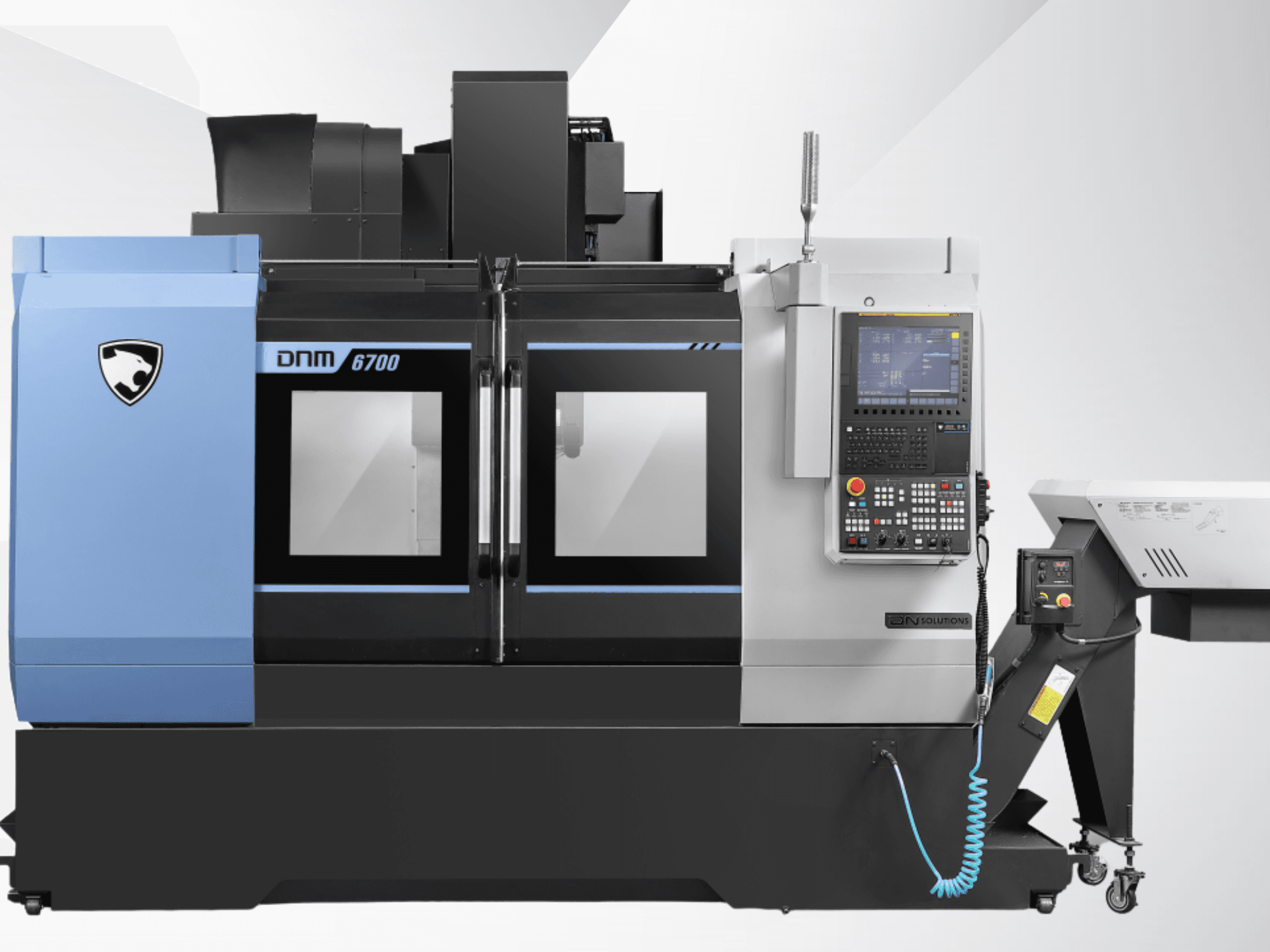

This 3-axis DN SOLUTIONS DNM 6700 was manufactured in 2024. It features an impressive X-axis travel of 1,300 mm, Y-axis travel of 670 mm, and Z-axis travel of 625 mm. The machine includes a robust table size of 1,500 × 670 mm and a maximum table load of 1,300 kg. If you are looking to get high-quality machining capabilities, consider the DN SOLUTIONS DNM 6700 vertical machining centre we have for sale. Contact us for further details.

Overview

brand: DN SOLUTIONS
year: 2024
MODEL: DNM 6700
application type: Milling
Location: Portugal
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - DN SOLUTIONS DNM 6700

Control Unit

Control Brand: FANUC
Control Model: i series

Dimensions

Table Load: 1300 kg

Movement

Number of Axes: 3
X-axis Travel: 1300 mm
Y-axis Travel: 670 mm
Z-axis Travel: 625 mm

Technical Specification

Spindle Power: 15 kW
Spindle Speed: 12000 RPM
Tool Stations: 30

Additional Information

15" color touchscreen display
Absolute feedback system
CE certified
Metric configuration
Power supply: 3-phase AC 380V / 50Hz
Table size: 1,500 × 670 mm
Spindle motor power: 15 / 11 kW
Spindle taper: BIG PLUS BT40
Spindle head cooling system
Tool magazine type: geared driven
Tool holder type: BIG PLUS BT40
Rapid traverse (X/Y/Z): 36 / 36 / 30 m/min
Flood coolant pump: 0.4 kW / 0.15 MPa / 40 L/min
Through-spindle coolant: 1.5 kW / 2.0 MPa (20 bar)
Embedded Ethernet
Program storage: 5,120 m (2 MB)
Program capacity: 1,000 programs
AICC II – 200 blocks
iHMI Easy Operating System (EZI & Machining Cycle)
Built-in transformer
Electrical line filter

Additional equipment

Hinged belt chip conveyor (right side)
Portable MPG handwheel
Additional axis preparation (1 axis wiring & pneumatics)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
