➤ Used Litz CV1200A For Sale | gindumac.com

Show in original language

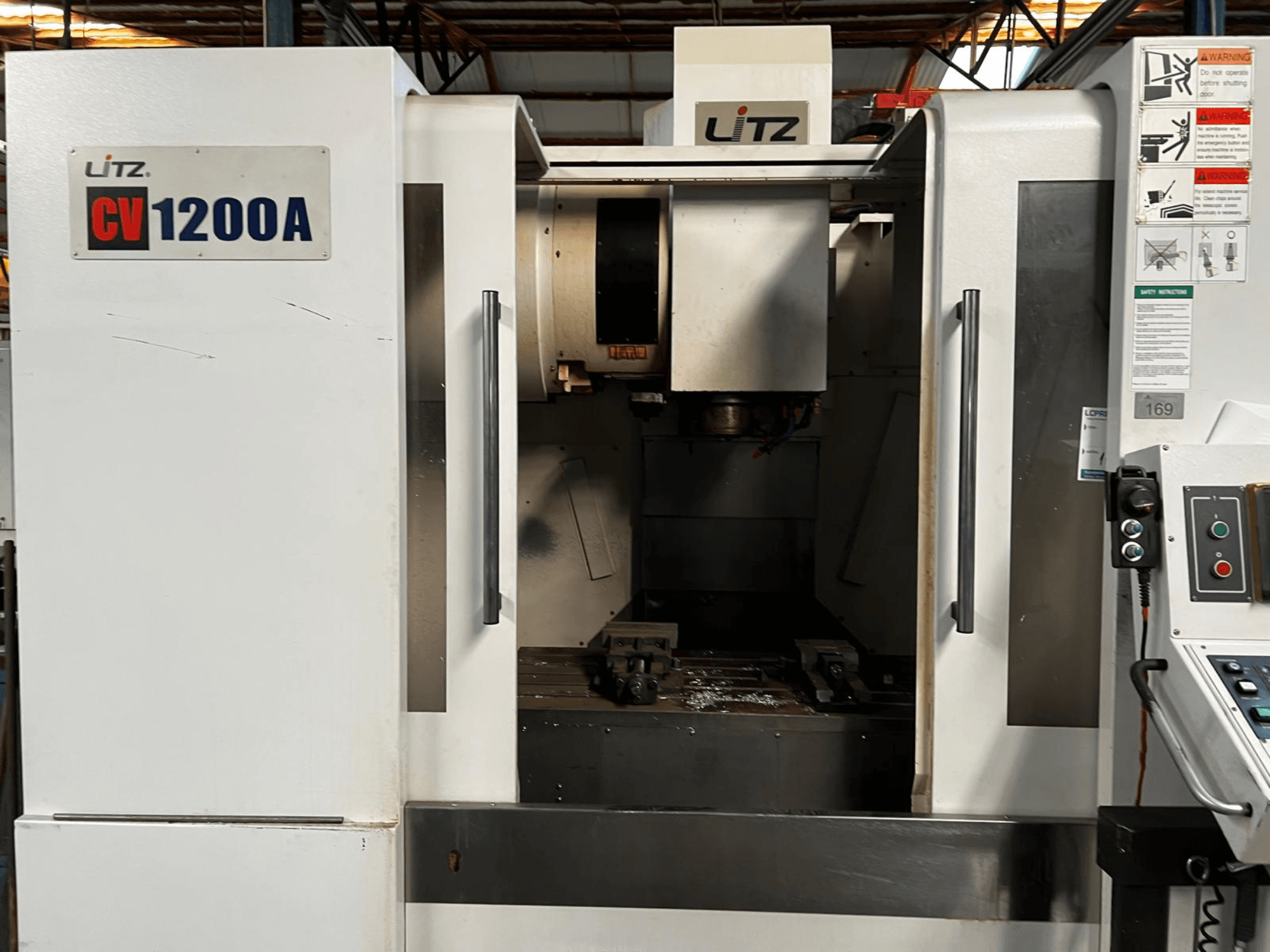

This 3-axis Litz CV1200A was manufactured in 2016. It features an X-axis travel of 1,200 mm, Y-axis travel of 600 mm, and Z-axis travel of 600 mm. The machine includes a table dimension of 1,350 x 600 mm and a maximum table load of approximately 1,000 kg. If you are looking to get high-quality machining capabilities, consider the Litz CV1200A vertical machining centre we have for sale. Contact us for further details.

Overview

brand: Litz
year: 2016
MODEL: CV1200A
application type: Milling
Location: Portugal
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Litz CV1200A

Control Unit

Control Brand: FANUC
Control Model: Series 0i-MF

Dimensions

Table Load: 1000 kg

Movement

Number of Axes: 3
X-axis Travel: 1200 mm
Y-axis Travel: 600 mm
Z-axis Travel: 600 mm

Technical Specification

Spindle Speed: 10000 RPM
Taper Size: BT 40

Additional Information

Table dimensions: 1,350 x 600 mm
Tool change time (tool-to-tool): 2.0 s
CNC control: frequently equipped with Fanuc Series 0i-MF (LCD screen, Manual Guide)
Rapid traverse (X/Y/Z): 36 / 36 / 24 m/min
Guideways: high-rigidity roller linear guideways for heavy cutting

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
