Litz - TV500PT-MIL-LIT-2014-00001

30,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

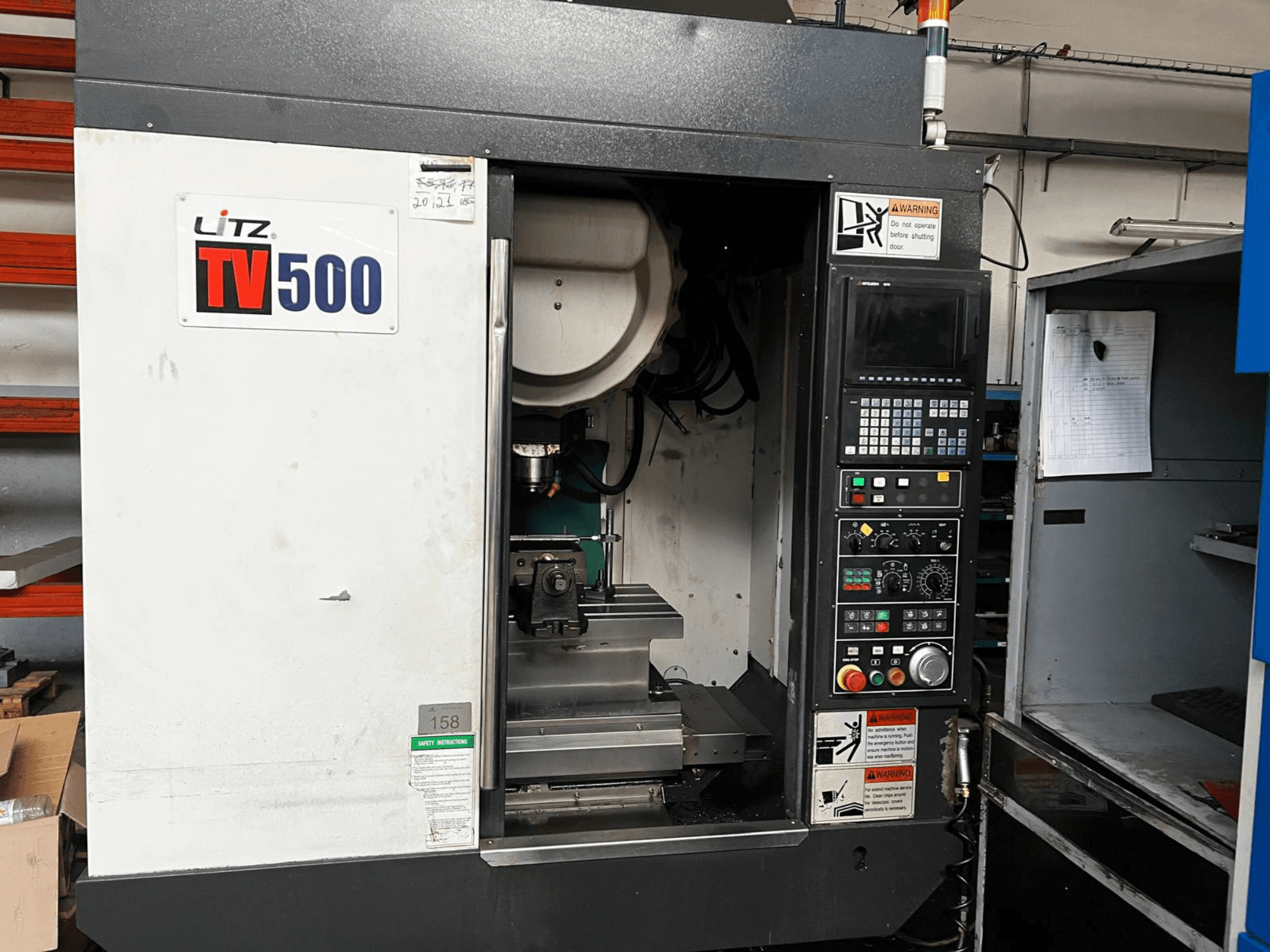

This 3-axis Litz TV500 was manufactured in 2014. It features an X-axis travel of 500 mm, Y-axis travel of 400 mm, and Z-axis travel of 330 mm. The machine includes a table size of 650 × 400 mm and a maximum table load of 250 kg. If you are looking to get high-quality machining capabilities, consider the Litz TV500 vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: Litz
  • year: 2014
  • MODEL: TV500
  • application type: Milling
  • Location: Portugal
  • machine type: Vertical Machining Centre
  • control unit brand: FANUC

Technical Information - Litz TV500

Control Unit

  • Control Brand: FANUC

Dimensions

  • Machine Weight: 2800 kg
  • Table Load: 250 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 500 mm
  • Y-axis Travel: 400 mm
  • Z-axis Travel: 330 mm

Technical Specification

  • Max. Tool Weight: 3 kg
  • Spindle Power: 5.5 kW
  • Spindle Speed: 12000 RPM
  • Taper Size: BT 30
  • Tool Stations: 16

Additional Information

  • Table size: 650 × 400 mm

  • Maximum tool diameter: 60–80 mm

  • Maximum tool length: 250 mm

  • Rapid traverse rate (X/Y/Z): 60 m/min

  • Power requirement: 15 kVA

  • Coolant tank capacity: 200 L

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
