DOOSAN - Lynx 2100 A HU-TUR-DOO-2018-00001

Name: DOOSAN Lynx 2100 A
Brand: DOOSAN
SKU: HU-TUR-DOO-2018-00001
Price: 50000 EUR
Availability: InStock

50,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN Lynx 2100 A For Sale | gindumac.com

Show in original language

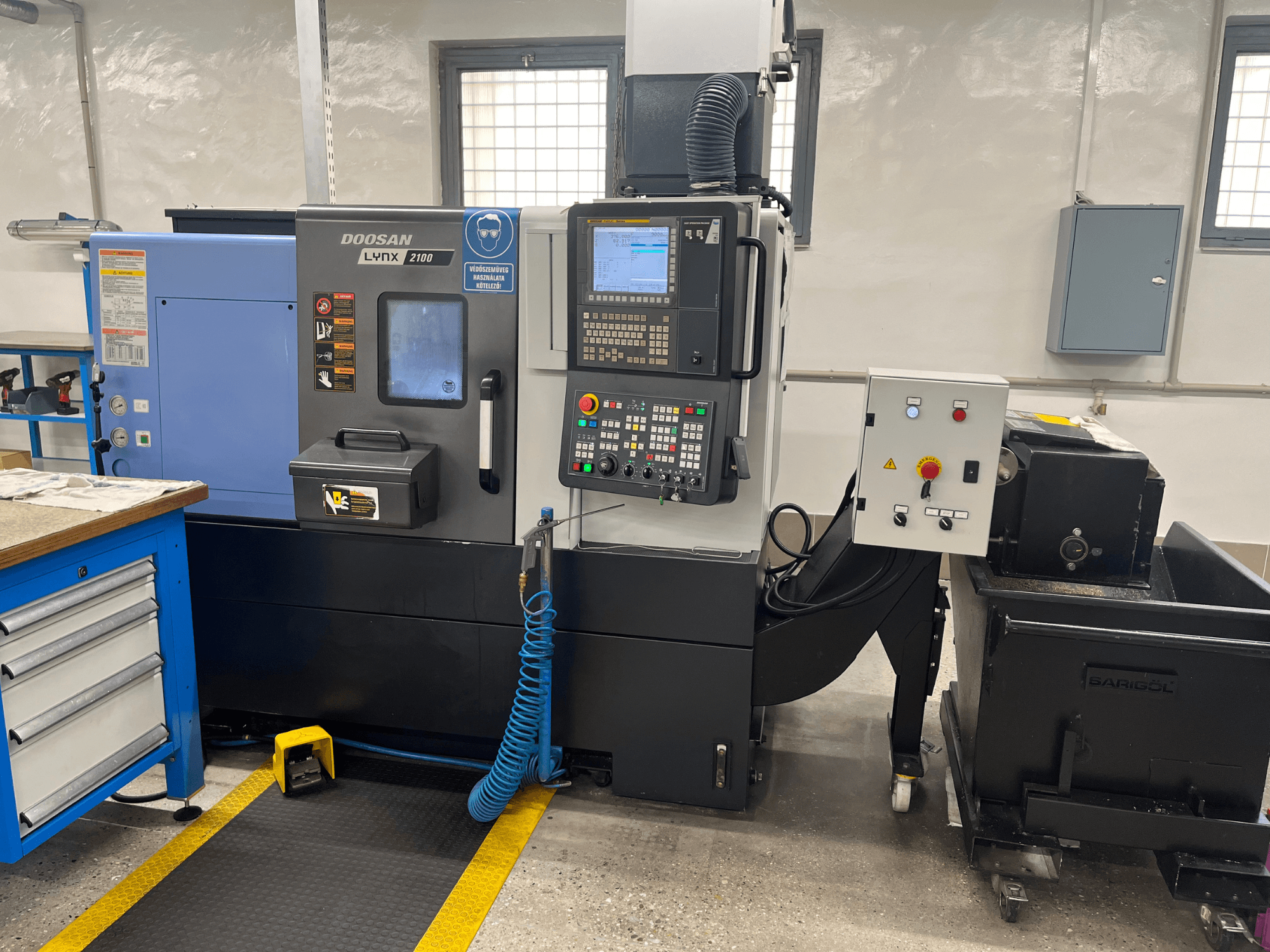

This DOOSAN Lynx 2100 A horizontal turning machine was manufactured in 2018. It features a Fanuc F0i control, a main spindle speed of 5,000 rpm, and a chuck size of 210 mm. The bar capacity through the spindle is Ø52 mm, with a maximum turning diameter of Ø350 mm and length of 330 mm. Rapid traverse rates are 30 m/min. Consider the opportunity to buy this DOOSAN Lynx 2100 A horizontal turning machine. Contact us for more information.

Overview

brand: DOOSAN
year: 2018
MODEL: Lynx 2100 A
application type: Turning
Location: Hungary
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DOOSAN Lynx 2100 A

Control Unit

Control Brand: FANUC
Control Model: F0i

Movement

Number of Axes: 2

Technical Specification

Spindle Speed: 5000 RPM

Additional Information

Operating hours: 6,193 h
Chuck size (main spindle): 8" (210 mm)
Bar capacity through spindle: Ø52 mm
Maximum turning diameter: Ø350 mm
Maximum turning length: 330 mm
Rapid traverse (X/Z): 30 m/min
Tool shank size: 25 × 25 mm (Ø32 mm)
Number of turret stations: 12 (tool change time: 0.15 sec)
Basic toolholder set
Programmable tailstock with live center
Oil mist extractor
CE certification and transformer

Additional equipment

Doosan tool load monitoring system
Bar feeder interface
Part catcher with collection box
Automatic tool presetter
High-pressure coolant system (7 bar / 1.1 kW)
Oil skimmer
Chip conveyor
Electrical noise filter

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
