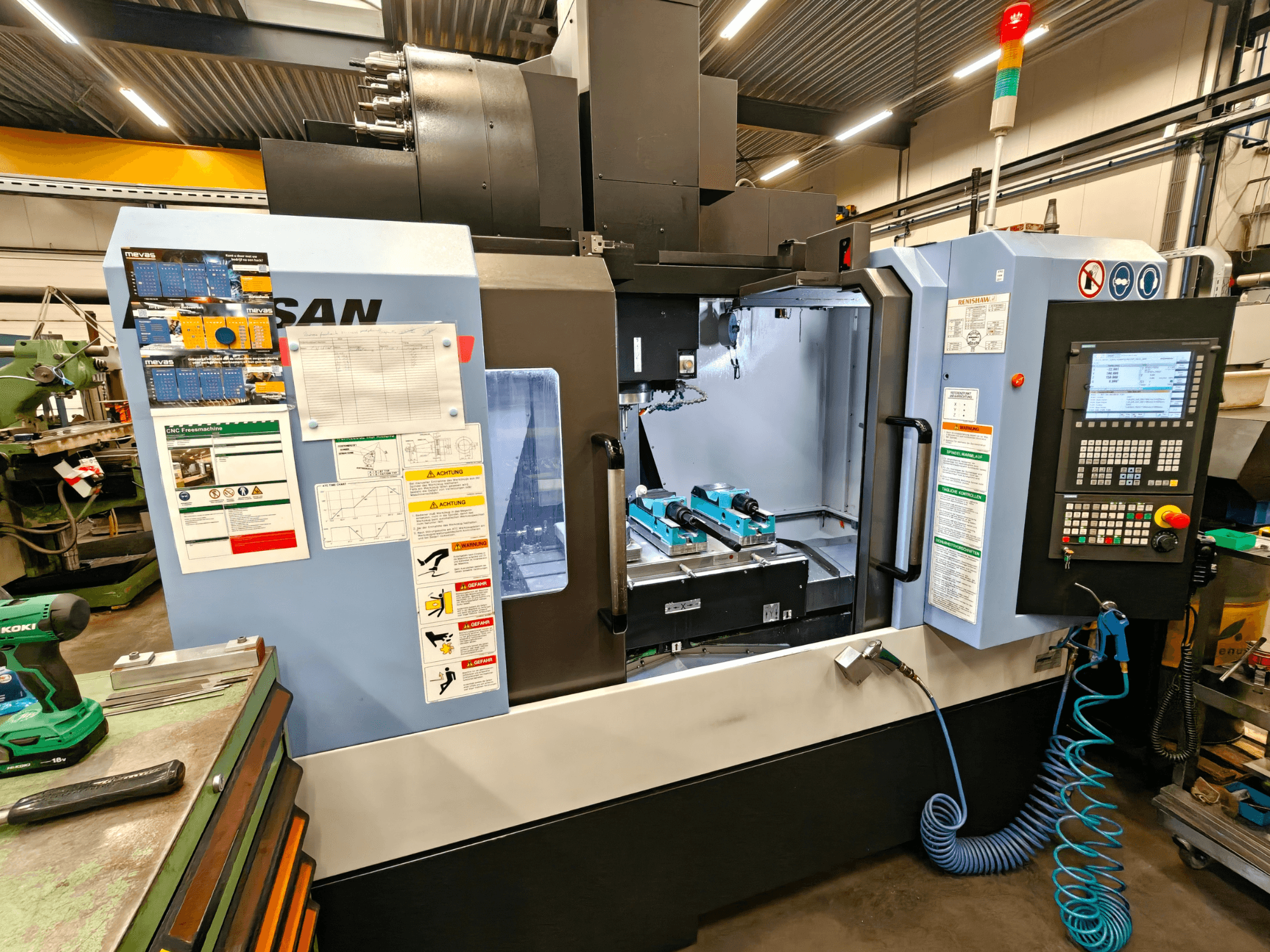

This 3-axis DOOSAN DNM 400 II was manufactured in 2014. It features an X-axis travel of 762 mm, Y-axis travel of 435 mm, and Z-axis travel of 510 mm. The machine includes a worktable with dimensions of 920 mm x 435 mm and a maximum table load of 600 kg. If you are looking to get high-quality machining capabilities, consider the DOOSAN DNM 400 II vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: DOOSAN
- year: 2014
- MODEL: DNM 400 II
- application type: Milling
- Location: Netherlands
- machine type: Vertical Machining Centre
- Available from: 31/07/2026
- control unit brand: SIEMENS
Technical Information - DOOSAN DNM 400 II
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 828D
Dimensions
- Table Load: 600 kg
Movement
- Number of Axes: 3
- X-axis Travel: 762 mm
- Y-axis Travel: 435 mm
- Z-axis Travel: 510 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Number of Tools: 30
- Spindle Power: 18.5 kW
- Spindle Speed: 12000 RPM
- Taper Size: BT 40
Additional Information
Capacity and travels:
Spindle nose to table: 150–660 mm
Worktable:
Size: 920 x 435 mm (36.2" x 17.1")
Spindle:
Max torque: 117 N·m (86.3 ft-lbs)
Taper: BIG-PLUS Dual Contact #40 (BT40 / CAT40)
Cooling: Through-spindle coolant (included)
Automatic Tool Changer (ATC):
Capacity: 30 tools (cam-type double arm)
Tool-to-tool time: 1.3 s
Max tool length: 300 mm
Feed rates and motion:
Rapid traverse (X/Y): 36 m/min (1,417 IPM)
Rapid traverse (Z): 30 m/min (1,181 IPM)
Max cutting feedrate: 10,000 mm/min
Additional equipment
Workpiece clamps, tools, and toolholders available at additional cost (not included)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
