DOOSAN DNM 5700

Photo Gallery

DOOSAN - DNM 5700SK-MIL-DOO-2016-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan DNM 5700 Milling

Show in original language

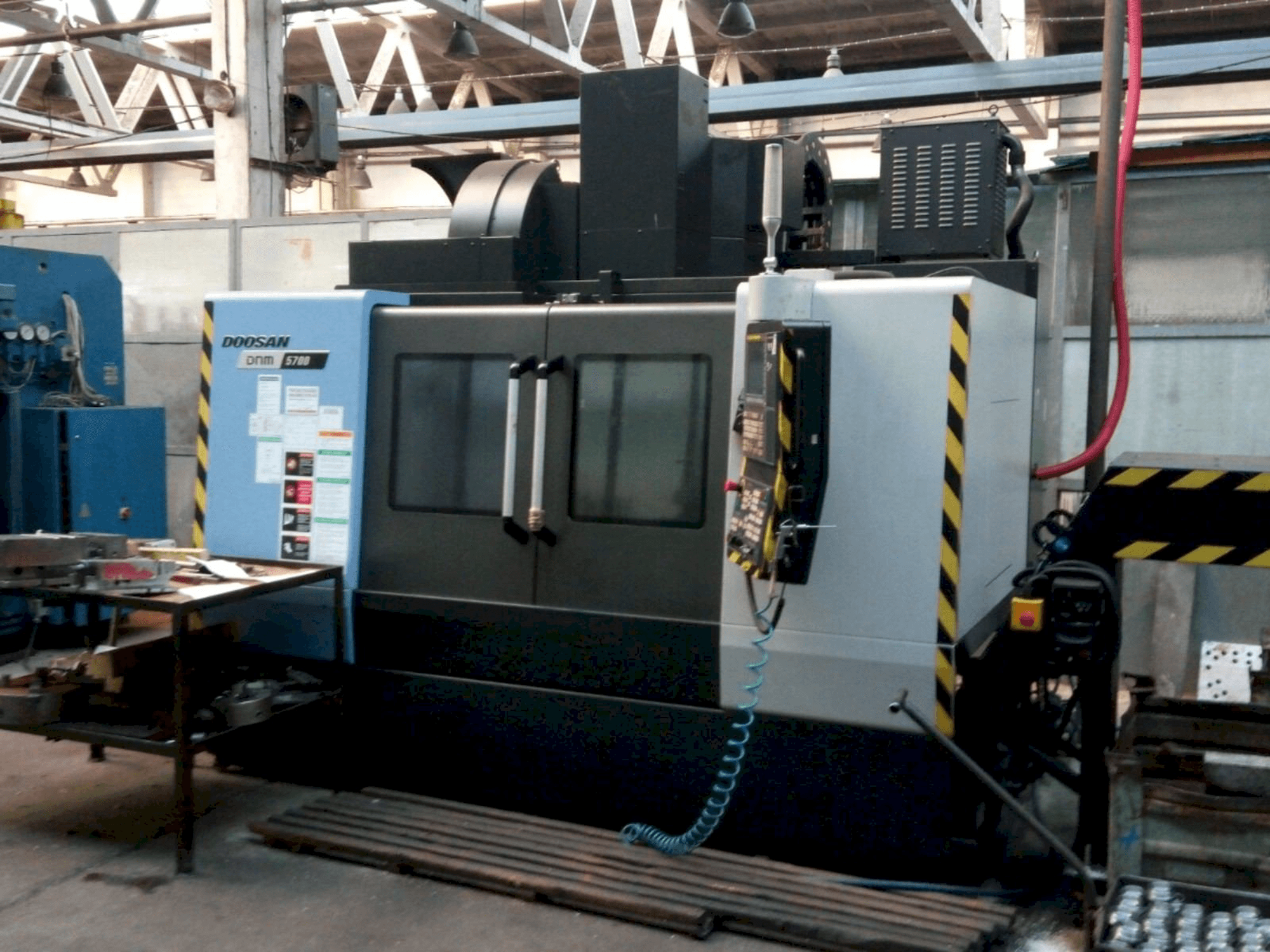

This Doosan DNM 5700 Vertical Machining Center was built in South Korea in the year 2016. It has 2848 hours of working time. It is equipped with a Fanuc i Series control unit. This machine can work with a spindle speed of 8000 rpm. The machine includes a set of tool holders.

Overview

brand: DOOSAN
year: 2016
MODEL: DNM 5700
production hours: 2848
application type: Milling
Location: Slovakia
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN DNM 5700

Control Unit

Control Brand: FANUC
Control Model: i Series

Dimensions

Machine Depth: 3110 mm
Machine Height: 2985 mm
Machine Weight: 6500 kg
Table Length: 1300 mm
Table Width: 570 mm

Movement

Number of Axes: 3
X-axis Travel: 1050 mm
Y-axis Travel: 570 mm
Z-axis Travel: 510 mm

Technical Specification

Max. Tool Weight: 8 kg
Number of Tools: 30
Spindle Speed: 8000 RPM
Through-spindle Coolant: Yes

Additional Information

Additional equipment

Set of tool holders

Machine Benefits

Qualitative Machine Benefits

Very good condition, low hours

Technical Machine Benefits

Simultaneous axis operation
Distance spindle nose/table surface 150-660 mm
Rapid feedrates x/y/z 36/36/30 m/min
Spindle motor power (cont. /15 min. ) 11/18. 5 kw
High pressure cooling with filter 12 bar
Coolant tank 310 l
Renishaw ts27r tool probe
3 controlled axis

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
