➤ Used DOOSAN DNM 650 II For Sale | gindumac.com

Show in original language

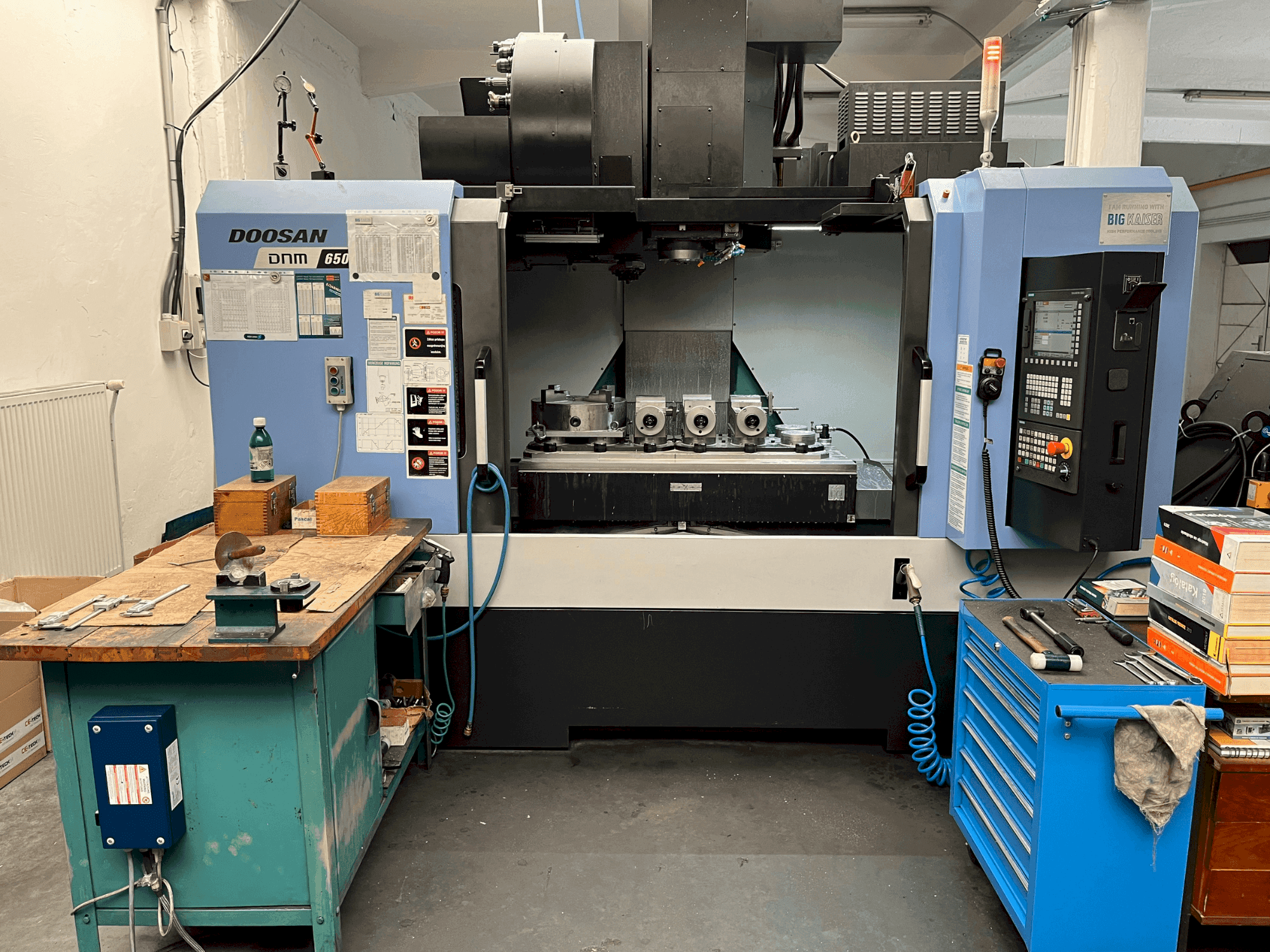

This 3-axis DOOSAN DNM 650 II vertical machining center was manufactured in 2015. It features a Siemens 828D control, a spacious 1300 x 670mm table, and a robust 18.5 kW spindle motor achieving speeds up to 12000rpm. The machine includes a 30-position tool changer and SK40 tool taper, enhanced by a RENISHAW probe and internal cooling capabilities. If you are looking to get high-quality milling capabilities consider the DOOSAN DNM 650 II machine we have for sale. Contact us for more information.

Overview

brand: DOOSAN
year: 2015
MODEL: DNM 650 II
application type: Milling
Location: Slovakia
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - DOOSAN DNM 650 II

Control Unit

Control Brand: SIEMENS
Control Model: 828D

Dimensions

Machine Depth: 4345 mm
Machine Height: 2815 mm
Machine Weight: 8500 kg

Movement

Number of Axes: 3
X-axis Travel: 1270 mm
Y-axis Travel: 670 mm
Z-axis Travel: 625 mm

Technical Specification

Spindle Power: 18.5 kW
Spindle Speed: 12000 RPM

Additional Information

Additional equipment

RENISHAW tool and workpiece probe
Internal cooling through the spindle: 12 Bar
External spindle cooling with air and cutting fluid
Belt chip conveyor
Rinsing gun
Coolant tank: 380 l
Preparation for the 4th person
External memory: 1 GB
Block reading for 3D machining
Handwheel

Machine Benefits

Technical Machine Benefits

Table size: 1300 x 670 mm
Min - max height under spindle: 150 ~ 775 mm
Spindle centre to column distance: 747 mm
Tool changer: 30 positions

Extra Information

Tooling, clamps, magnets available at extra charge. Machine was used for custom production in single-shift operation most of the time.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
