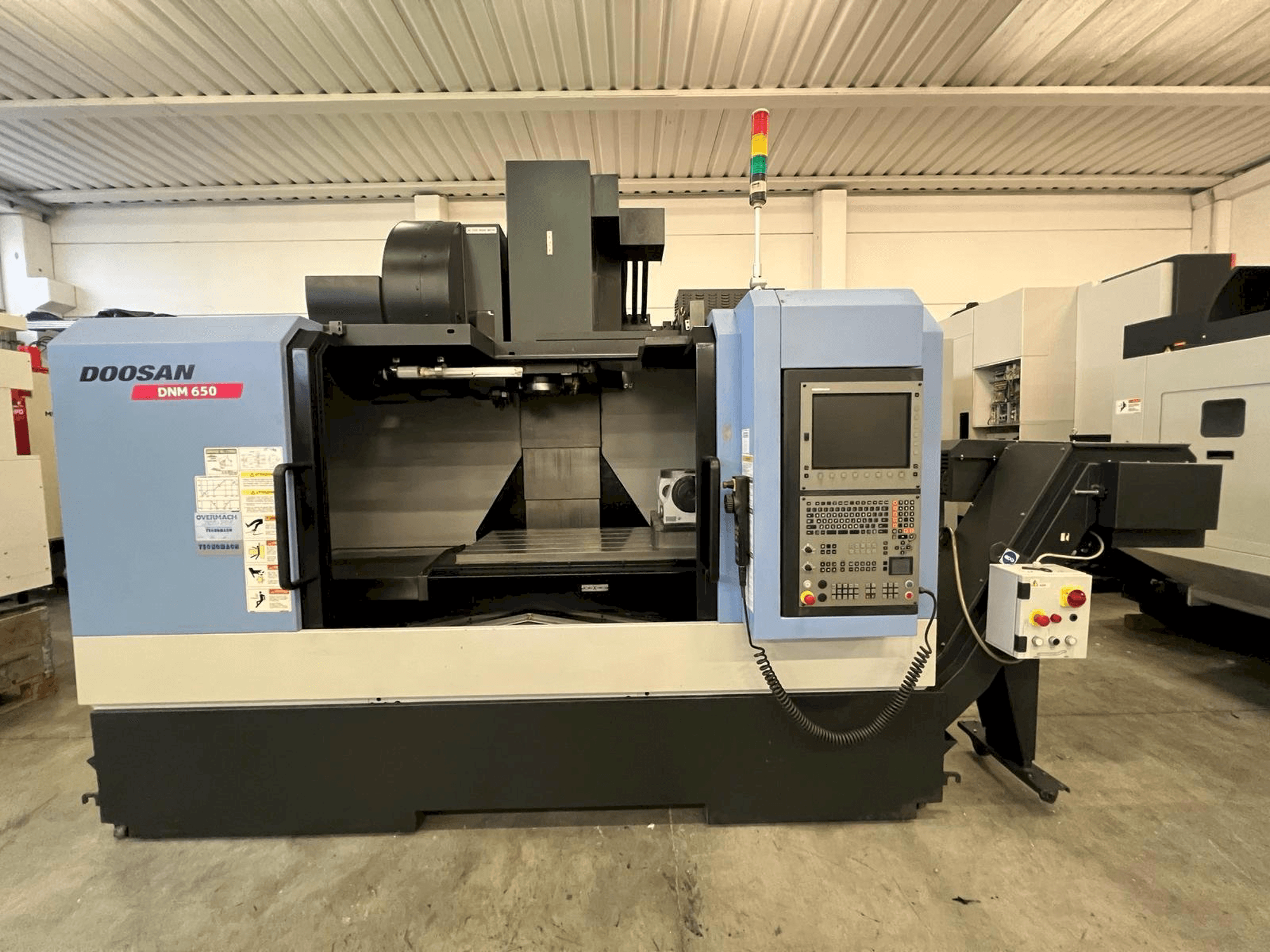

Front view of DOOSAN DNM 650  machine

DOOSAN DNM 650

DOOSAN - DNM 650

2012

75,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This DOOSAN DNM 650 Vertical Machining Centre was manufactured in 2012 in South Korea. It is equipped with a HEIDENHAIN iTNC 530 control and internal cooling - IKZ - 18 bar. This 5-axis machining centre has a ISO 40 spindle with 12,000 rpm and 18kW motor power. It comes with presetting, chip conveyor and a 30 tool magazine. The table size is 1300 x 700 mm.

Overview

  • brand: DOOSAN
  • year: 2012
  • MODEL: DNM 650
  • application type: Milling
  • Location: Italy
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: HEIDENHAIN
  • GINDUMAC ID: IT-MIL-DOO-2012-00003

Technical Information

General Data

  • Machine weight: 8500 kg

Control Unit

  • Brand: HEIDENHAIN
  • Model: iTNC 530

Main drive

  • Spindle speed range: 12000 1/MIN
  • Spindle motor power: 18.5 kW
  • Tool taper: ISO 40
  • Number of axis: 5

Movement

  • X-AXIS Movement: 1270 MM
  • Y-AXIS Movement: 650 MM
  • Z-AXIS Movement: 610 MM

Table

  • Outer length: 1300 mm
  • Outer width: 700 mm

Tools

  • Number of stations: 30
  • Type of tool holder: ISO 40

Media

  • Chip conveyor: Yes
  • Internal cooling: Yes

    Additional Equipment

    • - Internal Cooling - IKZ - 18 bar
    • - Chip Conveyor

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Presetting: yes

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

    Your account manager:

    Borja Garcia

    Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

    get in contact

    Payment Terms

    • Payment in advance
