- ➤ Used DOOSAN HM 800 - 2008 - Horizontal machine centre

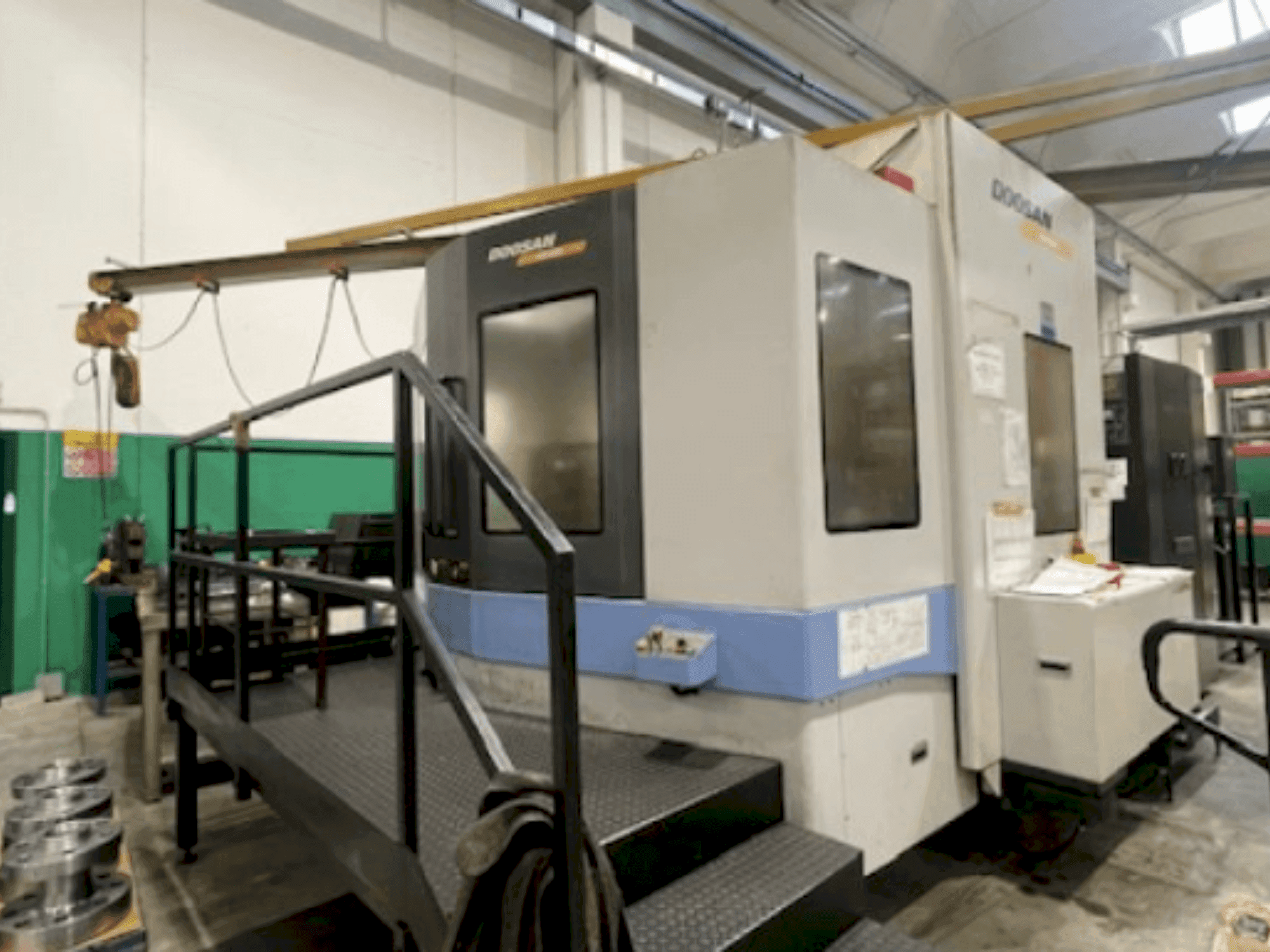

This 4-Axis DOOSAN HM 800, a 2008 horizontal machining centre, offers high performance with the CNC FANUC 18i–MB control system. It has extensive strokes: 1250 mm on the X-axis and 1000 mm on the Y and Z axes, with rapid movements of 24 m/min on all axes. The dual pallet system, each 800 x 800 mm, has a 1600 kg load capacity. Its spindle reaches 6000 rpm with a 22/26 kW motor output. A 90-position tool chain and high-pressure coolant system ensure optimal cutting. Contact us for more details.
Overview
- brand: DOOSAN
- year: 2008
- MODEL: HM 800
- application type: Milling
- Location: Italy
- machine type: Machining centers (horizontal)
- availability: Sold
- control unit brand: Fanuc
Technical Information - DOOSAN HM 800
General Data
- Machine weight: 20000 kg
Control Unit
- Brand: Fanuc
- Model: 18i–MB
Main drive
- Number of spindles: 1
- Spindle speed range: 6000 rpm 1/MIN
- Spindle motor power: 22/26 Kw
- Tool taper: ISO 50 Din 69871
- Number of axis: 4
Movement
- X-AXIS Movement: 1250 mm
- X-AXIS Rapid traverse: 24 m/min
- Y-AXIS Movement: 1000 mm
- Y-AXIS Rapid traverse: 24 m/min
- Z-AXIS Movement: 1000 mm
- Z-AXIS Rapid traverse: 24 m/min
Tools
- Number of stations: 90
Media
- Chip conveyor: Yes
Additional Equipment
- - 2 Pallets (dimensions 800 x 800 mm, indexing 1°, weight allowed on the pallet: 1600 kg)
- - Remote electronic handwheel
Additional Information
- Technical Machine Benefits:
- - High-speed spindle (6000 rpm) with significant motor power (22/26 kw) supports heavy-duty machining.
- - Rapid movement of 24 m/min on all axes ensures quick positioning and reduced cycle times.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
