- ➤ Used DOOSAN HP 6300 - Horizontal Machining Center
Show in original language

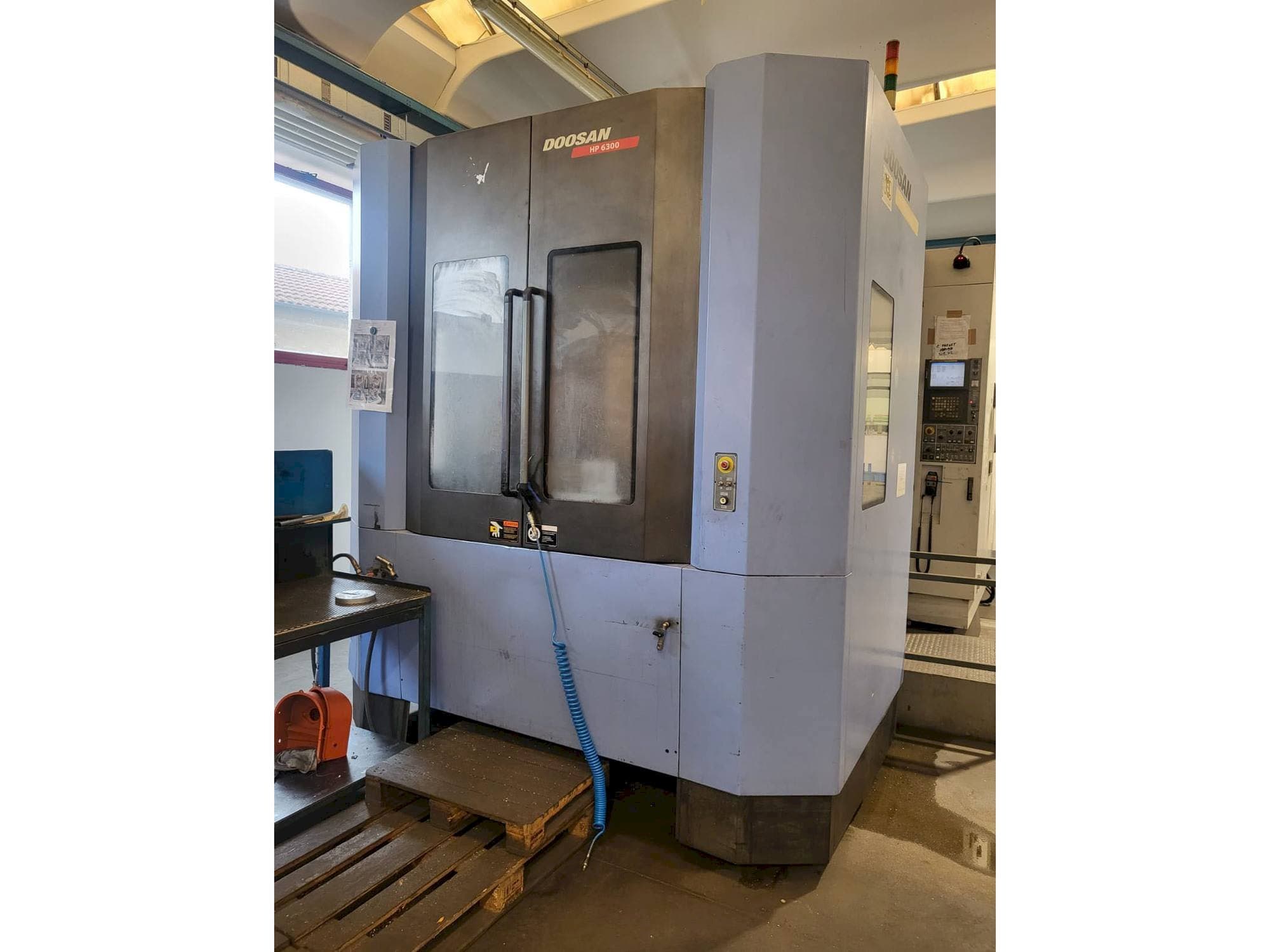

This DOOSAN HP 6300 Horizontal Machining center was made in 2007 in Korea. It is equipped with a Fanuc Series 18i-MB control unit.
Overview
- brand: DOOSAN
- year: 2007
- MODEL: HP 6300
- application type: Milling
- Location: Italy
- machine type: Horizontal Machining Centre
- control unit brand: FANUC
Technical Information - DOOSAN HP 6300
Control Unit
- Control Brand: FANUC
- Control Model: SERIES 18i-MB
Dimensions
- Machine Weight: 12000 kg
Movement
- X-axis Travel: 1000 mm
- Y-axis Travel: 850 mm
- Z-axis Travel: 850 mm
Additional Information
Machine Benefits
Technical Machine Benefits
- Working feed rates: 1:24000 mm/min
- Ball screw diameter and pitch: diam. 50xp16 mm
- Positioning accuracy mm +/- 0. 005 / full stroke
- Repeatability mm +/- 0. 002
- X,y,z axis measuring system: incremental encoder
- B-axis measuring system: absolute encoder
- Spindle nose distance - pallet centre mm 150-900h
- Spindle axis distance - pallet surface: 75-925 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
