DOOSAN Lynx 2100B

Photo Gallery

DOOSAN - Lynx 2100BGB-TUR-DOO-2016-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan Lynx 2100B Lathe

Show in original language

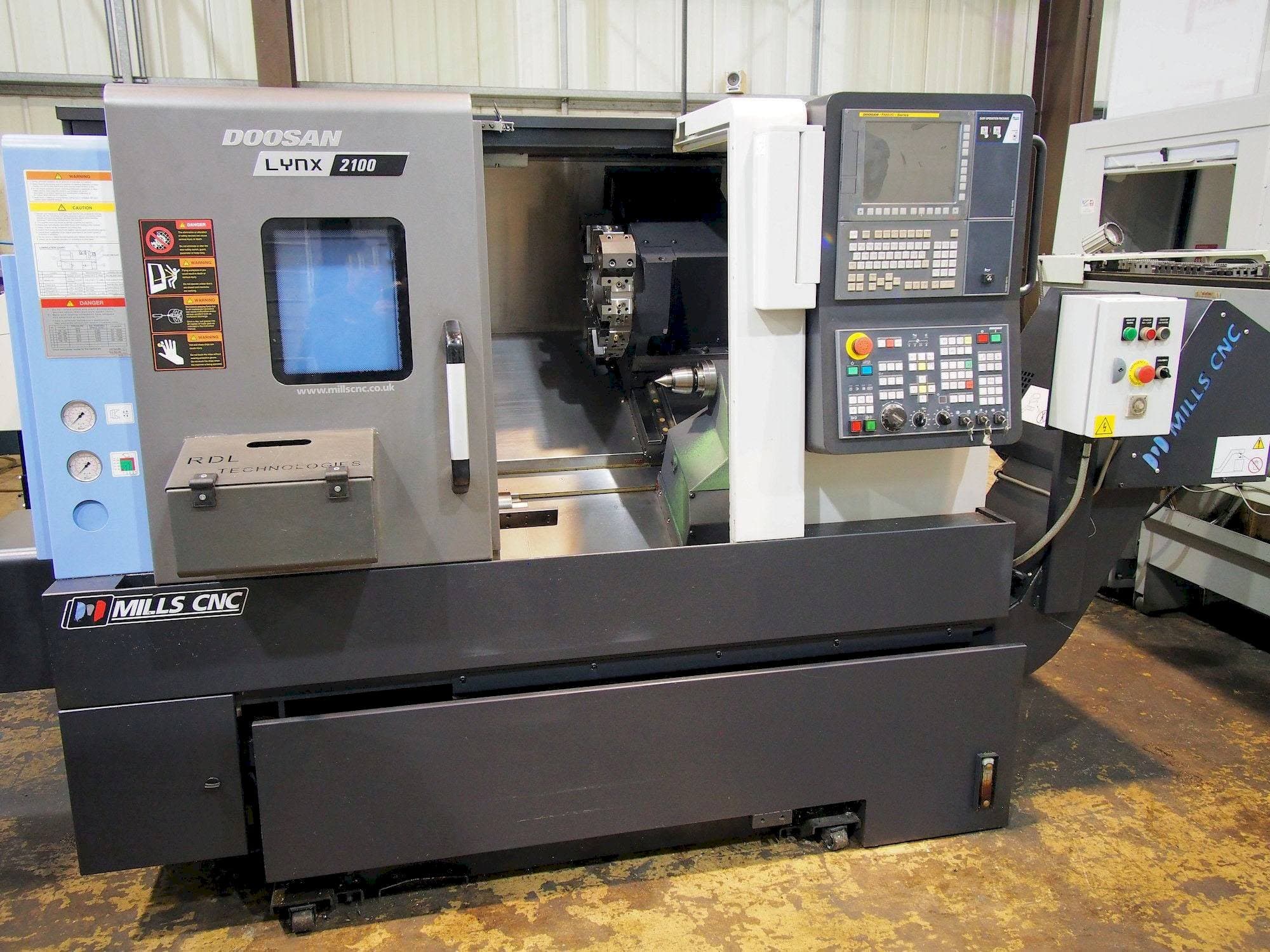

This Doosan Lynx 2100B Lathe was built in 2016 in South Korea. It is equipped with a FANUC I Series control unit. This machine can work with a speed up to 4500 rpm. It includes a tool setter, an internal spindle, a coolant, a tailstock, a low volt light, 3 jaw chuck, collets, collet chuck, parts catcher, and a USB Port.

Overview

brand: DOOSAN
year: 2016
MODEL: Lynx 2100B
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DOOSAN Lynx 2100B

Control Unit

Control Brand: FANUC
Control Model: I Series

Dimensions

Machine Weight: 2750 kg

Movement

X-axis Travel: 205 mm

Technical Specification

Number of Tools: 12
Spindle Power: 15 kW
Spindle Speed: 4500 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good conditions

Technical Machine Benefits

Swing 600 mm
Swing over carriage 400 mm
Bar capacity 65 mm
Chuck size 200 mm
Max. Cutting diameter 350 mm
Max. Cutting length 330 mm
Tailstock quil diameter 65 mm
Barfeed magazine
Tool setter, internal spindle, coolant, tailstock, low volt light, 3 jaw chuck, collets, collet chuck, parts catcher, usb port

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
