DOOSAN Lynx 220 B

Photo Gallery

DOOSAN - Lynx 220 BRO-TUR-DOO-2011-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

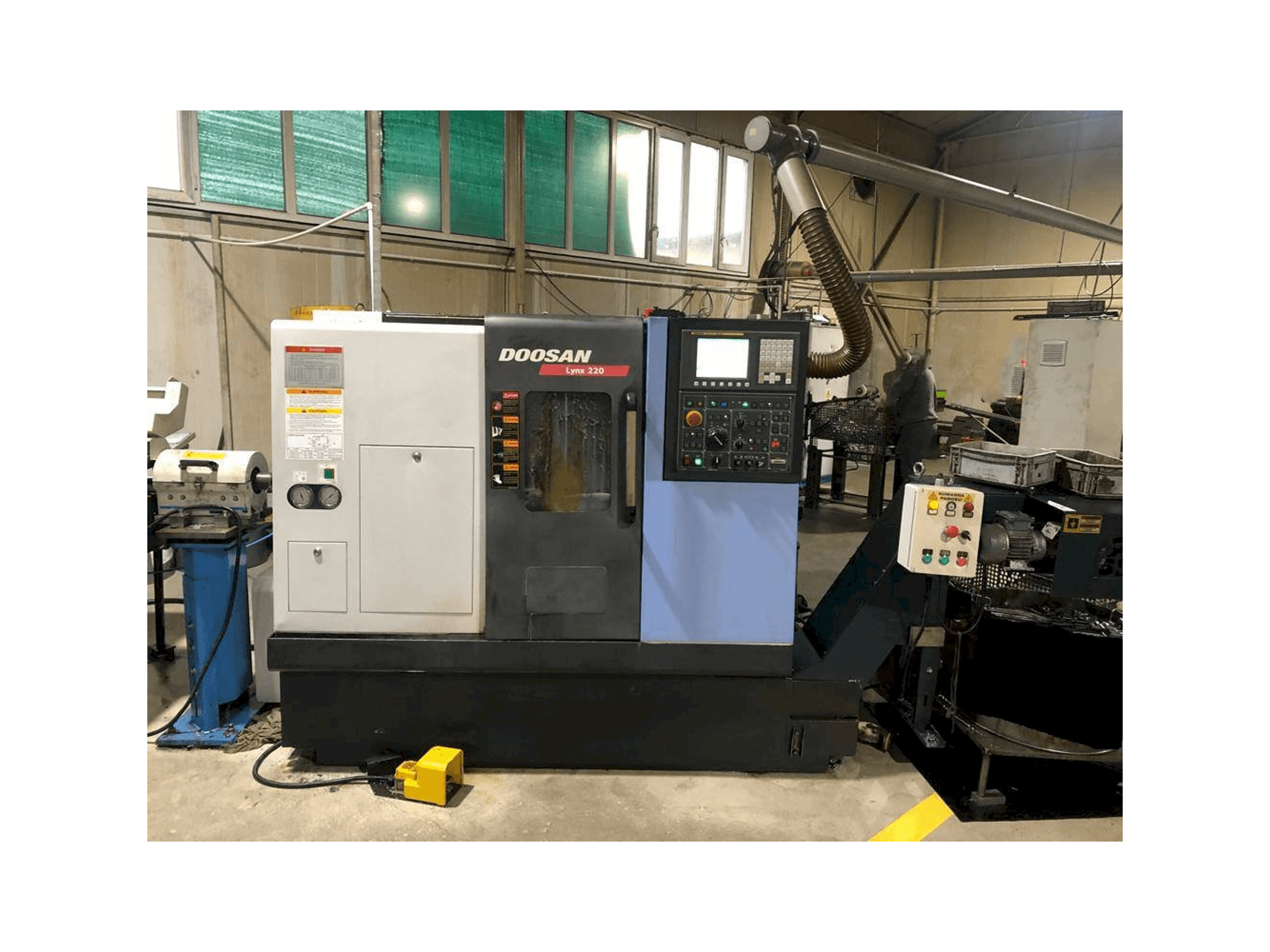

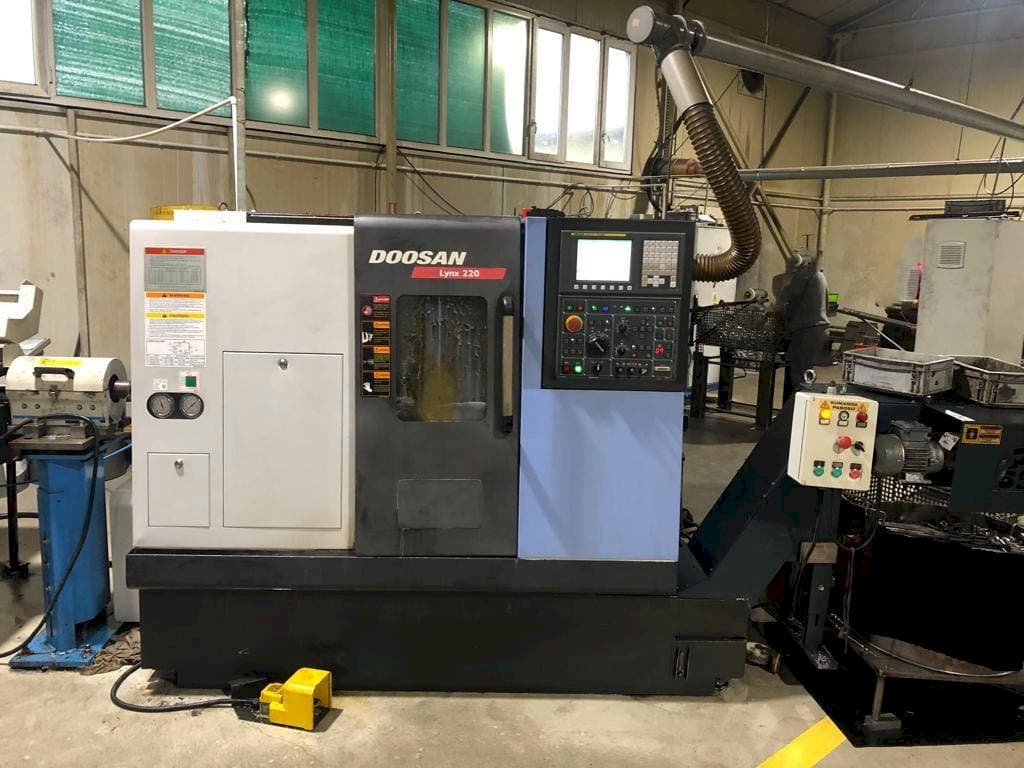

Doosan Lynx 220 B Lathe

Show in original language

This Doosan Lynx 220 B Lathe was built in the year 2011 in Korea. It has been operative for 47646 hours, from which 15678 are cutting hours. It is equipped with a FANUC I-Series Control unit. This machine spindle can operate with a speed up to 5000 rpm.

Overview

brand: DOOSAN
year: 2011
MODEL: Lynx 220 B
production hours: 15678
application type: Turning
Location: Romania
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DOOSAN Lynx 220 B

Control Unit

Control Brand: FANUC
Control Model: I-SERIES

Dimensions

Machine Depth: 1620 mm
Machine Height: 1600 mm
Machine Weight: 3100 kg

Movement

X-axis Travel: 175 mm
Z-axis Travel: 330 mm

Technical Specification

Spindle Power: 11 kW
Spindle Speed: 5000 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Swing over bed 510mm
Swing over carriage 290mm
Recom. Turning diam 210 mm
Maximum turning diameter 320 mm
Bar capacity working diam 51 mm
Maximum cutting length 305 mm
Spindle nose a2-6
Spindle bearing diam 100 mm
Spindle trhough hole diameter 61 mm
Tailstock quill diam 65 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
