DOOSAN - LYNX 300MKR-TUR-DOO-2020-00002

Name: DOOSAN LYNX 300M
Brand: DOOSAN
SKU: KR-TUR-DOO-2020-00002
Price: 62500 EUR
Availability: InStock

62,500 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN LYNX 300M For Sale | gindumac.com

Show in original language

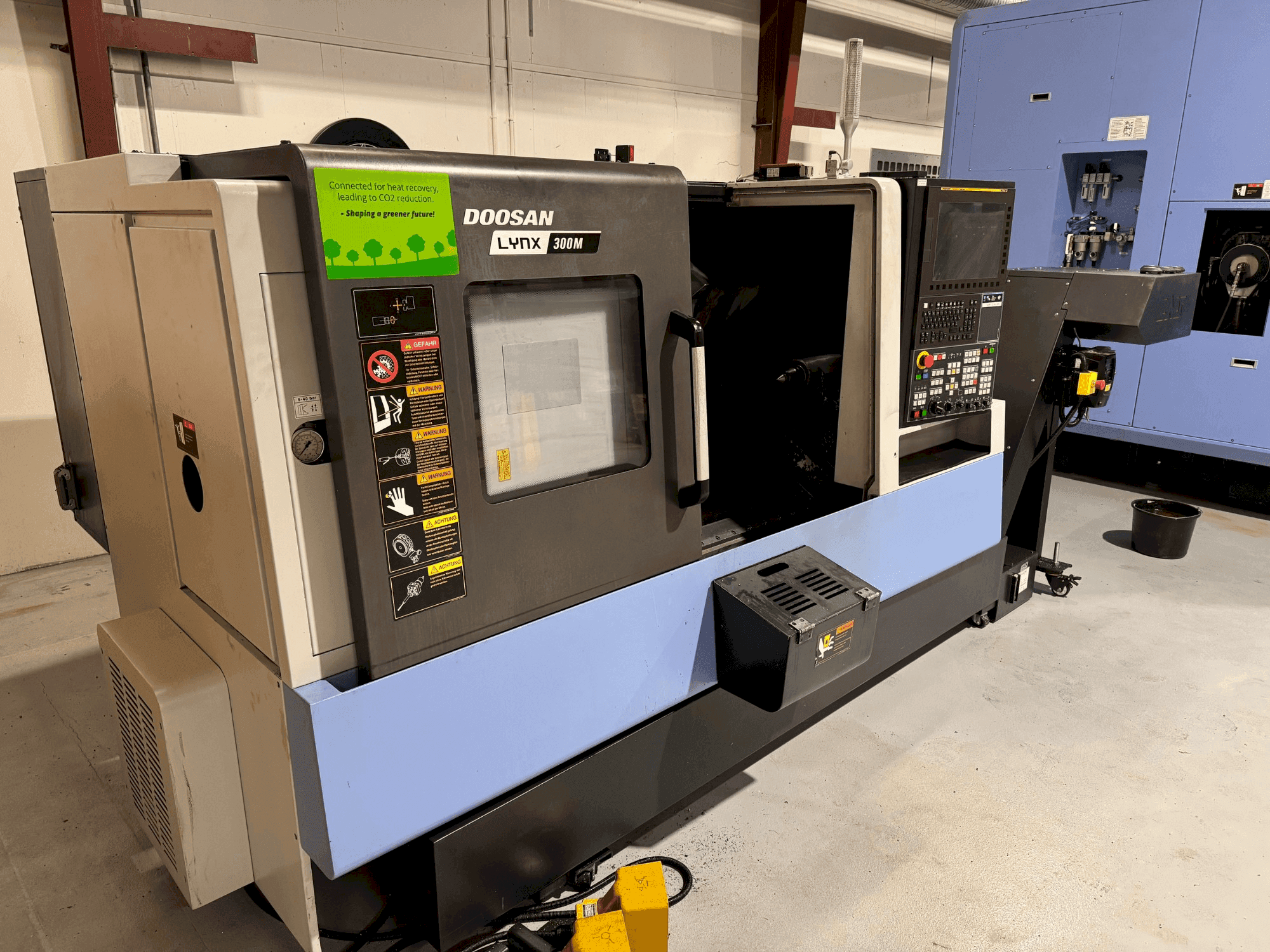

This DOOSAN LYNX 300M was manufactured in 2020. It features a maximum swing over bed of 651 mm, turning diameter of 461 mm, and a turning length of 712 mm. The main spindle supports speeds up to 3,500 rpm with a spindle bore of 86 mm. It includes a 12-position turret and rapid traverse rates of 24/30 m/min in X- & Z-axes and Milling function with the C axis. Consider the opportunity to buy this DOOSAN LYNX 300M horizontal turning machine. Contact us for more information. Located in Denmark.

Overview

brand: DOOSAN
year: 2020
MODEL: LYNX 300M
application type: Turning
Location: Denmark
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DOOSAN LYNX 300M

General Data

Measurements width: 1785 mm
Measurements depth: 3035 mm
Measurements height: 1715 mm
Machine weight: 4050 kg

Control Unit

Brand: FANUC

Main drive

Spindle speed range: 3500 rpm 1/MIN
Spindle motor power: 15/11 kW
Spindle bore: 86 mm

Movement

X-AXIS Movement: 255 mm
X-AXIS Rapid traverse: 24 m/min
Z-AXIS Movement: 790 mm
Z-AXIS Rapid traverse: 30 m/min

Workpiece

Workpiece drm over bed: 651 mm

Additional Information

Additional equipment

Coolant tank capacity: 160 liters
Tail Stock Tailstock travel: 775 mm
Tailstock quill diameter: 80 mm
Tailstock quill travel: 120 mm
Morse taper: MT4

Machine Benefits

Qualitative Machine Benefits

Milling function / c axis

Technical Machine Benefits

Spindle nose: a2-8”
Spindle bearing diameter: 120 mm
Max. Turning diameter: 461 mm
Max. Turning length: 712 mm
Max. Bar diameter: 76 mm
Live tool motor: 5. 5/1. 1 kw / 47 nm

Extra Information

Turret Number of tool positions: 12 Tool shank size for turning: 25x25 mm Tool shank size for boring: Ø40 mm Collet type for live tools: ER25 Turret indexing time: 0.31 sec Rotating drive speed: 5000 rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
