DOOSAN - Mynx NM 410

2006

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

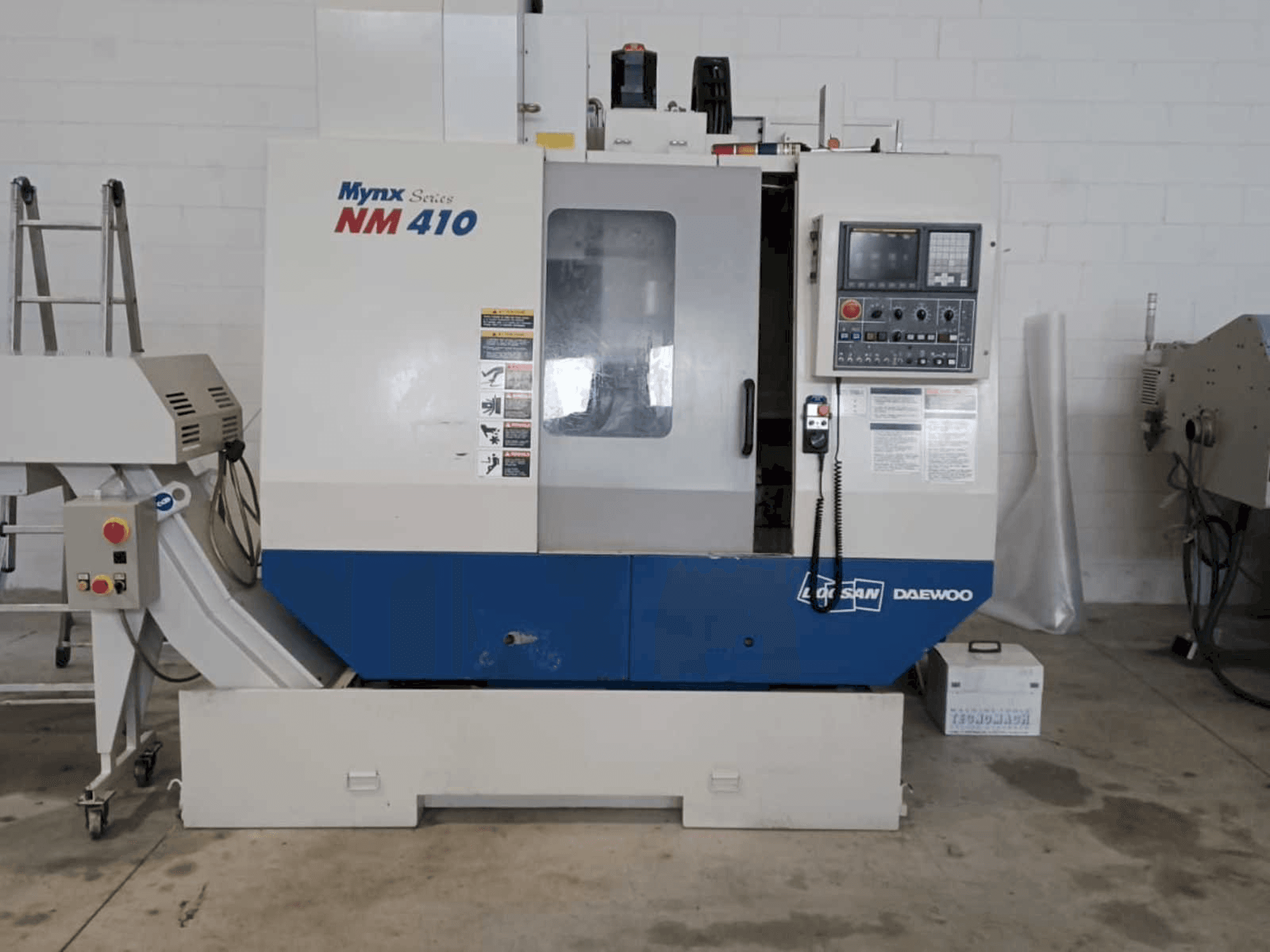

Doosan Mynx NM 410 Vertical Machining center

Show in original language

This Doosan Mynx NM 410 Vertical Machining center was manufactured in the year 2006 in Korea. It is equipped with a FANUC Series 0i-MB control unit and has 3 axis. The machine has a spindle speed of 8000 rpm.

Overview

brand: DOOSAN
year: 2006
MODEL: Mynx NM 410
application type: Milling
Location: Italy
machine type: Machining centers (vertical)
availability: Sold
control unit brand: FANUC
GINDUMAC ID: IT-MIL-DOO-2006-00001

Technical Information

General Data

Machine weight: 2745 kg

Control Unit

Brand: FANUC
Model: Series 0i-MB

Main drive

Spindle speed range: 8000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 820 mm
Y-AXIS Movement: 410 mm
Z-AXIS Movement: 510 mm

Table

Outer length: 1000 mm
Outer width: 450 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Capacity: distance spindle nose – table min/max 150 - 660 mm
- - Distance spindle - column 450 mm
- - Iso 40 spindle connection
- - Feeds : rapid x/y/z axes 30/30/24 m/min
- - Tool changer: tool magazine 20 pos.
- - Max tool weight : 8kg.
- - Max user size diameter/length 90/250 mm
- - Accessories present: carpet chip conveyor - a. P. Through spindle –
- - Remote electronic handwheel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
