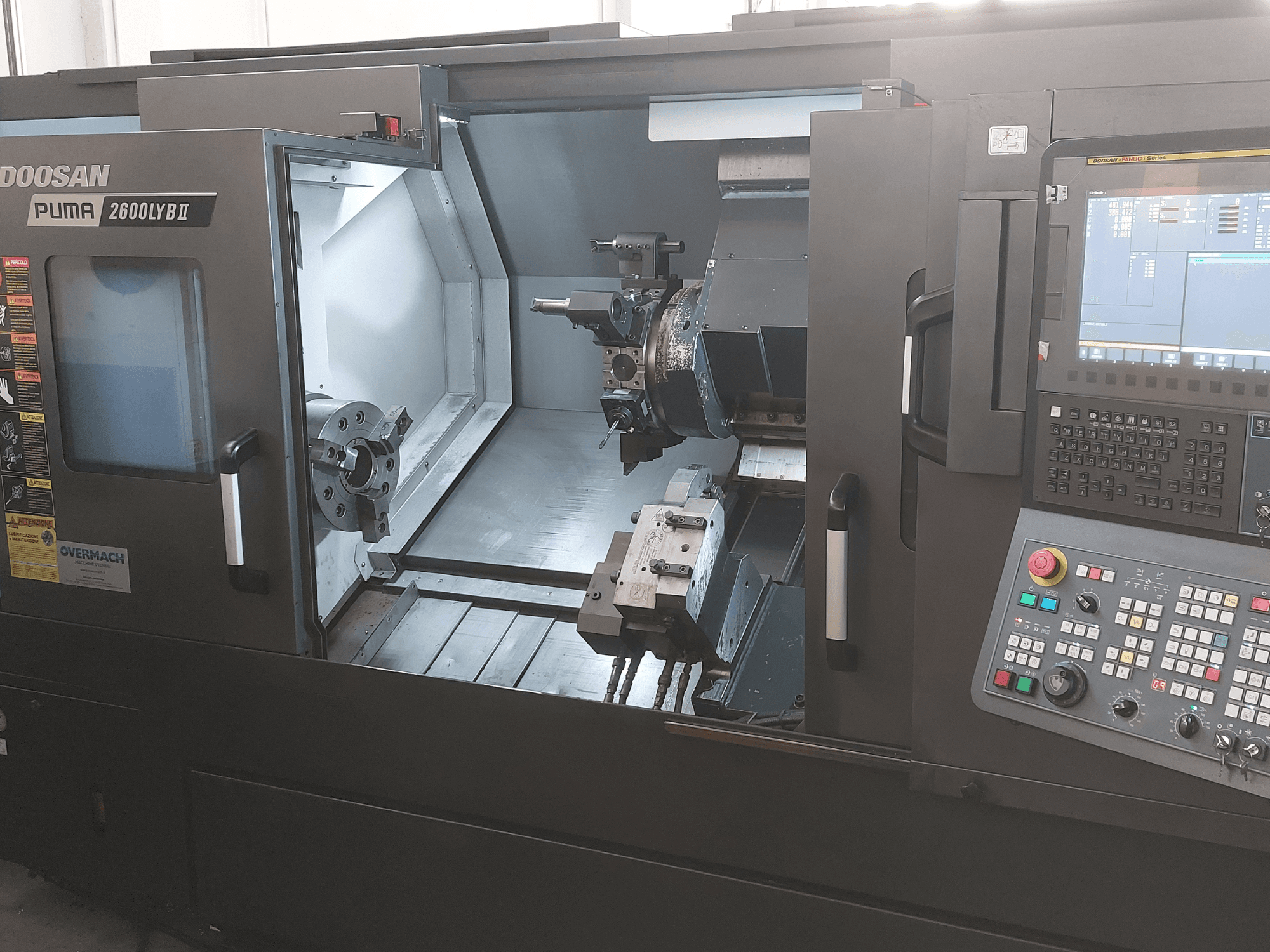

This 4-axis DOOSAN Puma 2600 LYB II was manufactured in 2021. It features a maximum turning diameter of 376 mm and a turning length of 1,350 mm. The machine includes a 12-station turret, a live tailstock, and a steady rest with a diameter range from 40 mm to 200 mm. If you are looking to get high-quality turning capabilities, consider the DOOSAN Puma 2600 LYB II horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: DOOSAN
- year: 2021
- MODEL: Puma 2600 LYB II
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
Technical Information - DOOSAN Puma 2600 LYB II
Dimensions
- Machine Height: 2163 mm
- Machine Length: 4438 mm
- Machine Weight: 7500 kg
- Machine Width: 2005 mm
Movement
- Number of Axes: 4
- X-axis Travel: 260 mm
- Y-axis Travel: 105 mm
- Z-axis Travel: 830 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Spindle Power: 22 kW
- Spindle Speed: 2800 RPM
Additional Information
Capacity
Swing over bed: 780 mm
Swing over carriage: 630 mm
Recommended turning diameter: 315 mm
Max turning diameter: 376 mm
Max turning length: 1,350 mm
Bar capacity: 102–103 mm
Main spindle
Nose: ASA A2-11
Bearing diameter: 160 mm
Through-spindle bore: 115 mm
C-axis indexing accuracy: 0.001°
Sub-spindle (if equipped)
Speed: 4,500 rpm
Nose: ASA A2-5
Bore: 62 mm
Turret
Stations: 24 (option installed; standard 12)
Tool size: 25 mm
Boring bar capacity: 50 mm
Indexing time: 0.15 s
Live tool speed: 5,000 rpm
Axes
C rotation: 360°
Rapid traverse
X: 30 m/min
Z: 30 m/min
C: 10 m/min
Tailstock
Type: Live tailstock
Quill diameter: 100 mm
Taper: MT5
Quill stroke: 100 mm
Motor / Power
Live tool motor: 7.5 / 1.5 kW
Feed motor: 3.0 / 4.0 / 3.0 kW
Coolant pump motor: 0.4 kW
Electrical capacity: 46.40 kVA
Additional equipment
315 mm chuck
MORARI steady rest, 40–200 mm diameter range
Three motorized radial Eppinger live toolholders/spindles
Tool presetting system (tool presetter)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
