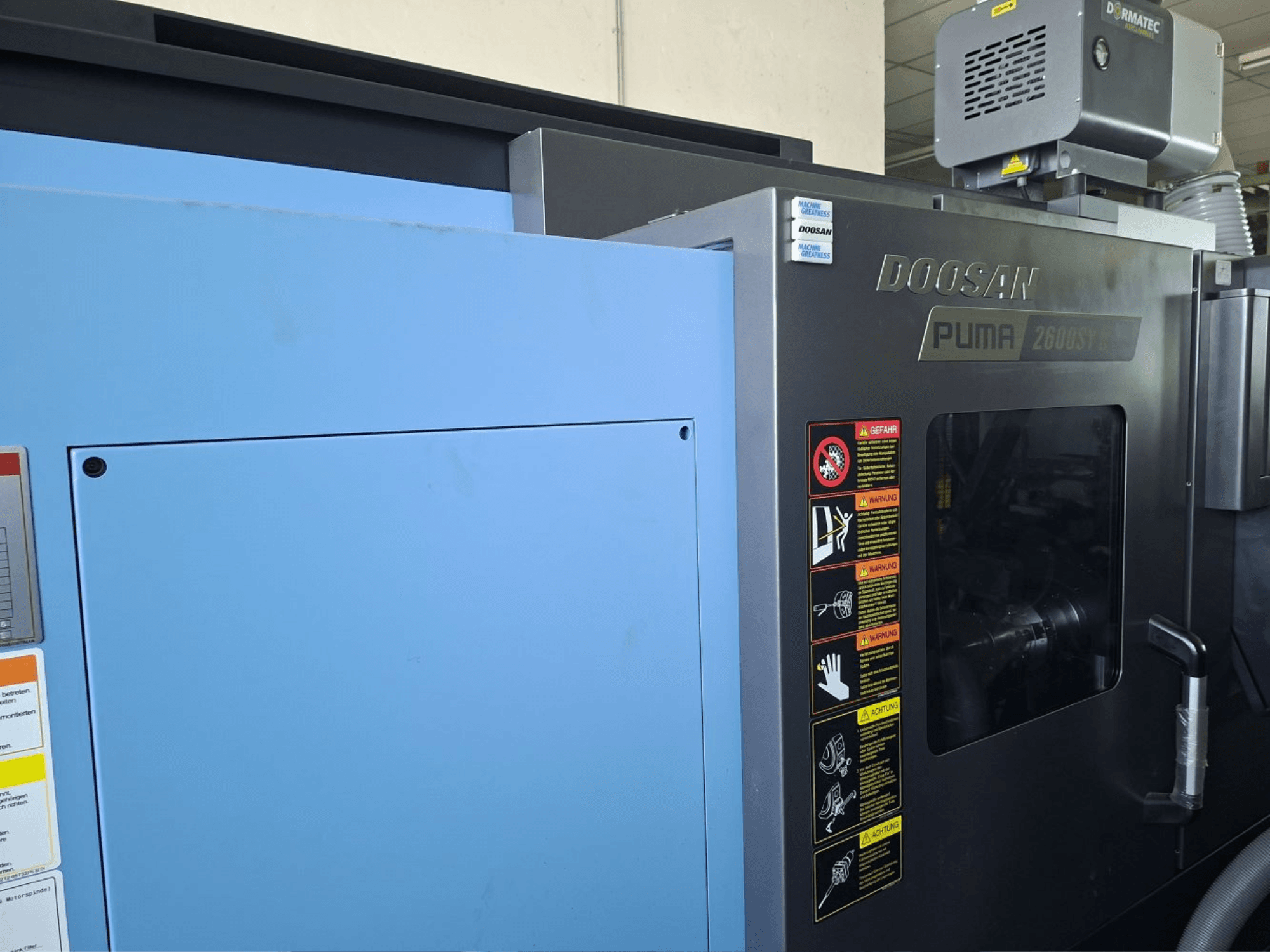

This 6-axis DOOSAN PUMA 2600 SY II was manufactured in 2022. It features a maximum turning diameter of 255 mm and a turning length of 760 mm. The machine is equipped with a 24-station tool turret and driven tools, providing versatile machining capabilities. If you are looking to get high-quality turning capabilities, consider the DOOSAN PUMA 2600 SY II horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: DOOSAN
- year: 2022
- MODEL: PUMA 2600 SY II
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - DOOSAN PUMA 2600 SY II
Control Unit
- Control Brand: SIEMENS
Dimensions
- Machine Height: 1915 mm
- Machine Length: 3857 mm
- Machine Weight: 6550 kg
- Machine Width: 1985 mm
Movement
- Number of Axes: 6
- X-axis Travel: 260 mm
- Y-axis Travel: 105 mm
- Z-axis Travel: 830 mm
Technical Specification
- Counter Spindle: Yes
- Driven Tools: Yes
- Spindle Power: 22 kW
- Spindle Speed: 4000 RPM
Additional Information
Siemens S828D Control touchscreen with ShopTurn 15 inch display
6-axis configuration with driven tools, Y-axis and sub-spindle
Main and sub-spindle as built-in motor spindles
Cylindrical roller bearing, accuracy class P4, lifetime lubrication
Main spindle chuck diameter 255 mm
Sub-spindle chuck diameter 175 mm
Hollow clamping device, hydraulically actuated
Hollow clamping cylinder
24-station tool turret (BMT65P interface)
Automatic tool measuring arm, electrically swiveling
Dynamic spindle speed control
Counter spindle with tailstock function
Coolant flow max 448 L per minute
Oil flow 336 L per minute
Electronic safety clutch for X and Z axes
Working area swing over bed 780 mm
Swing over cross slide 630 mm
Max turning diameter 255 mm
Max turning length 760 mm
Bar capacity 76 mm
Max workpiece weight including chuck 250 kg
Main spindle bore 91 mm
Max torque approx 706 Nm
Sub-spindle bore 52 mm
Spindle speed up to 6000 rpm
Motor power approx 18.5 kW
Torque approx 118 Nm
C-axis main spindle: 360° resolution 0.001°, speed 200 rpm, torque approx 1508 Nm
C-axis sub-spindle: 360° resolution 0.001°, speed 200 rpm, torque approx 121 Nm
Turret: 12 driven tool stations out of 24
Max driven tool speed 5000 rpm
Driven tool power approx 7.5 kW
Driven tool torque approx 50 Nm
Rapid traverse X and Z approx 30 m/min; Y approx 10 m/min
Bed angle 30°
Coolant tank capacity approx 220 liters
Coolant pump pressure 7 bar
Hydraulic tank approx 20 liters
Central lubrication automatic system
Electrical connection AC 380 V, 3-phase, 50/60 Hz
Total power approx 69.27 kVA
Additional equipment
LNS hinged belt chip conveyor, right side, without filtration
Dormatec AF-30P oil mist extraction system
Boring bar holders, diameter 50 mm to 25 mm
Double boring bar holder, diameter 32 mm
Reducing sleeves set: 40/10, 40/12, 40/16, 40/20, 40/25, 40/32
U-drill reducing sleeves: 40/20, 40/25, 40/32
Two Eppinger driven tool holders BMT65P, straight, with external cooling
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
