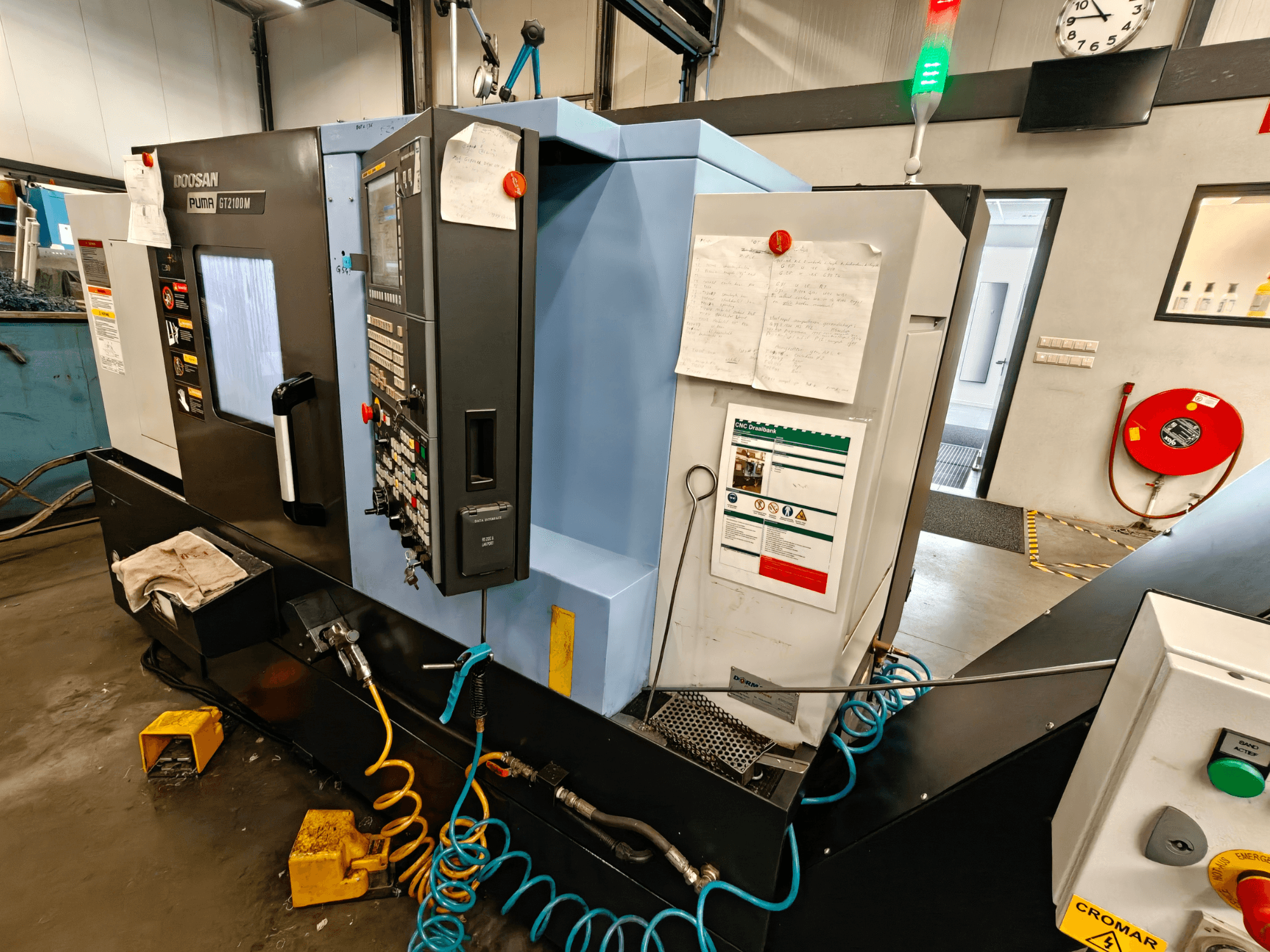

This 3-axis DOOSAN Puma GT 2100M was manufactured in 2017. It features a maximum turning diameter of 300 mm and a turning length of 513 mm. The machine is equipped with 12 tool stations and offers rapid traverse speeds of 24 m/min in the X-axis and 30 m/min in the Z-axis. If you are looking to get high-quality turning capabilities, consider the DOOSAN Puma GT 2100M horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: DOOSAN
- year: 2017
- MODEL: Puma GT 2100M
- production hours: 2896
- application type: Turning
- Location: Netherlands
- machine type: Horizontal Turning Machine
- Available from: 31/07/2026
- control unit brand: FANUC
Technical Information - DOOSAN Puma GT 2100M
Control Unit
- Control Brand: FANUC
- Control Model: i-series
Dimensions
- Machine Height: 1700 mm
- Machine Length: 2834 mm
- Machine Weight: 3600 kg
- Machine Width: 1628 mm
Movement
- Number of Axes: 3
- X-axis Travel: 230 mm
- Z-axis Travel: 580 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: Yes
- Spindle Speed: 4500 RPM
Additional Information
Swing over bed: 600 mm
Swing over saddle: 390 mm
Recommended turning diameter: 210 mm
Max. turning diameter: 300 mm
Max. turning length: 513 mm
Bar working diameter: 65 mm
Spindle nose: ASA A2-6
Spindle bearing diameter (front): 110 mm
Spindle through-hole diameter: 76 mm
Minimum spindle indexing angle (C-axis): 0.001°
Number of tool stations: 12
OD tool size: 25 mm
Boring bar diameter: 40 mm
Indexing time (1st swivel time): 0.15 s
Rotary tool spindle speed: 5,000 rpm
Rapid traverse (X-axis): 24 m/min
Rapid traverse (Z-axis): 30 m/min
Quill diameter: 80 mm
Quill bore taper (live): MT4
Quill travel: 80 mm
Electric power supply: 30.43 kVA
Additional equipment
None specified (no robots, automation or bar feeder listed)
Tools excluded; available at additional cost
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
