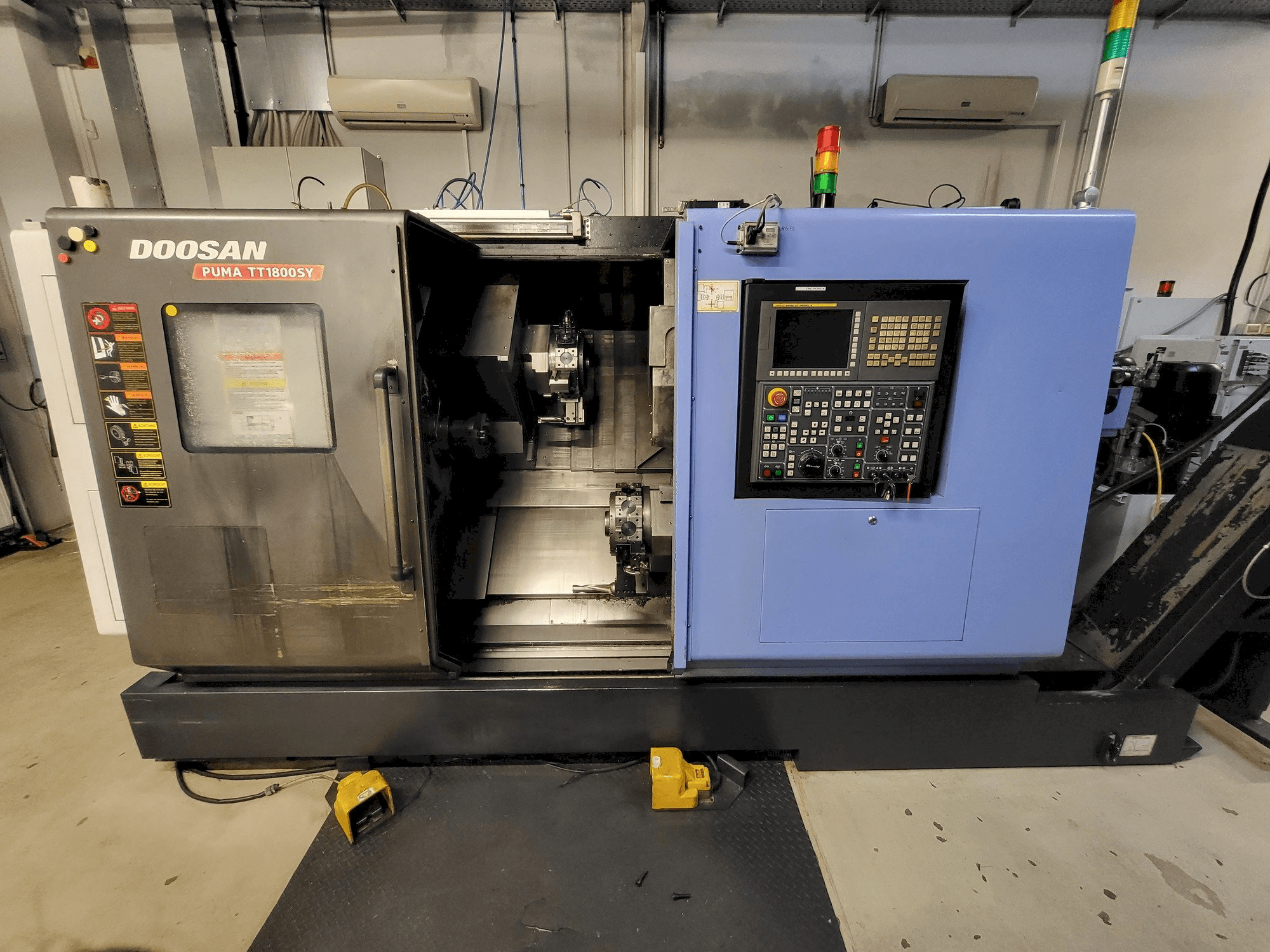

Front view of DOOSAN PUMA TT1800SY  machine

DOOSAN PUMA TT1800SY

DOOSAN - PUMA TT1800SY

2011

80,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This DOOSAN PUMA TT1800SY lathe was made in the year 2011. It is equipped with a FANUC 31i-Model A control unit. The machine has a spindle speed of 5000 rpm.

Overview

  • brand: DOOSAN
  • year: 2011
  • MODEL: PUMA TT1800SY
  • application type: Turning
  • Location: Slovenia
  • machine type: Lathe
  • availability: Immediately
  • control unit brand: FANUC
  • GINDUMAC ID: SI-TUR-DOO-2011-00001

Technical Information

General Data

  • Measurements width: 3905 mm
  • Measurements depth: 2070 mm
  • Measurements height: 2080 mm
  • Machine weight: 9000 kg

Control Unit

  • Brand: FANUC
  • Model: 31i-Model A

Main drive

  • Number of spindles: 2
  • Spindle speed range: 5000 1/MIN

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - 210 mm diameter 3-jaw chuck main spindle
      • - 170 mm diameter 3-jaw chuck 2nd spindle
      • - Spindle through hole: 76 mm diameter
      • - Max. Distance between spindle noses: 980 mm
      • - Swing: 230 mm
      • - Bar capacity: 65 mm
      • - Turret positions: 12 + 12
      • - X1 axis: 165 mm, x2 axis: 190 mm
      • - Z1 axis: 700 mm, z2 axis: 720 mm
      • - Y axis: 100 (± 50) mm, b axis: 770 mm
    • Qualitative Machine Benefits:
      • - Maximum turning diameter: 230 mm
      • - Maximum cutting length: 230 mm
      • - Milling rpm: 5000rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
