Dugard LUNAN 500A

Show in original language

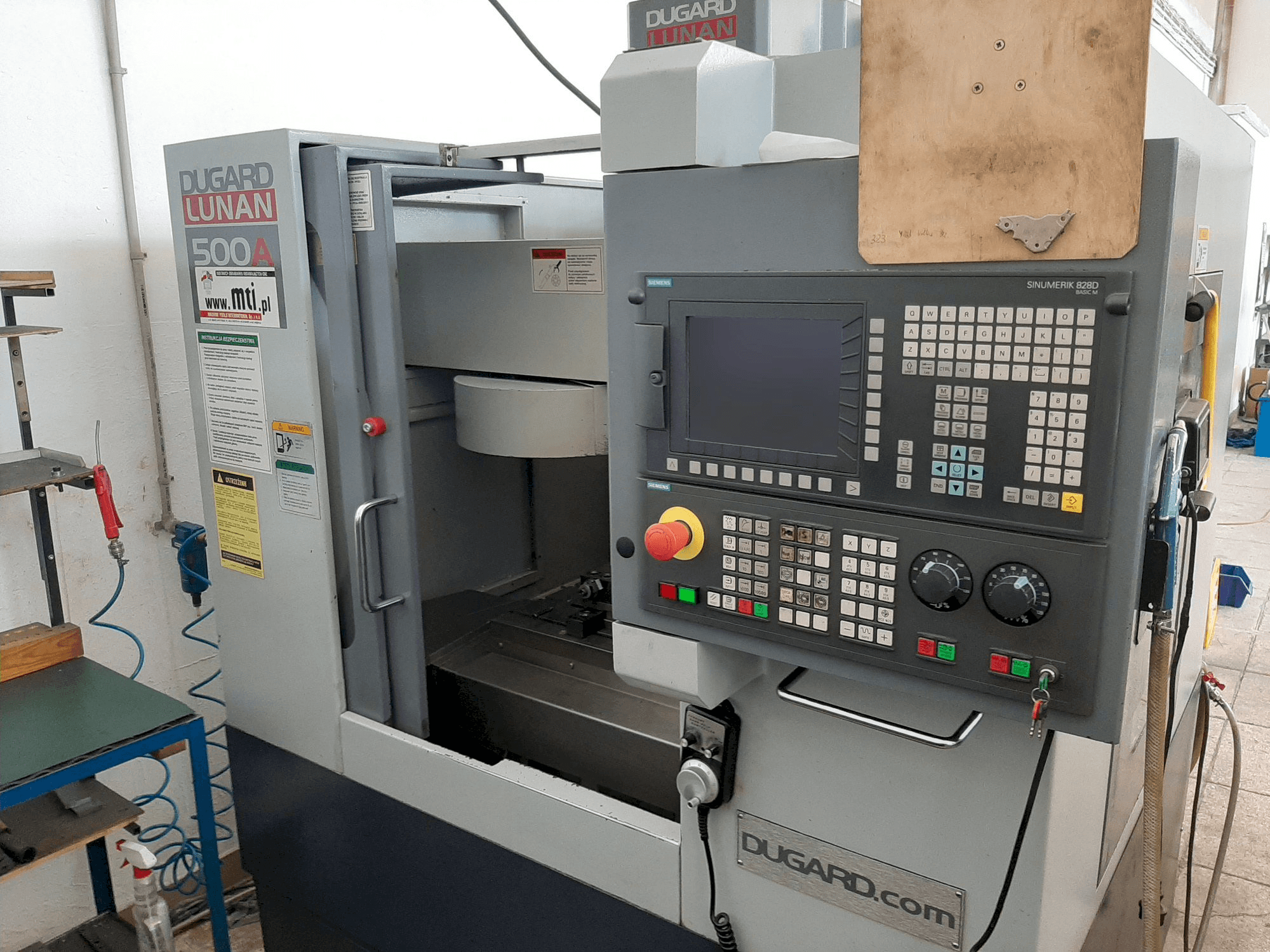

This Dugard LUNAN 500A vertical machine center was made in 2013. It is operated through a SIEMENS Sinumerik 828D control unit. This 3 axis machine has a spindle center to column of 360 mm and a table size of 800 x 320 mm. It is in very good working condition and with its full documentation available.

Overview

brand: Dugard
year: 2013
MODEL: LUNAN 500A
application type: Milling
Location: Poland
machine type: Machining centers (vertical)
availability: Sold
control unit brand: SIEMENS
GINDUMAC ID: PL-MIL-DUG-2013-00001

Technical Information

General Data

Measurements width: 1600 MM
Measurements depth: 1840 MM
Measurements height: 2110 mm
Machine weight: 2500 kg

Control Unit

Brand: SIEMENS
Model: Sinumerik 828D

Main drive

Spindle motor power: 5.5 kW
Tool taper: BT40
Number of axis: 3

Movement

X-AXIS Movement: 500 mm
X-AXIS Rapid traverse: 18000 mm/min
Y-AXIS Movement: 320 mm
Y-AXIS Rapid traverse: 18000 mm/min
Z-AXIS Movement: 400 mm
Z-AXIS Rapid traverse: 18000 mm/min

Table

Outer length: 800 MM
Outer width: 320 mm
Table load: 300 kg

Tools

Max weight: 5 kg
Max tool diameter: 100 mm
Max tool length: 200 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 25 KVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle nose to table 120-520 mm
- - Spindle center to column 360 mm
- - Umbrella type atc 10 tools
- - Tool change time 6 secs (umbrella)
- - Positioning accuracy x/y/z axis 0. 02 mm, 0. 012 mm
- - Re-positioning accuracy x/y/z axis 0. 012 mm, 0. 008 mm
Qualitative Machine Benefits:
- - The machine is in very good working condition.
- - Today it is out of the production.
- - Full documentation available.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
