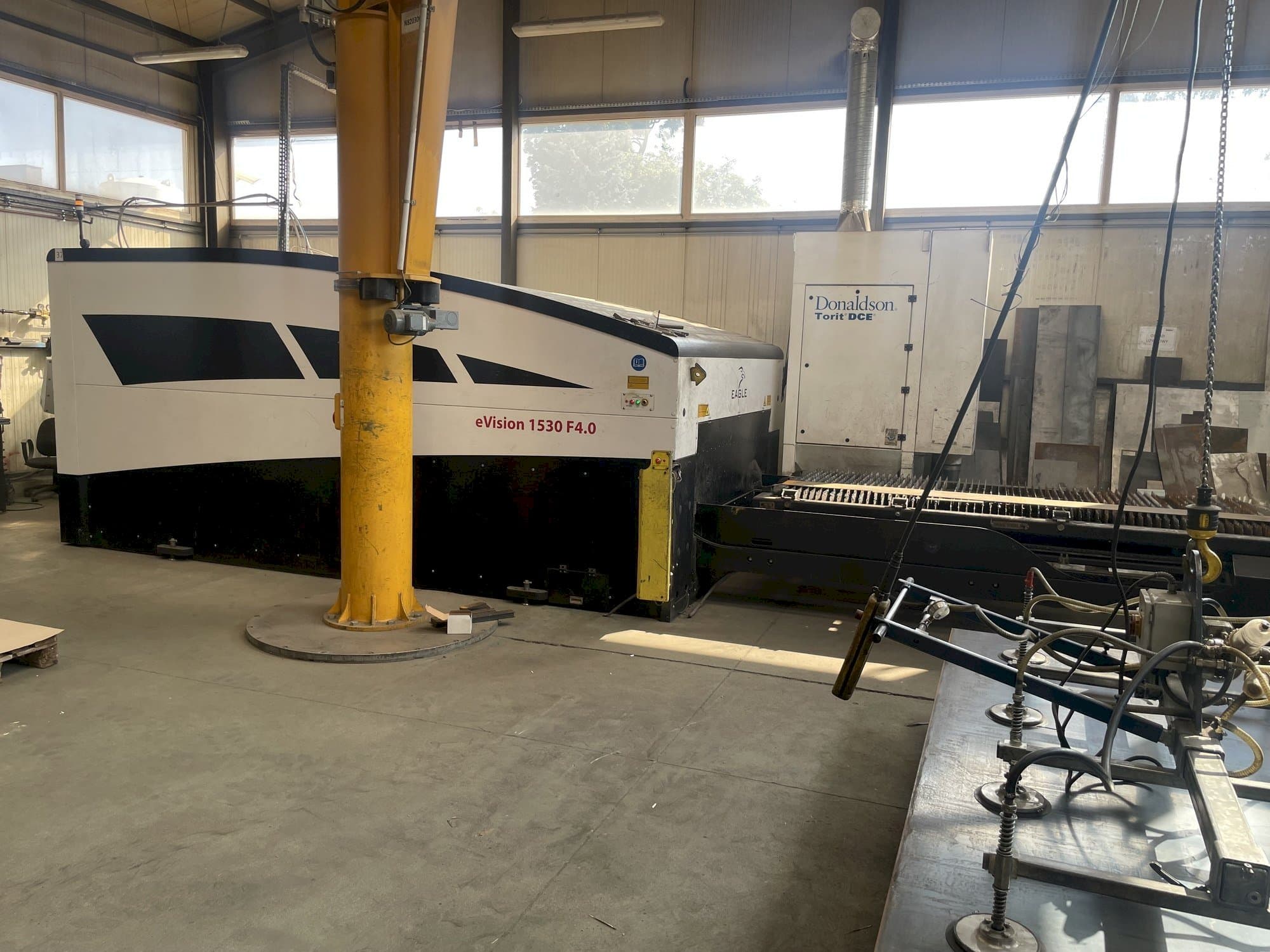

Front view of EAGLE eVision 1530 F4.0 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

EAGLE eVision 1530 F4.0

Photo Gallery

EAGLE - eVision 1530 F4.0PL-LAS-EAG-2016-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
EAGLE eVision 1530 F4.0 Fiber Laser Cutting Machine

Show in original language

This EAGLE eVision 1530 F4.0 Fiber Laser Cutting Machine was manufactured in Poland in 2016. This laser cutter has a power output of 4 kW (4000 W) and is designed for cutting steel up to a thickness of 20 mm, stainless steel up to 20 mm, aluminum up to 15 mm, and copper up to 6 mm. The machine's working area along the X, Y, and Z axes is 3000 x 1500 x 120 mm, respectively. The laser cutter is equipped with CNC (Computer Numerical Control) and magnetic linear drive motors from Beckhoff.

Overview

brand: EAGLE
year: 2016
MODEL: eVision 1530 F4.0
production hours: 18213
application type: Cutting
Location: Poland
machine type: Fiber Laser Cutting Machine
control unit brand: BECKHOFF

Technical Information - EAGLE eVision 1530 F4.0

General Data

Measurements width: 9800 mm
Measurements depth: 3800 mm
Measurements height: 2300 mm
Machine weight: 18000 kg

Control Unit

Brand: BECKHOFF

Main drive

Laserpower: 4 kw

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1500 mm
Z-AXIS Movement: 120 mm

Max Material thickness

Steel: 20 mm
Stainless steel: 20 mm
Aluminum: 15 mm

Media

Main electronic connection: 400V/50 Hz
Power consumption: 43 kVA
Air pressure: 6 bar

Additional Information

Machine Benefits

Qualitative Machine Benefits

The machine has undergone replacement of:
Modules on 01. 2023
Cutting head on 01. 2023
Fiber optic on 01. 2023
Internal gas installation on 01. 2023
Full documentation available

Technical Machine Benefits

Maximum speed, simultaneously x, y: 300 m/min
Maximum cutting thickness, copper: 6 mm
Positioning accuracy: 0. 05 mm
Repeatability: 0. 03 mm
Cutting accuracy: 0. 1 mm
Acceleration for x and y axes: 2 g
Nitrogen pressure: 25 bar, oxygen pressure: 10 bar, drive: magnetic linear motors by beckhoff

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
